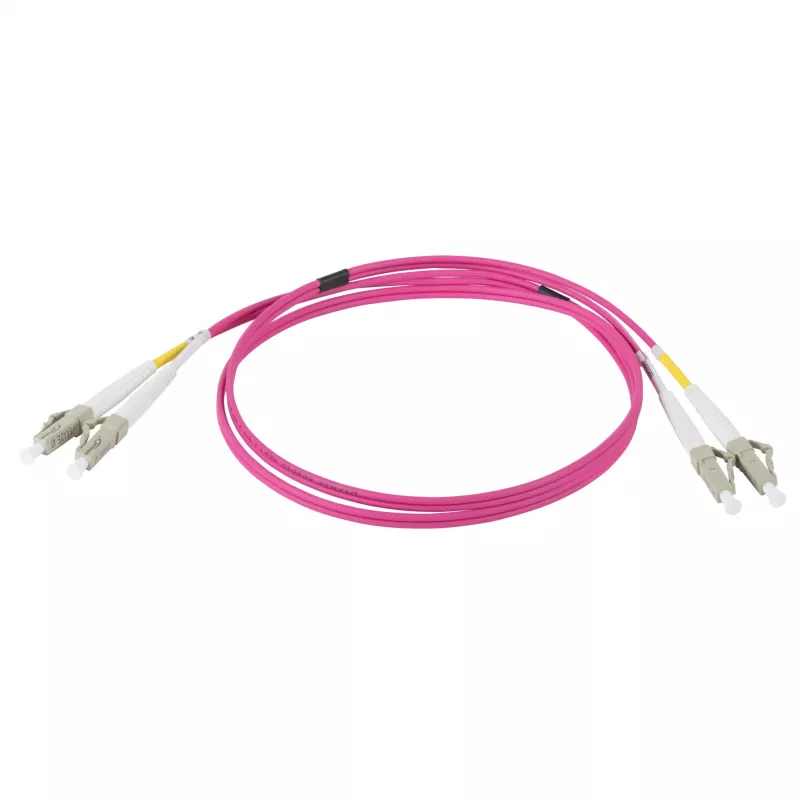

EFB Electronics duplex jumper LC-LC 50/125 OM4 LSZH erika violet 2,0mm 7,5m

The EFB Electronics Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in multimode OM4 networks. With a length of 7.5 meters and a compact 2.0mm diameter, this cable is ideal for data center, enterprise, and telecommunications applications where space and performance are critical.

Advantages

This jumper offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation and reliable connections. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic smoke and corrosive gases in case of fire. The Erika violet color aids in easy identification and cable management.

Suitable for

• Data center patching and cross-connects
• Enterprise network infrastructure
• Telecommunications and video/analog signal transmission
• High-speed 10/40/100 Gbps Ethernet applications over OM4 multimode fiber

Key specifications

• Connector type: LC Duplex to LC Duplex
• Fiber type: Multimode OM4 (50/125 µm)
• Cable length: 7.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Erika violet
• Individual cable diameter: 2.0 mm
• Number of fibers: 2 (Duplex)
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 30 dB
• Polarity: A-B (Crossed)
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Attenuation at 850nm: ≤ 2.3 dB/km
• Attenuation at 1300nm: ≤ 0.6 dB/km
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM4-compatible transceivers and ensure proper cleaning of connectors before installation. This cable is suitable for both horizontal and backbone cabling in structured cabling systems.
