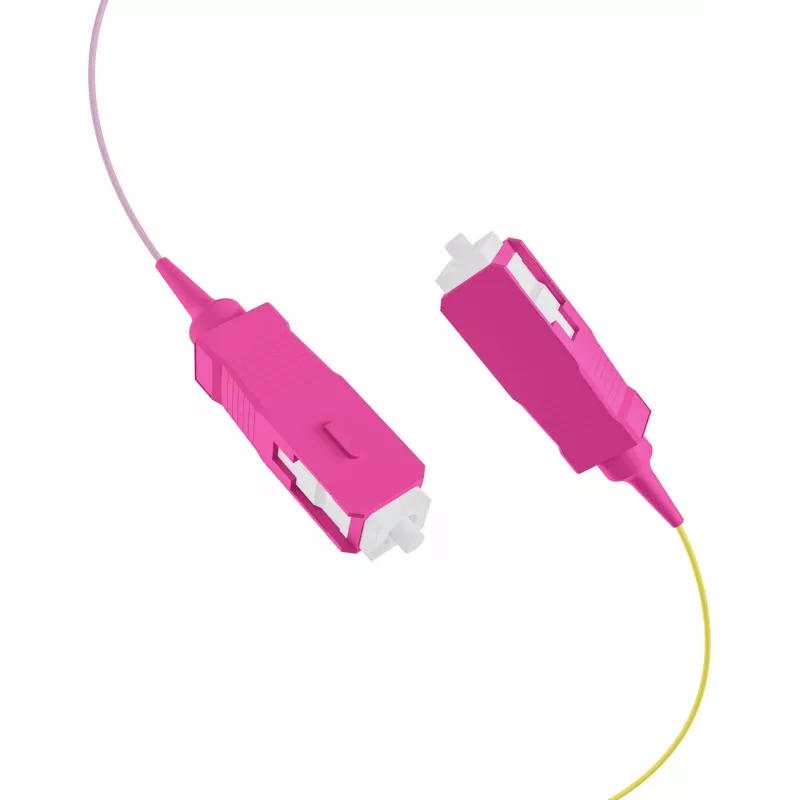

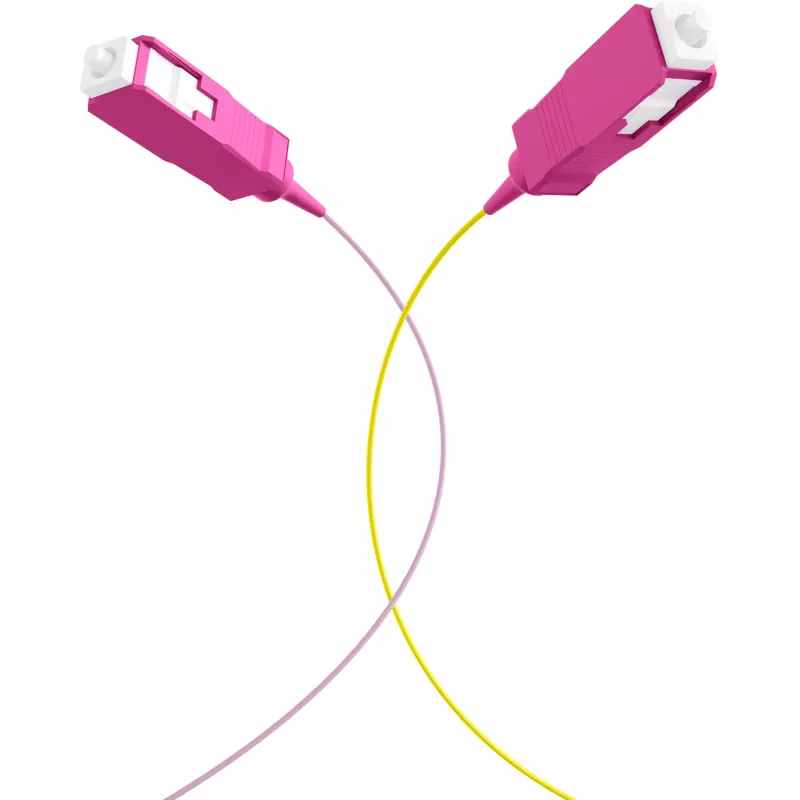

EFB Electronics fiber pigtail SC 50/125 OM4 12-kleurenset 2m - kabel-/adapterset - Singlemode of Multimode

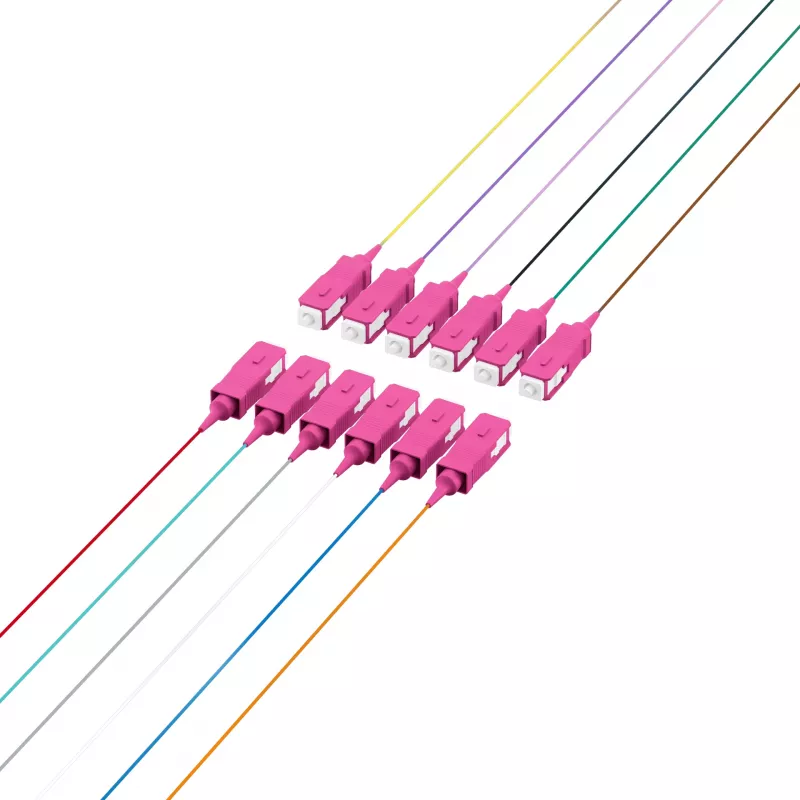

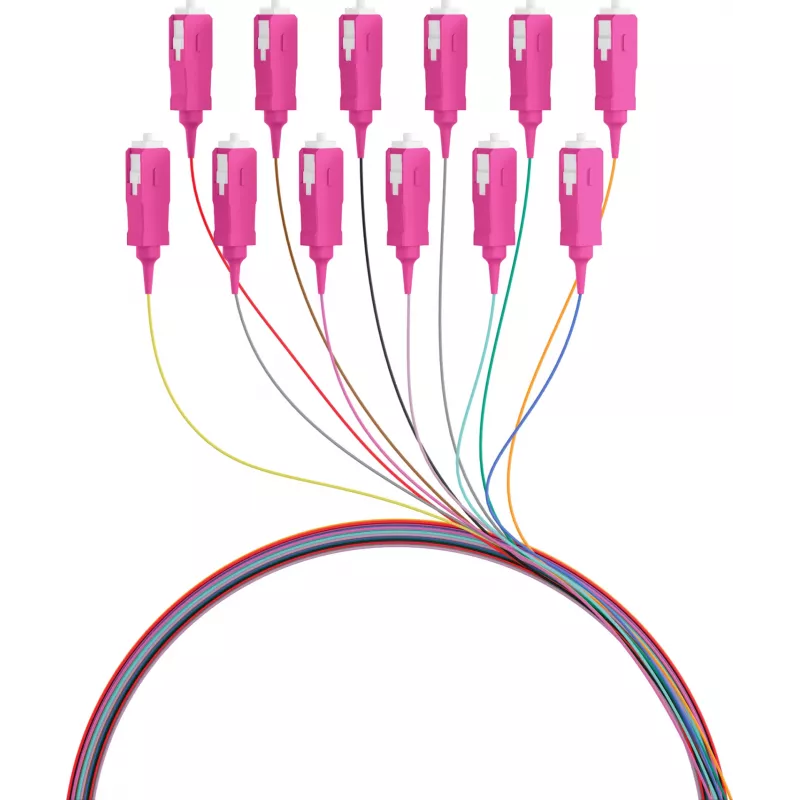

The EFB Electronics Fibre Pigtail SC 50/125 OM4 12-Colour Set 2m is a high-quality fiber optic pigtail set designed for reliable and efficient network connections. This set includes 12 individually color-coded pigtails, each with a pre-terminated SC connector on one end and an unconnectorized end for splicing, making it ideal for data centers, LAN, SAN, FTTx, and telecommunication networks.

Advantages

This pigtail set offers excellent performance with low insertion loss (≤0.3 dB typical) and high return loss (≥30 dB typical), ensuring minimal signal degradation. The OM4 multimode fiber supports high-bandwidth applications over longer distances. The 12-color coding according to DIN VDE 0888 simplifies identification and organization. The LSZH (Low Smoke Zero Halogen) outer jacket enhances safety in enclosed spaces.

Suitable for

• Data centers requiring high-density fiber connections
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• FTTx (Fiber to the x) deployments
• Telecommunication networks
• Any application needing reliable multimode fiber splicing

Key specifications

• Product Type: Fiber Optic Pigtail Set
• Fiber Mode: Multimode
• Fiber Class: OM4
• Core/Cladding Diameter: 50/125 µm
• Connector Type (End 1): SC
• Connector Type (End 2): Unconnectorized (for splicing)
• Number of Fibers: 12
• Pigtail Length: 2 m
• Jacket Color: Aqua
• Cable Construction: Simplex
• Polishing Type: PC (Physical Contact)
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD
• Outer Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color Coding: 12 different colors (DIN VDE 0888)
• Application: Data Centers, LAN, SAN, FTTx, Telecommunication Networks

Recommendations

For optimal performance, ensure proper splicing techniques and use compatible SC adapters. This pigtail set is ideal for high-speed networks requiring OM4 multimode fiber.
