EFB Electronics RJ45-Hirose connector STP TM21 rood 100 stuks 3 elementen Cat.6

The EFB Electronics RJ45-Hirose connector STP TM21 in red is a high-performance shielded modular plug designed for reliable Ethernet network cabling. This pack contains 100 pieces, each featuring a 3-part modular design for easy and secure termination. Ideal for professional installers, these connectors ensure excellent signal integrity and durability.

Advantages

Shielded design (STP) minimizes electromagnetic interference, ensuring stable data transmission. Gold-plated contacts (50µ) provide superior conductivity and corrosion resistance. The 3-part construction simplifies crimping and reduces installation errors. Suitable for both solid and stranded conductors (AWG 23-26), offering versatility for various cabling needs.

Suitable for

• Ethernet network installations requiring Cat.6 performance
• Structured cabling in commercial and industrial environments
• High-speed data transmission up to 1 Gbps
• Applications where EMI protection is critical

Key specifications

• Connector Type: RJ45 Plug
• Compatibility Series: Hirose TM21
• Shielding: STP (Shielded Twisted Pair)
• Performance Category: Cat.6
• Color: Red
• Pack Quantity: 100 pieces
• Number of Positions/Contacts: 8P8C
• Contact Plating: Gold-plated (50µ")
• Housing Material: Polycarbonate (PC)
• Termination Method: Crimp
• Cable Compatibility: Solid and Stranded Conductors
• Wire Gauge Support: AWG 23-26

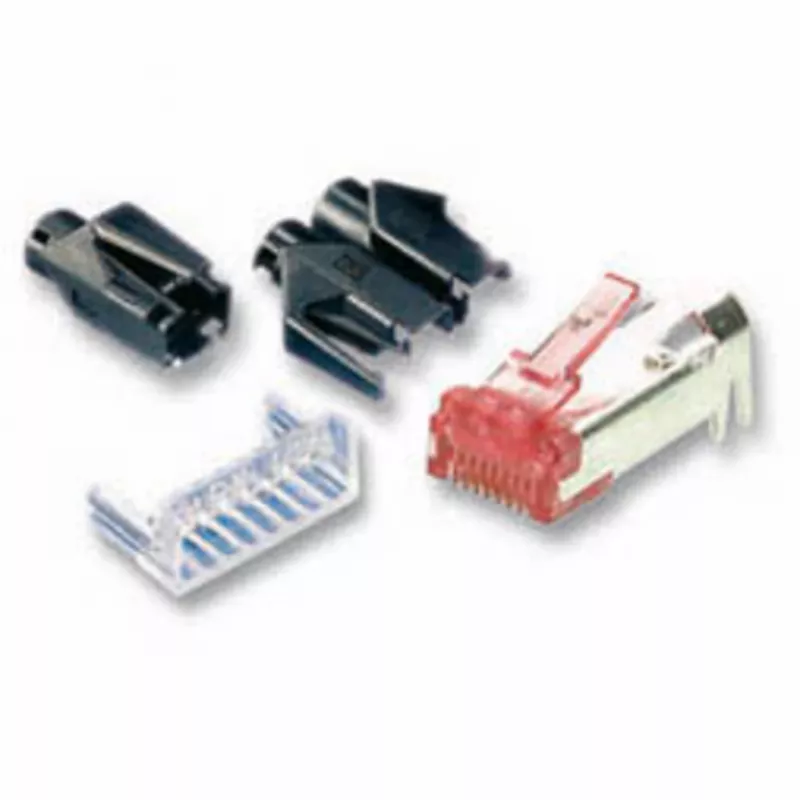

• Design Feature: 3-part modular design (plug housing, wire guide, strain relief element)
• Flammability Rating: UL 94V-0
• Operating Temperature: -10°C to +60°C
• Insertion Cycles: >750
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, use with Cat.6 shielded cable and appropriate crimping tool. Ensure proper strain relief to maintain connection integrity.
