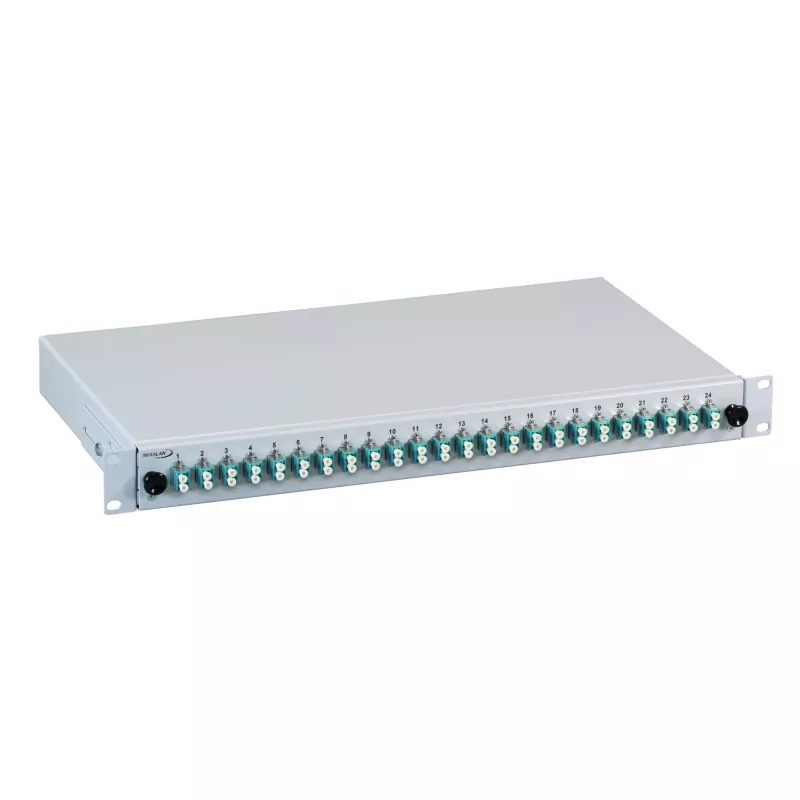

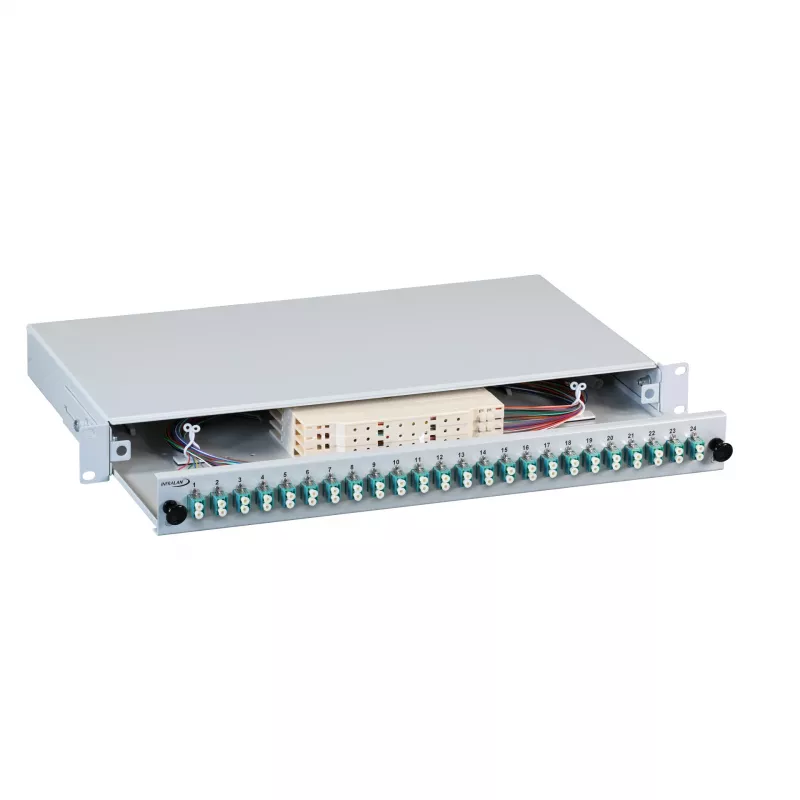

EFB Electronics uitschuifbare splicebox LC 12 pigtails offset 6 koppelingen OM3

The EFB Electronics Extendable Splice Box is a high-quality fiber optic patch panel designed for efficient cable management in 19-inch racks. This 1U sliding enclosure comes pre-assembled with 12 LC pigtails (2m each) and 6 LC duplex adapters, providing a total fiber capacity of 12 fibers. Ideal for data centers and telecom rooms, it ensures low insertion loss and high return loss for reliable OM3 multimode performance.

Advantages

Space-saving 1U design with pull-out feature for easy access. Pre-terminated pigtails and adapters reduce installation time. Robust steel construction with light grey powder coating (RAL 7035) ensures durability. Includes cable glands and splice tray for organized fiber management.

Suitable for

• Data center patching and splicing
• Telecommunications network distribution
• Fiber-to-the-desk (FTTD) installations
• LAN and SAN fiber optic infrastructure

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Mounting: 19" Rack, 1U, Sliding
• Fiber Type: Multimode OM3
• Connectors: 6x LC Duplex (front), 12x LC pigtails (rear)
• Pigtail Length: 2 m
• Total Fibers: 12
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Material: Steel, powder-coated, Light Grey (RAL 7035)
• Operating Temperature: -20°C to +70°C
• Protection Class: IP20

Recommendations

For optimal performance, use with OM3 patch cables and ensure proper cable strain relief. Compatible with standard 19-inch racks.
