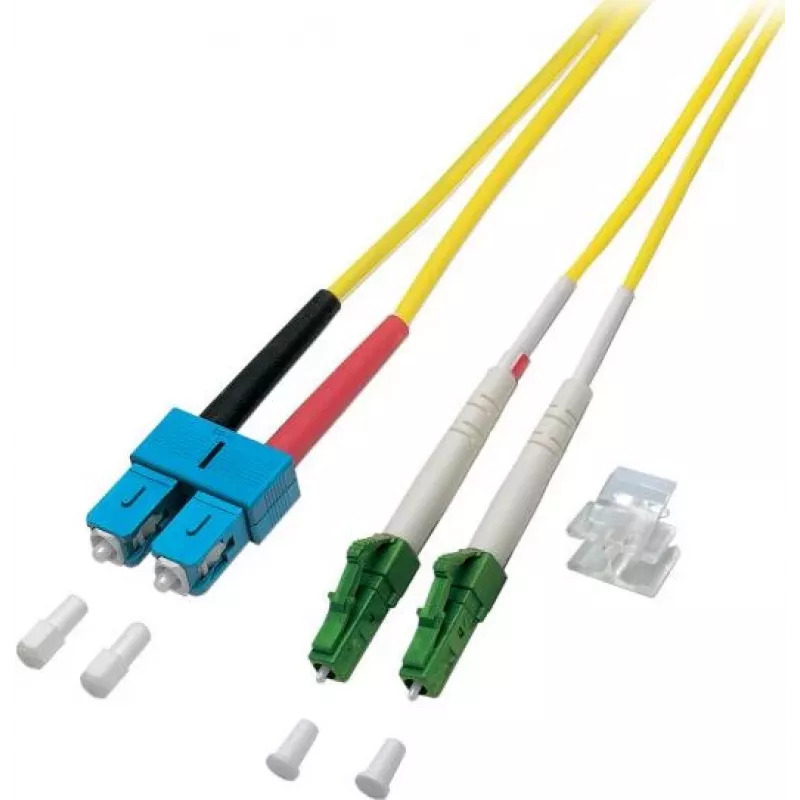

EFB-Elektronik duplex jumper LC/APC-SC 9/125µ, OS2, LSZH, geel, 2,0mm, 3m

This EFB-Elektronik Duplex Jumper is a high-quality fiber optic patch cable designed for single-mode networks. It features LC/APC to SC connectors, OS2 grade, and a durable LSZH jacket. Ideal for data centers, telecommunications, and high-speed Ethernet applications.

Advantages

Low insertion loss and high return loss ensure reliable signal transmission. The LSZH jacket provides safety in enclosed spaces. Duplex design supports bidirectional communication.

Suitable for

• Data Networking
• Telecommunications
• Data Centers
• Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Fiber Core/Cladding Diameter: 9/125 µm
• Connector A: LC/APC
• Connector B: SC
• Cable Configuration: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Cable Length: 3 m
• Connector A Polish: APC (Angled Physical Contact)
• Connector B Polish: PC (Physical Contact)
• Number of Fibers: 2

Recommendations

Ensure compatibility with your equipment's connector type and fiber mode. For optimal performance, use with OS2 rated transceivers.
