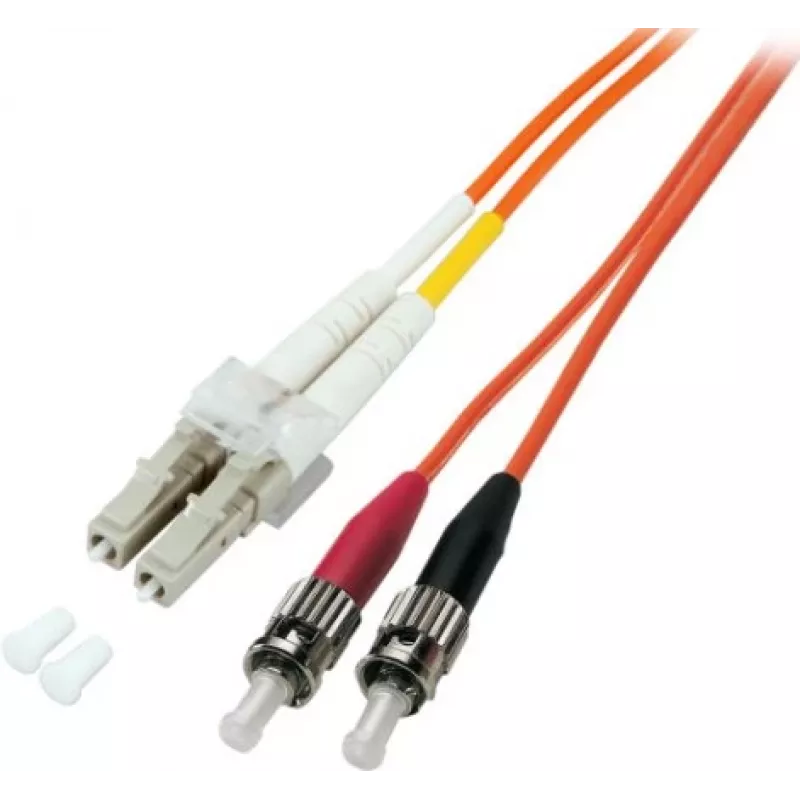

EFB-Elektronik duplex jumper LC-ST 50/125µ OM2 LSZH oranje 2,0 mm 7,5 m

The EFB-Elektronik Duplex Jumper LC-ST 50/125µ OM2 LSZH Orange 2.0mm 7.5m is a high-quality fiber optic patch cable designed for reliable data transmission in data centers, LAN, SAN, and telecommunication networks. With LC to ST connectors, this duplex multimode cable features a 50/125 micron core/cladding and OM2 grade, ensuring optimal performance for short to medium distance applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the orange color and 2.0mm diameter facilitate easy identification and installation.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥20 dB), ensuring signal integrity and minimal data errors. The LSZH jacket reduces toxic fumes and smoke in case of fire, making it ideal for use in offices, data centers, and public areas. The duplex configuration allows for simultaneous bidirectional communication, doubling the capacity of a single fiber link.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunication networks
• Fiber-to-the-desk applications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Connector A: LC
• Connector B: ST
• Fiber Type: Multimode
• Fiber Core Diameter: 50 µm
• Fiber Cladding Diameter: 125 µm
• Fiber Grade: OM2
• Cable Length: 7.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 2.0 mm
• Number of Fibers: 2
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 20 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH
• Minimum Bend Radius (Installation): 30 mm

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid exceeding the minimum bend radius during installation. This cable is compatible with standard LC and ST ports.
