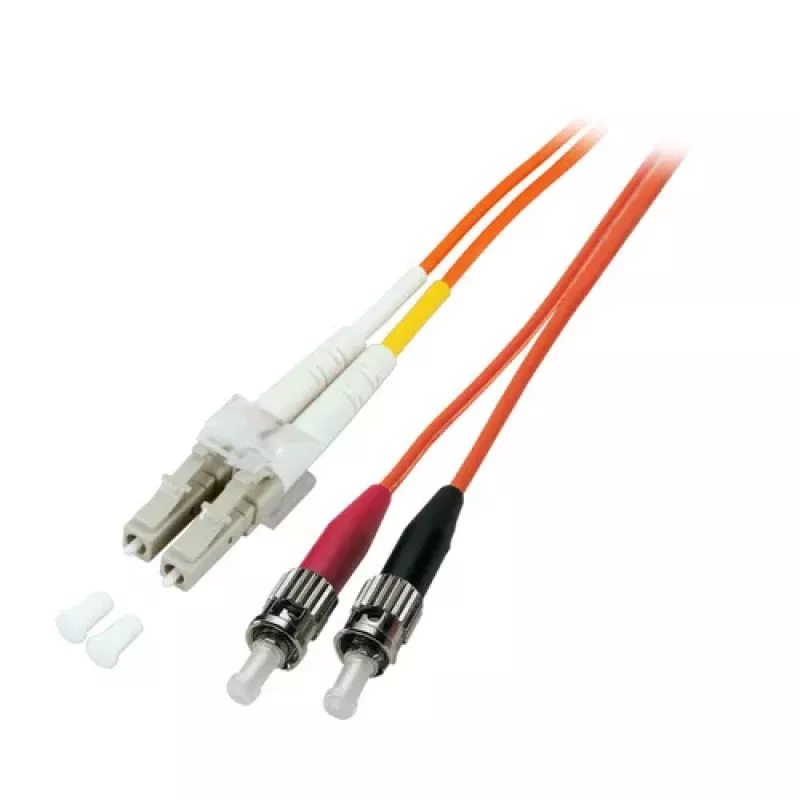

EFB-Elektronik Duplex Jumper LC-ST 50/125µm OM2 LSZH Oranje 2,0mm 5m

The EFB-Elektronik Duplex Jumper LC-ST is a high-quality fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 5 meters, this OM2 multimode cable features LC to ST connectors, a 50/125µm core/cladding, and a durable LSZH (Low Smoke Zero Halogen) jacket in orange. Ideal for data centers, LAN, SAN, and telecommunications applications.

Advantages

Low insertion loss (≤0.3 dB) and high return loss (≥20 dB) ensure excellent signal integrity. The LSZH jacket provides enhanced safety by reducing toxic and corrosive gas emissions in case of fire. The 2.0mm diameter per simplex offers flexibility while maintaining durability.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable, Duplex
• Connectors: LC to ST
• Fiber Mode: Multimode (OM2)
• Core/Cladding: 50/125 µm
• Length: 5 m
• Jacket: LSZH, Orange, 2.0 mm diameter
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 20 dB
• Attenuation: ≤ 3.0 dB/km @ 850 nm, ≤ 1.0 dB/km @ 1300 nm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and ST ports.
