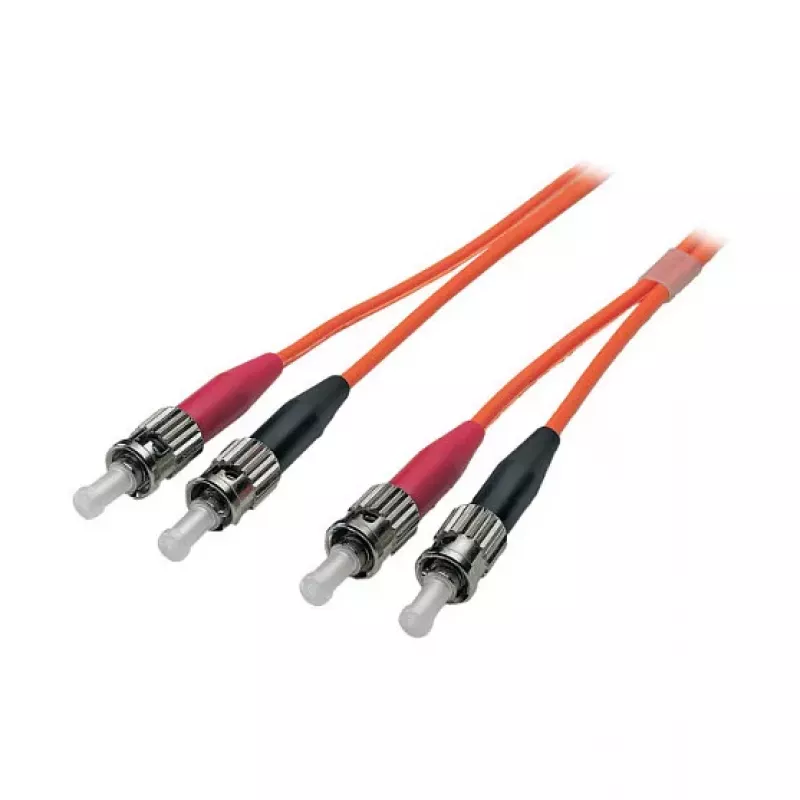

EFB-Elektronik duplex patchkabel ST-ST OM2 3m LSZH 3mm oranje

The EFB-Elektronik Duplex Jumper ST-ST 50/125µ, OM2, LSZH, orange, 3.0mm, 3m is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With duplex ST connectors and OM2 grade fiber, this cable supports data rates up to 1 Gbps over 550m and 10 Gbps up to 82m, making it ideal for enterprise and data center applications.

Advantages

Low insertion loss (<0.3 dB) and high return loss (>20 dB) ensure excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The 3.0mm cable diameter offers flexibility while maintaining durability.

Suitable for

• Connecting network switches, routers, and servers in data centers
• Fiber-to-the-desk (FTTD) installations
• Telecommunications and LAN backbones
• Industrial environments requiring flame-retardant cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode
• Core/Cladding: 50/125 µm
• Fiber Grade: OM2
• Connectors: Duplex ST-ST
• Jacket Material: LSZH
• Jacket Color: Orange
• Cable Diameter: 3.0 mm
• Cable Length: 3 m
• Insertion Loss: <0.3 dB typical
• Return Loss: >20 dB typical

Recommendations

For optimal performance, use with OM2-compatible transceivers and ensure clean, dust-free connectors. This cable is not suitable for single-mode applications.
