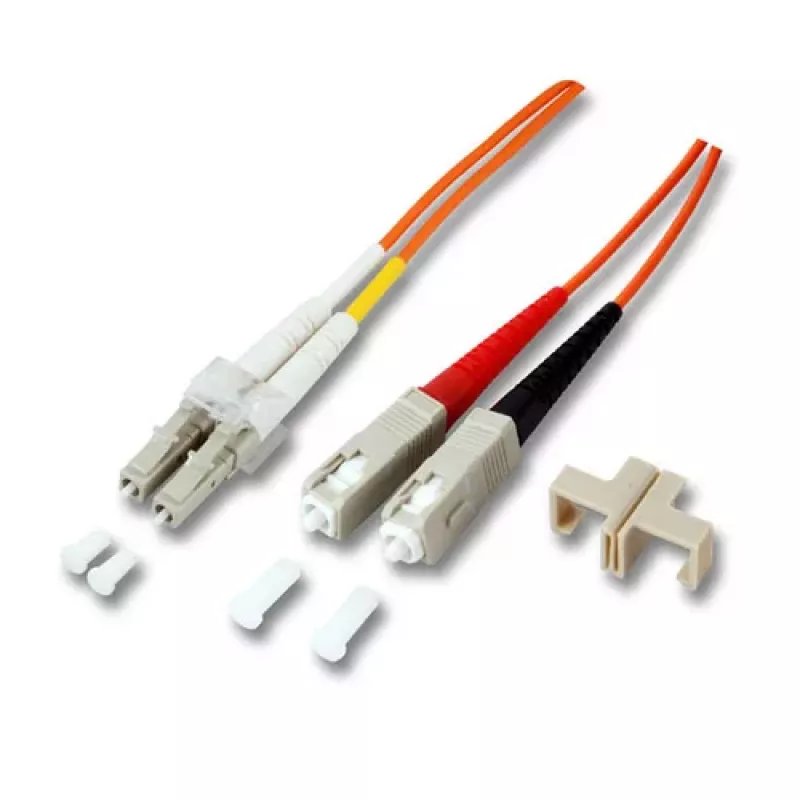

EFB-Elektronik ECOFIBER Duplex Jumper LC-SC 50/125 µm OM2 LSZH Oranje 2,0 mm 3 m

The EFB-Elektronik ECOFIBER Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in local area networks (LAN), storage area networks (SAN), and fiber channel applications. With a 50/125 µm core/cladding diameter and OM2 multimode fiber, this cable supports Gigabit Ethernet and 10 Gbps data rates over short distances. The LC to SC duplex connectors ensure secure connections, while the LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces. The orange jacket and 2.0 mm diameter make it easy to identify and handle.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for use in offices, data centers, and public buildings. The duplex design allows for bidirectional communication, and the 3-meter length provides flexibility in rack installations.

Suitable for

• Gigabit Ethernet and 10 Gigabit Ethernet networks
• Fibre Channel connections
• Optical Add-Drop Multiplexers (OADM)
• Storage Area Networks (SAN)
• Local Area Networks (LAN)

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode
• Core/Cladding: 50/125 µm
• Optical mode: OM2
• Connector A: LC Duplex
• Connector B: SC Duplex
• Length: 3 m
• Jacket material: LSZH
• Jacket color: Orange
• Cable diameter: 2.0 mm
• Number of fibers: 2 (Duplex)
• Polarity: A-B (Crossed)
• Insertion loss: ≤0.3 dB
• Return loss: ≥30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM2-rated transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius of 20 mm. This cable is ideal for short-reach connections within racks or between patch panels.
