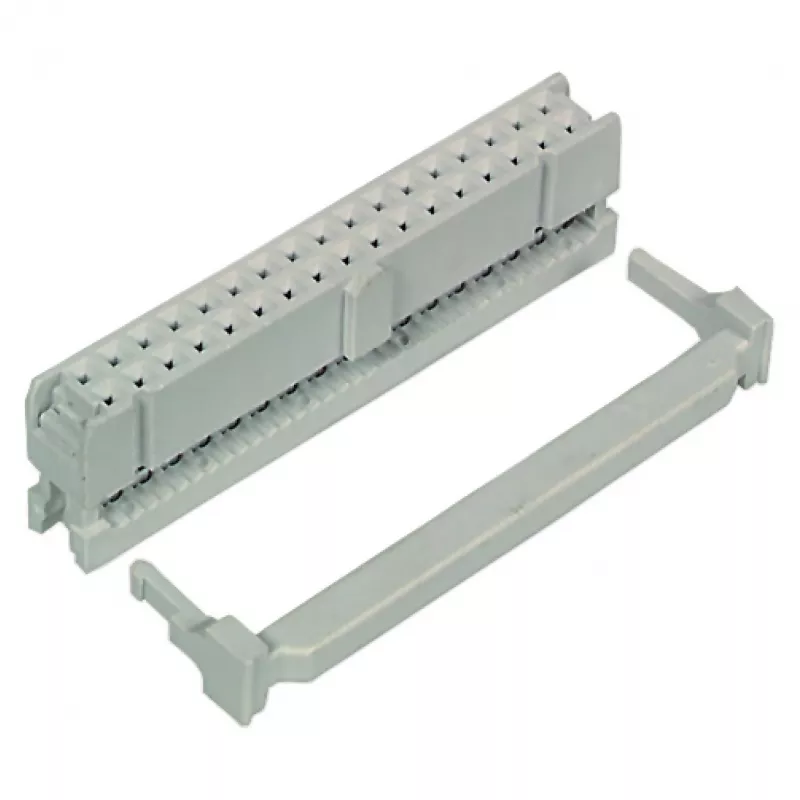

EFB-Elektronik pinheader 26-polig grijs RM 2,54, E-WP 5461

The EFB-Elektronik Pfostenverbinder 26pol. grau RM 2,54, E-WP 5461 is a high-quality IDC header connector designed for reliable ribbon cable to PCB interconnections. With 26 pins in a dual-row configuration and a 2.54 mm pitch, this male connector ensures secure and precise connections in various electronic applications.

Advantages

This connector offers excellent durability and signal integrity, making it ideal for demanding environments. Its through-hole mounting and straight orientation simplify assembly, while the grey color provides easy identification.

Suitable for

• Ribbon cable to PCB interconnections
• Industrial control systems
• Data communication equipment
• Prototyping and development boards

Key specifications

• Connector Type: IDC Header
• Number of Pins: 26
• Pin Pitch: 2.54 mm
• Number of Rows: Dual Row (2x13)
• Color: Grey
• Manufacturer: EFB-Elektronik
• Model Number: E-WP 5461
• Connector Gender: Male
• Mounting Type: Through-Hole
• Orientation: Straight
• Termination Style: IDC

Recommendations

For optimal performance, pair this header with a matching IDC socket connector and ensure proper alignment during assembly. Suitable for use with standard 26-pin ribbon cables.
