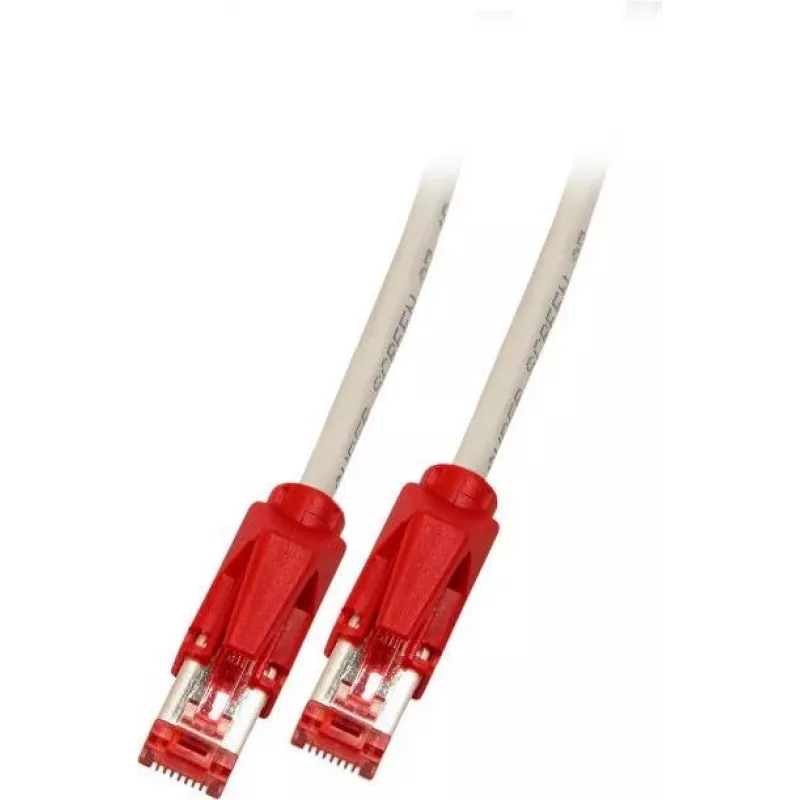

EFB-Elektronik RJ45-patchkabel Cat.6 S/FTP LSZH Draka UC900 crossover grijs 5 m

The EFB-Elektronik RJ45 Patch Cable Cat.6 S/FTP LSZH Draka UC900 Crossover Grey 5m is a high-performance crossover cable designed for direct device-to-device connections. Manufactured by EFB Elektronik, this cable features robust S/FTP shielding and a low smoke zero halogen (LSZH) jacket, ensuring safety and reliability in demanding environments.

Advantages

This crossover cable eliminates the need for an uplink port or switch when connecting two network devices directly, such as PCs, hubs, or switches. The S/FTP shielding (PiMF with overall braid) provides excellent protection against electromagnetic interference, ensuring stable data transmission. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for public and industrial areas.

Suitable for

• Direct connection between two computers (PC-to-PC)
• Connecting hubs or switches without an uplink port
• Network setups in data centers, offices, and industrial environments
• Applications requiring low smoke and halogen-free cabling

Key specifications

• Cable Type: RJ45 Patch Cable, Crossover
• Category: Cat.6 (Class E)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 5 meters
• Colour: Grey
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: T568A to T568B (Crossover)
• Conductor Material: Copper, Stranded
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps (1000BASE-T), suitable for 10 Gbps over short distances
• Cable Core Manufacturer: Draka UC900
• Flammability Rating: IEC 60332-1-2
• Compliance: RoHS, CE
• Connector Plating: Gold-plated contacts

Recommendations

For optimal performance, use this cable for direct connections between two devices that support auto-MDI/MDI-X or require a crossover cable. Ensure the cable is not bent sharply to maintain signal integrity.
