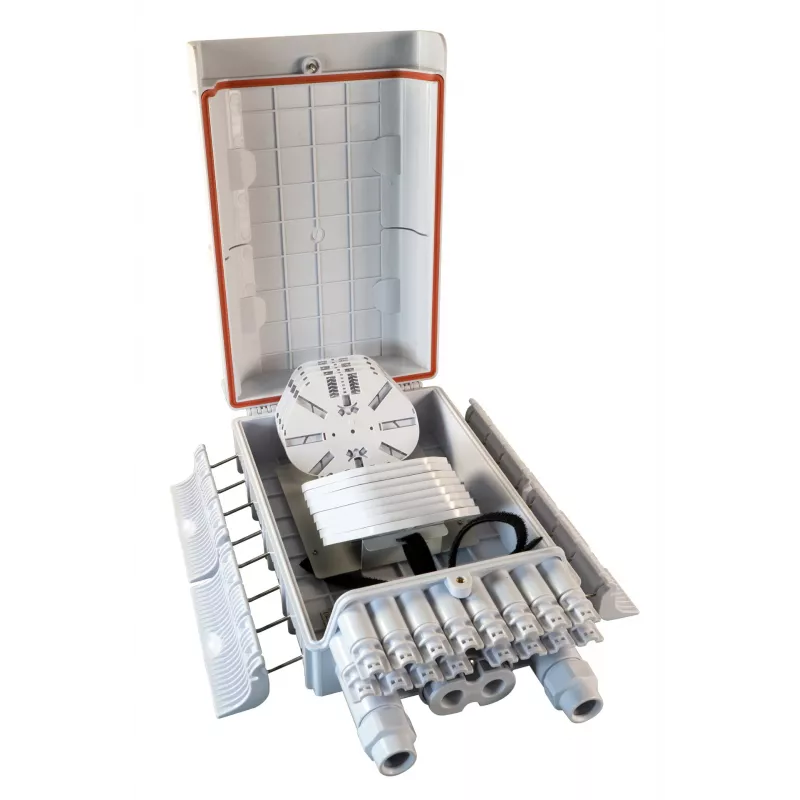

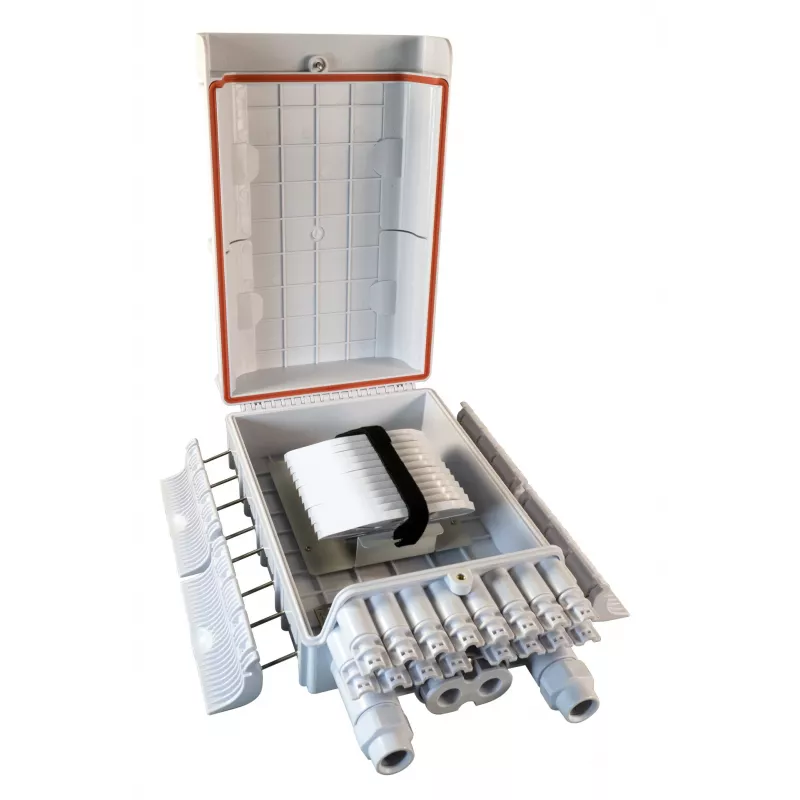

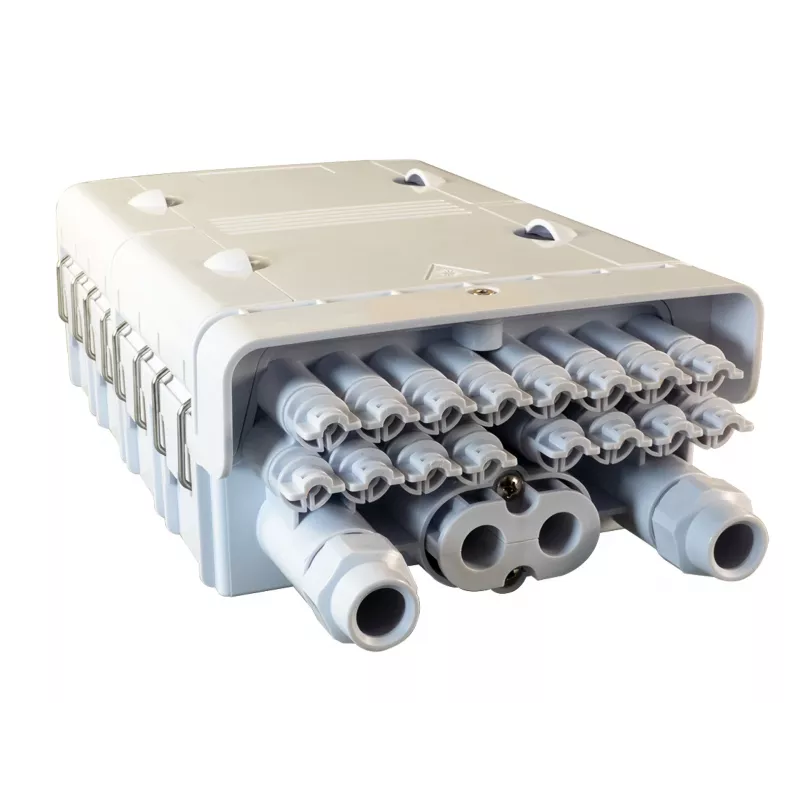

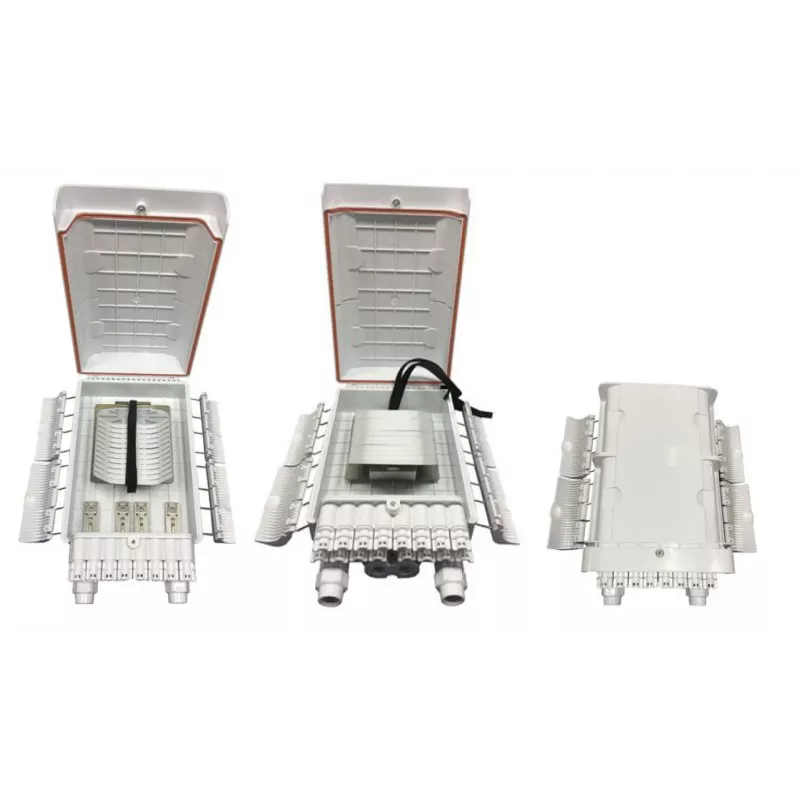

EFB FTTH IP65 outdoor verdeelbox voor 96 vezels met splice-cassettes en vezeloverlengteopslag (FTTH-BOX-OUT-6)

The EFB FTTH-BOX-OUT-6 is a high-quality IP65-rated outdoor fiber optic distribution box designed to accommodate up to 96 fibers. It provides reliable protection for fiber splices and connectors in FTTH networks, featuring integrated fiber overlength storage and a robust polycarbonate housing.

Advantages

IP65 protection ensures dust and water resistance for outdoor use. The box includes 4 splice trays, each holding up to 24 fibers, for organized splicing. Integrated fiber overlength storage simplifies cable management. The key lock mechanism secures the box against unauthorized access.

Suitable for

• FTTH network termination points
• Outdoor fiber optic distribution
• Fiber splicing and connectorization in harsh environments

Key specifications

• Fiber capacity: 96 fibers
• Protection class: IP65
• Material: PC + ABS, grey (RAL 7035)
• Splice trays: 4 trays, 24 fibers each
• Max. adapter ports: 96 (SC Simplex / LC Duplex)
• Main cable entry: 2 ports (max Ø18mm)
• Drop cable entry: 16 ports (2x Ø7mm, 14x Ø3mm)
• Mounting: wall mount
• Operating temperature: -40°C to +70°C
• Locking: key lock

Recommendations

This distribution box is ideal for FTTH deployments requiring high fiber density and outdoor durability. Pair with appropriate splice trays and adapters for a complete solution.
