EFB MTP-F/MTP-F 36-vezel matrix patchkabel OM4, LSZH erikaviolet, type A, 25m MTPF36MTPFOM4-25-A

36 fibers in a single MTP connector pair deliver high-density multimode connectivity with OM4 performance up to 4700 MHz·km at 850 nm.

Overview

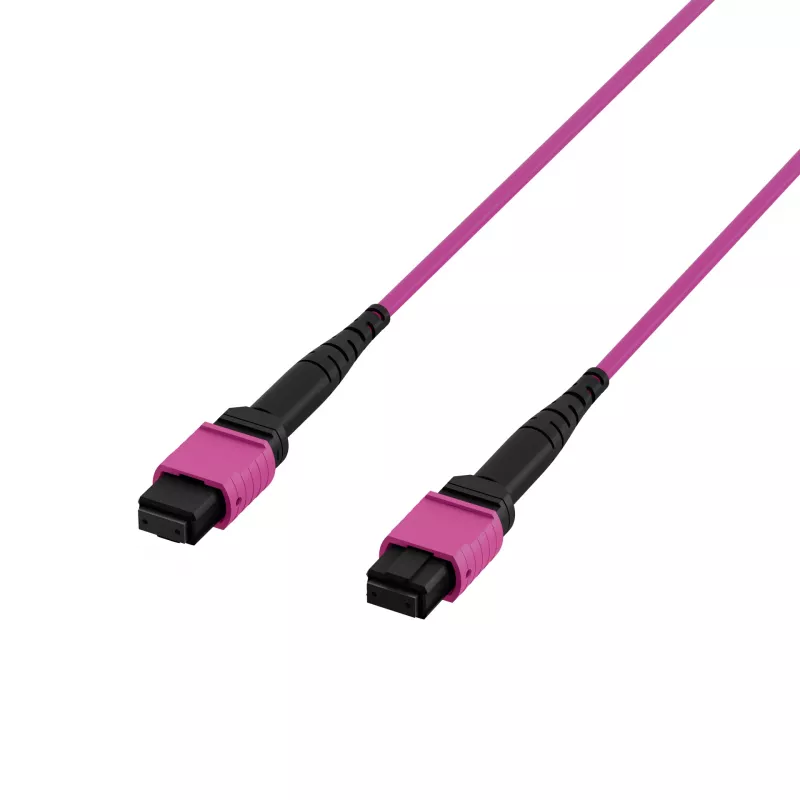

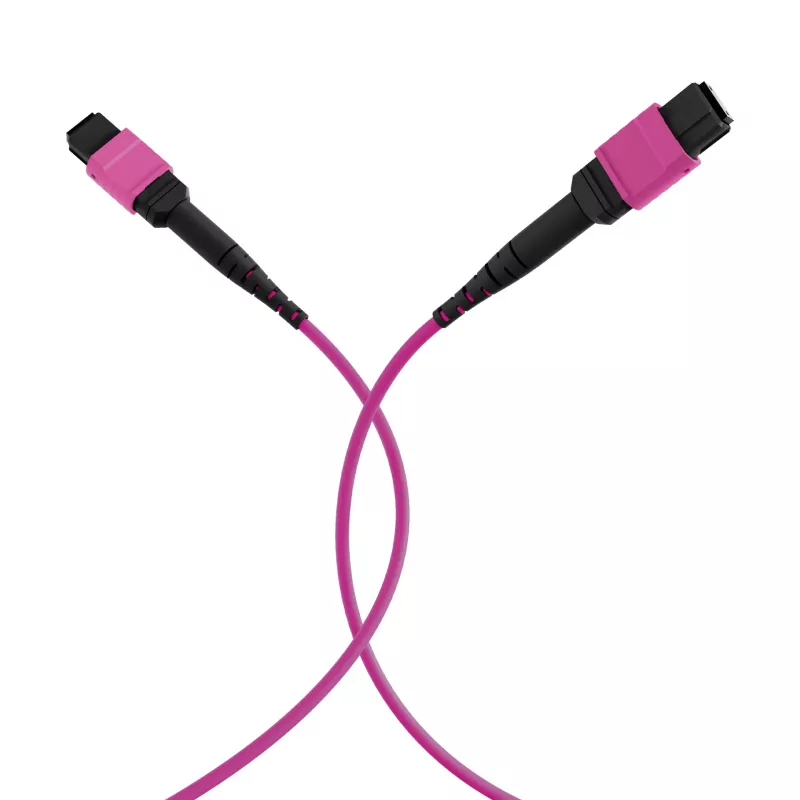

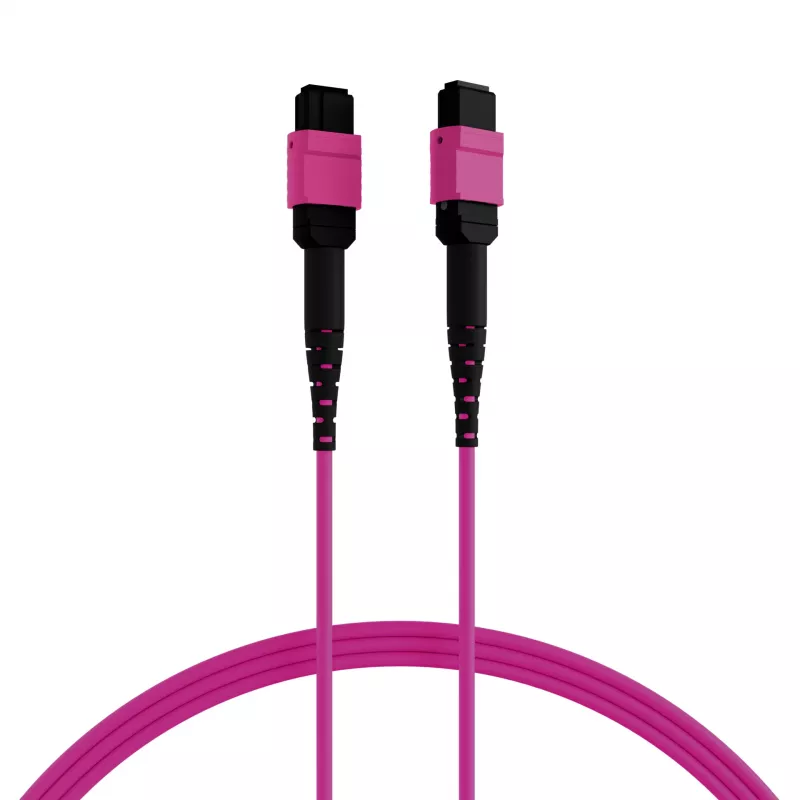

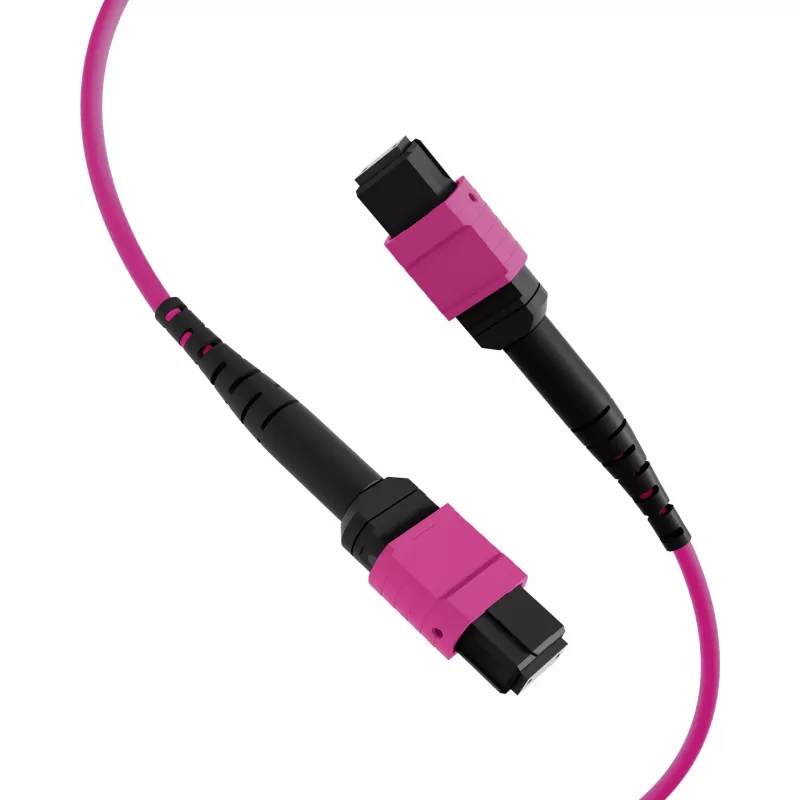

This EFB MTP-F to MTP-F patch cable is a 36-fiber OM4 multimode assembly terminated with female MTP connectors on both ends. The cable is 25 m long and uses a low-smoke zero-halogen (LSZH) jacket in Erika Violet, making it suitable for indoor environments where fire safety and low toxicity are required. The Type A polarity provides a straight-through fiber mapping, simplifying deployment in parallel optics applications.

What stands out

• 36 fibers in a single cable for high-density patching
• OM4 multimode fiber supports 40/100 Gbps Ethernet up to 150 m
• LSZH jacket reduces smoke and toxic emissions in case of fire
• MTP female connectors with low insertion loss (<0.35 dB typical)
• Type A polarity for straightforward connectivity

Technical details

• Fiber type: 50/125 µm OM4 multimode
• Connector type: MTP female to MTP female
• Fiber count: 36
• Polarity: Type A (straight-through)
• Jacket material: LSZH
• Jacket colour: Erika Violet
• Length: 25 m
• Insertion loss: <0.35 dB per connector (typical)
• Return loss: >20 dB (typical)
• Operating temperature: -20°C to +70°C

Our verdict

A high-density, fire-safe fiber patch cord for data centers and enterprise networks where space and safety matter.
