EFB PRO-2488GR.G1SV Netwerkkast 24U 800x800mm Lichtgrijs RAL 7035

The EFB PRO-2488GR.G1SV is a high-quality 19-inch network cabinet designed for professional server and network installations. With 24U of rack space and dimensions of 800x800x1163 mm, this freestanding cabinet offers robust construction and ample space for your equipment. Finished in light grey (RAL 7035), it provides a clean and professional appearance for any data center or server room.

Advantages

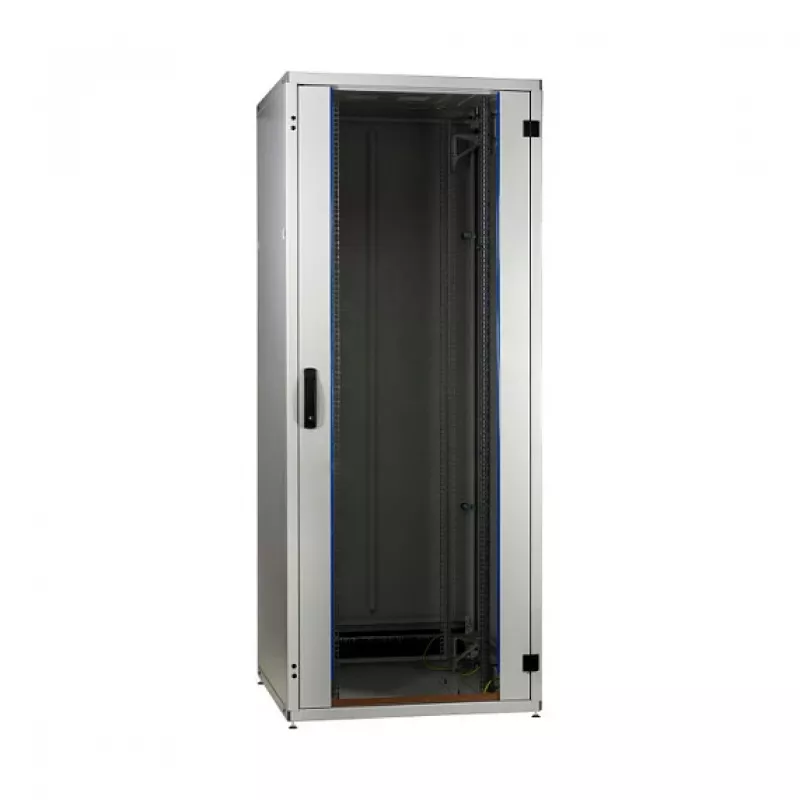

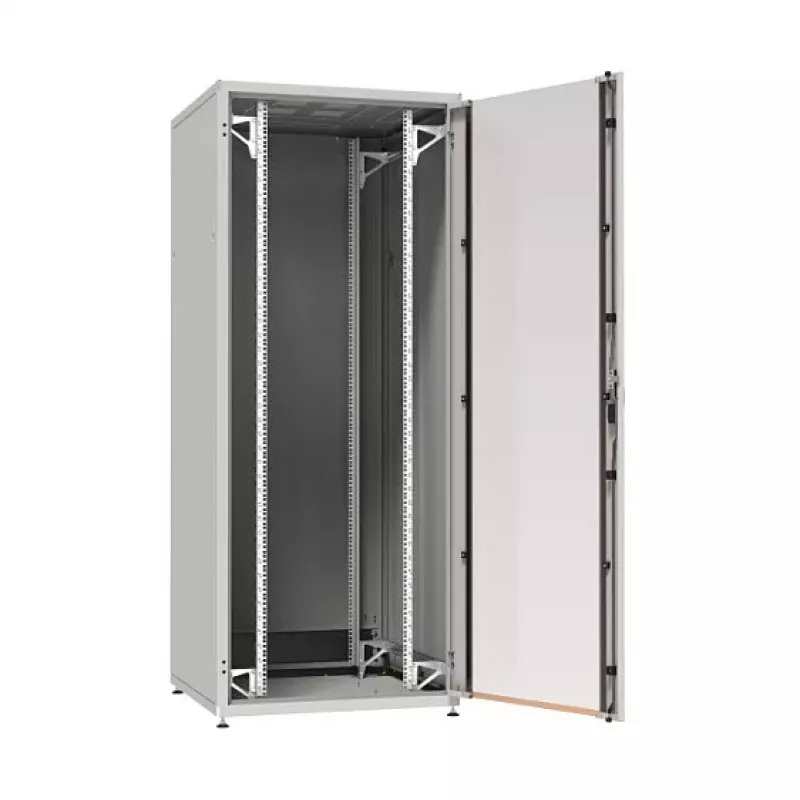

This network cabinet features a tempered safety glass front door for visibility and security, a steel rear door, and lockable side panels. It includes levelling feet and castors for easy positioning and stability. The depth-adjustable mounting profiles allow flexible installation of various 19-inch devices. Cable entry points at top and bottom with brush strips ensure tidy cable management.

Suitable for

• Server rooms and data centers requiring a reliable 19-inch cabinet
• Network equipment such as switches, patch panels, and routers
• Server installations needing secure and ventilated housing
• Professional IT environments where appearance and build quality matter

Key specifications

• Rack Units: 24U
• External Dimensions (W x D x H): 800 x 800 x 1163 mm
• Colour: Light Grey (RAL 7035)
• Material: Steel Sheet
• Front Door: Tempered Safety Glass Door
• Rear Door: Steel Door
• Side Panels: Removable and Lockable
• Protection Class: IP20
• Static Load Capacity: 800 kg
• Cable Entry: Top and Bottom with Brush Strips
• Mounting Profile: 19-inch, Depth-Adjustable
• Ventilation: Passive, prepared for Active Fan Units
• Security: Lockable Front and Rear Doors, Lockable Side Panels
• Frame Construction: Robust Welded Steel Frame
• Feet/Castors: Levelling Feet and Castors Included
• Number of Doors: 2 (Front and Rear)
• Assembly Status: Pre-assembled

Recommendations

This cabinet is ideal for medium to large network installations. Ensure proper ventilation and consider adding active fan units if high-density equipment is installed. The cabinet is pre-assembled for quick deployment.
