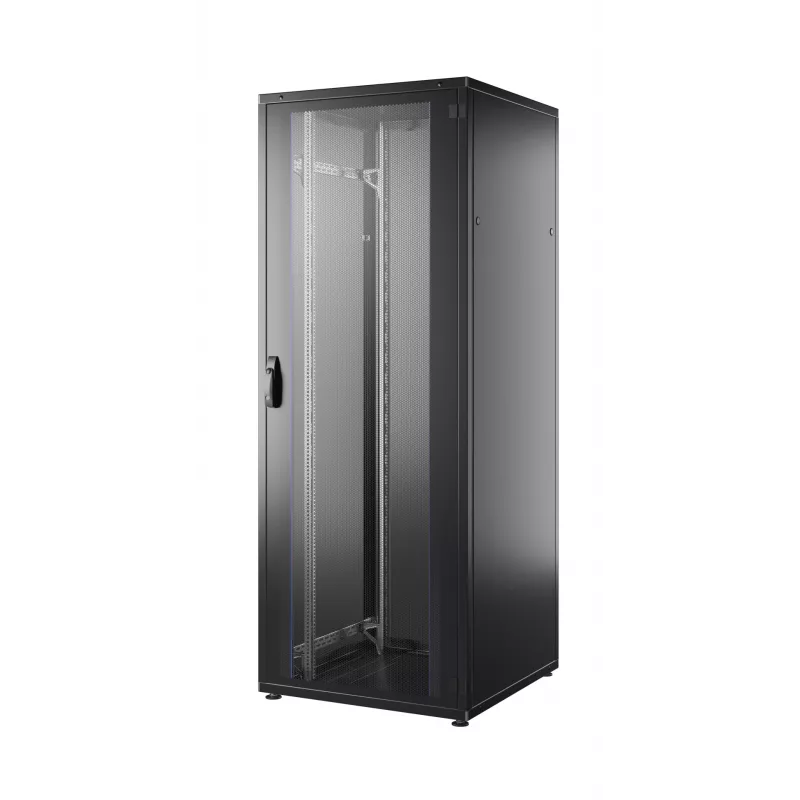

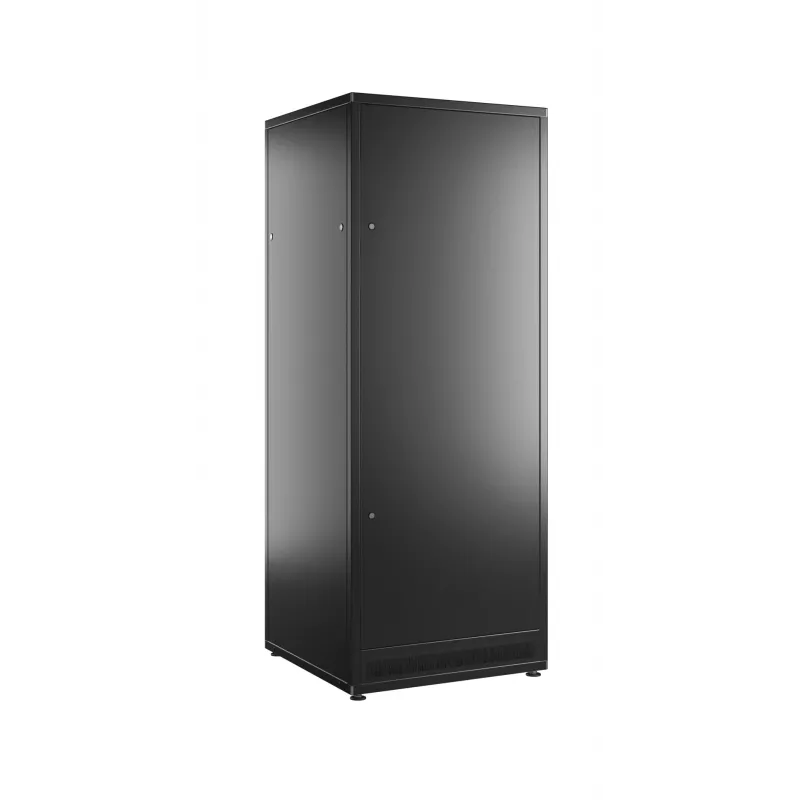

EFB PRO-4288TS.G1SV 19 inch netwerkkast 42U 800x800 mm RAL 9005

The EFB PRO-4288TS.G1SV is a high-quality 19-inch network cabinet designed for professional server and network environments. With 42U of rack space and dimensions of 800x800 mm, this cabinet offers ample room for mounting servers, switches, and other IT equipment. Its robust steel construction and sleek RAL 9005 (jet black) finish ensure durability and a professional appearance.

Advantages

This cabinet provides exceptional load capacity of up to 800 kg, ensuring reliable support for heavy equipment. The front safety glass door and rear steel door are both lockable, offering security and visibility. Removable side panels allow easy access for maintenance, while top and bottom cable entries with brush strips keep cables organized. The cabinet is pre-assembled for quick deployment and includes levelling feet and heavy-duty castors for flexible placement.

Suitable for

• Data centers and server rooms
• Network infrastructure installations
• Enterprise IT environments requiring high-density rack mounting

Key specifications

• Rack Units: 42U
• Rack Width: 19 inches (48.3 cm)
• External Dimensions: 800 x 800 x 2000 mm (W x D x H)
• Color: RAL 9005 (Jet Black)
• Material: Steel
• Load Capacity: 800 kg
• Front Door: Safety glass, lockable
• Rear Door: Steel, lockable
• Side Panels: Removable, lockable

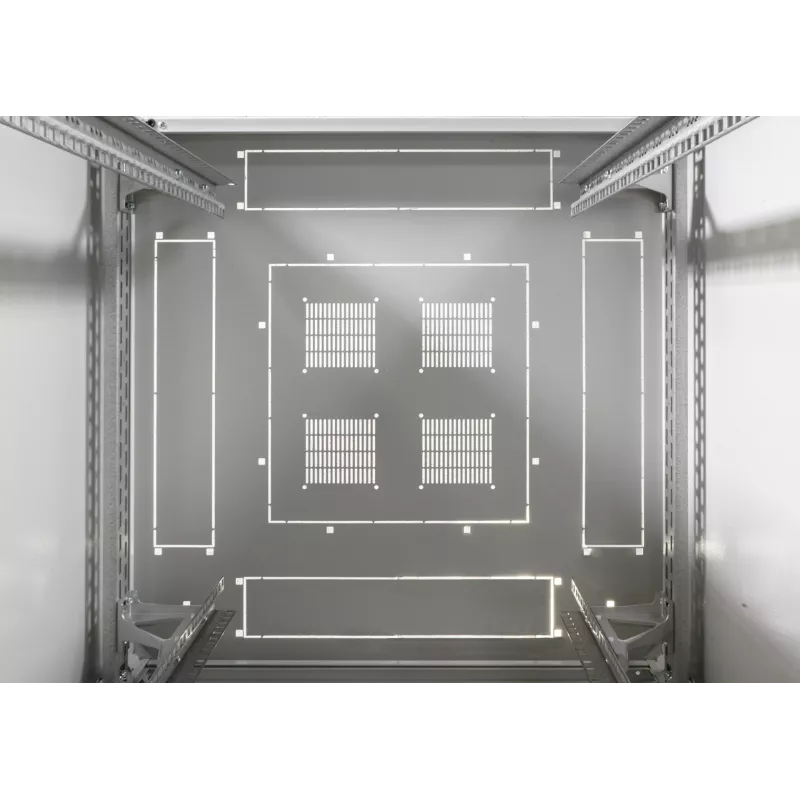

• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Front and rear, depth-adjustable
• Protection Class: IP20
• Ventilation: Passive, prepared for active fan units
• Construction: Pre-assembled
• Feet/Castors: Levelling feet and heavy-duty castors included

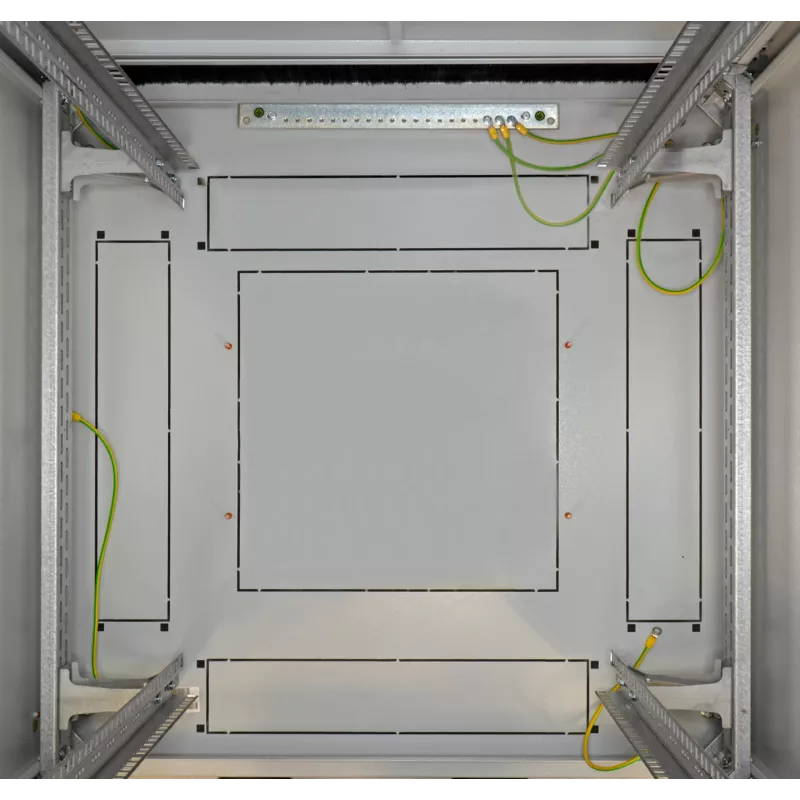

• Grounding: Grounding kit included
• Compliance: RoHS, CE
• Door Opening Angle: 180 degrees

Recommendations

This network cabinet is ideal for professionals seeking a robust, secure, and spacious enclosure for their 19-inch rack-mountable equipment. Its combination of high load capacity, security features, and ease of installation makes it a top choice for demanding IT environments.
