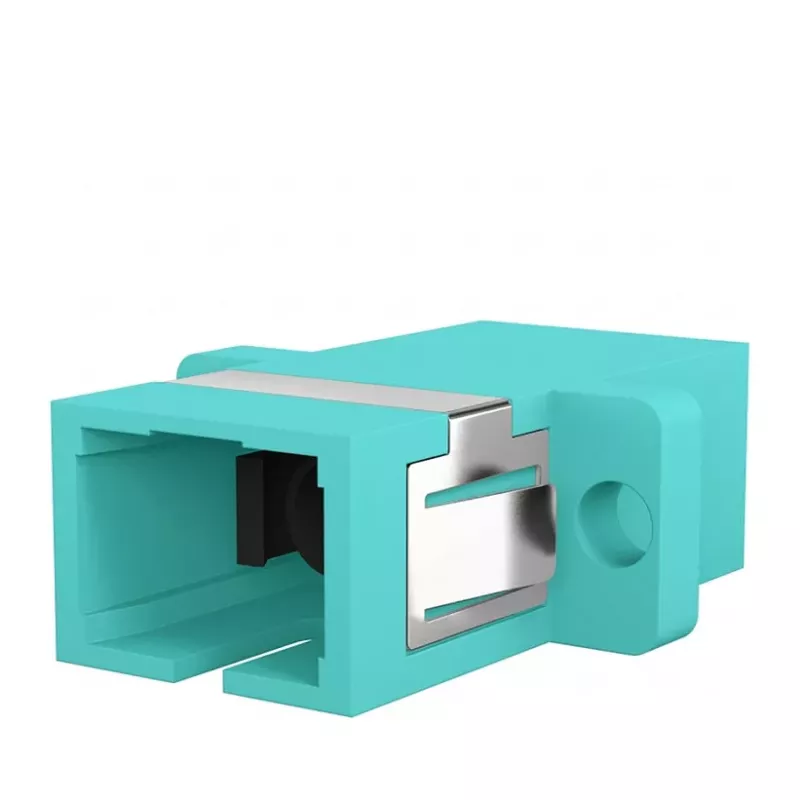

EFB SC Simplex OM3 Glasvezelkoppeling, Aqua, Keramische huls, One-Piece

The EFB SC Simplex OM3 Fiber Optic Coupler is a high-quality adapter designed for reliable interconnection of multimode OM3 fiber optic cables. Featuring a one-piece design with a ceramic sleeve, this coupler ensures low insertion loss and high return loss, making it ideal for demanding network environments. The aqua-colored housing indicates OM3 compatibility, and the flange mount allows for secure panel installation.

Advantages

This coupler offers exceptional performance with typical insertion loss below 0.2 dB and return loss greater than 30 dB. The ceramic sleeve provides durability and consistent alignment over more than 500 mating cycles. Its compact simplex design saves space, and the high-grade polymer housing ensures long-term reliability in temperatures ranging from -20°C to +70°C.

Suitable for

• Interconnecting SC multimode OM3 fiber optic cables in data centers
• Telecommunications networks requiring high bandwidth
• LAN and SAN environments with OM3 fiber infrastructure
• Flange-mounted patch panels and distribution frames

Key specifications

• Connector Type: SC
• Adapter Configuration: Simplex
• Fiber Mode: Multimode
• Fiber Grade: OM3
• Sleeve Material: Ceramic
• Housing Color: Aqua
• Design Type: One-piece
• Insertion Loss (Typical): < 0.2 dB
• Return Loss (Typical): > 30 dB
• Mating Cycles: > 500
• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Mounting Type: Flange Mount
• Housing Material: High-grade Polymer
• Standard Compliance: RoHS, IEC 61754-4, TIA/EIA-604-3

Recommendations

For optimal performance, pair this coupler with OM3 patch cables and ensure clean connectors before mating. Suitable for use in structured cabling systems requiring high-speed data transmission.
