EFB Elektronik Fibre Pigtail ST-II 9/125 OS2 12-kleurenset 2m

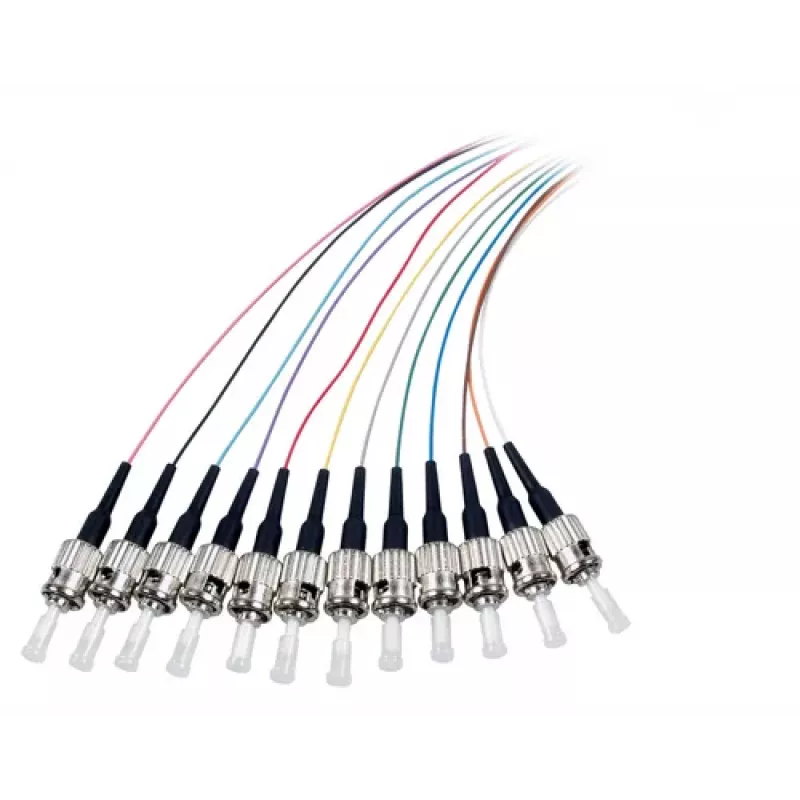

The EFB Elektronik Fibre Pigtail ST-II 9/125 OS2 12-Colour Set 2m is a high-quality fiber optic pigtail set designed for reliable single-mode connections in data centers, telecommunications, LAN, and FTTx applications. Each pigtail features a pre-terminated ST-II connector on one end and bare fiber on the other, with a tight-buffer 900 µm coating for durability. The set includes 12 color-coded pigtails per IEC 60304, facilitating easy identification and organization.

Advantages

This pigtail set offers low insertion loss (≤0.3 dB typical) and high return loss (≥50 dB typical), ensuring excellent signal integrity. The 12-color coding simplifies fiber management, while the OS2 single-mode fiber supports long-distance transmission. RoHS and REACH compliant, it meets environmental standards.

Suitable for

• Data center cabling and patching
• Telecommunications networks
• Local area networks (LAN)
• FTTx deployments
• Fiber optic termination and splicing

Key specifications

• Product Type: Fiber Optic Pigtail Set
• Fiber Type: Single-mode OS2
• Core/Cladding: 9/125 µm
• Connector: ST-II (ST) on one end, bare fiber on other
• Number of Fibers: 12
• Cable Length: 2 m
• Color Coding: 12-color (IEC 60304)
• Buffer Type: Tight Buffer 900 µm
• Polishing: PC/UPC
• Insertion Loss: ≤0.3 dB typical
• Return Loss: ≥50 dB typical
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with compatible ST-II adapters and ensure proper cleaning before connection. Ideal for splicing to patch cords or direct termination.
