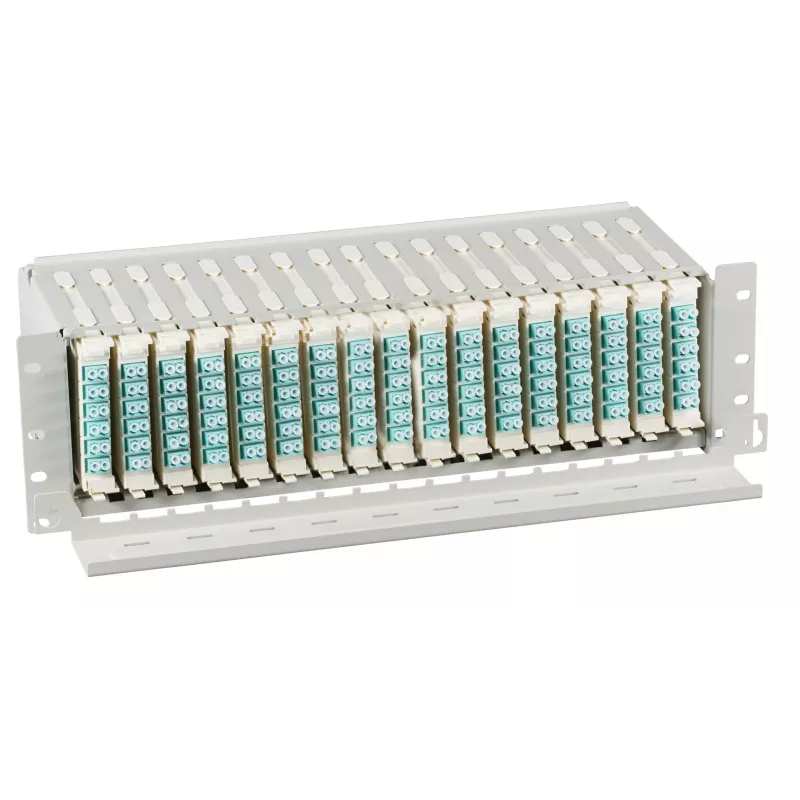

EFB Elektronik FTTH 19 inch 3U drager voor 17x module-inzetstukken FTTH-MODUL-X incl. kabelmanagement

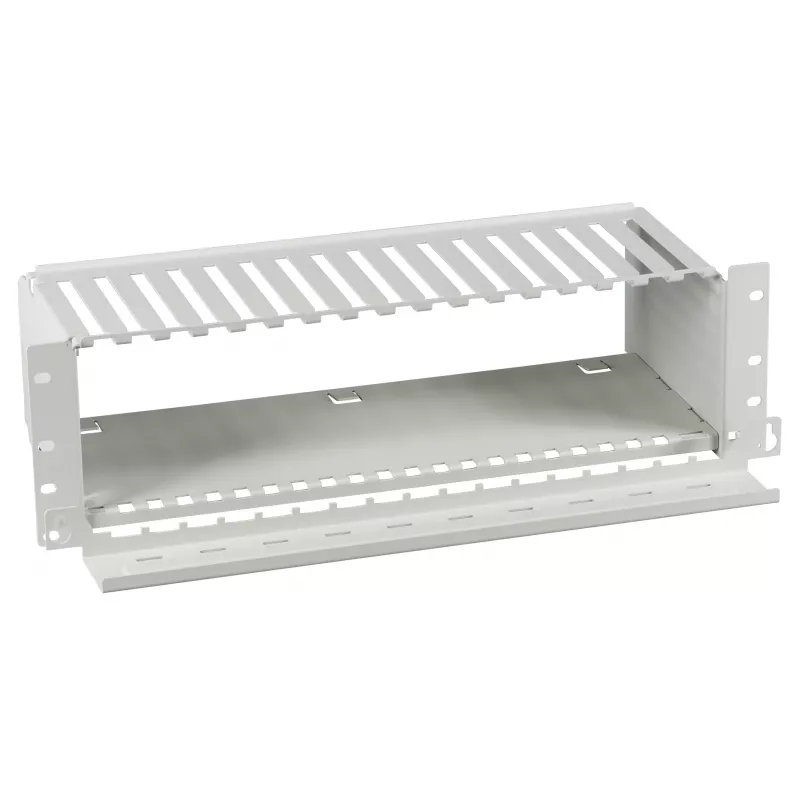

The EFB Elektronik FTTH-BGT-3HE is a robust 19-inch 3U rack-mount carrier designed to accommodate up to 17 FTTH-MODUL-X modules. Ideal for fiber-to-the-home (FTTH) installations, this carrier provides a centralized and organized solution for managing fiber optic modules in telecom rooms or data centers. The integrated cable guide ensures neat cable routing, simplifying installation and maintenance.

Advantages

Space-efficient 3U design maximizes rack utilization. Supports up to 17 modules for high-density applications. Integrated cable management reduces clutter and improves airflow. Durable steel construction ensures long-term reliability. Easy rack mounting with standard 19-inch brackets.

Suitable for

• FTTH network deployments
• Telecommunications infrastructure
• Data center fiber management
• ISP central offices

Key specifications

• Rack Size: 19 inch
• Rack Units: 3U (3HE)
• Module Capacity: 17 slots
• Compatible Modules: EFB FTTH-MODUL-X series
• Integrated Cable Management: Yes
• Material: Steel
• Color: Grey/Black
• Rack Width: 483 mm
• Rack Height: 133.35 mm

Recommendations

For optimal performance, pair this carrier with EFB FTTH-MODUL-X modules. Ensure proper grounding and ventilation in the rack environment.
