EFB Elektronik FTTX compact box voorgemonteerd, 2xLC/APC duplex, G.657.A2, 10m

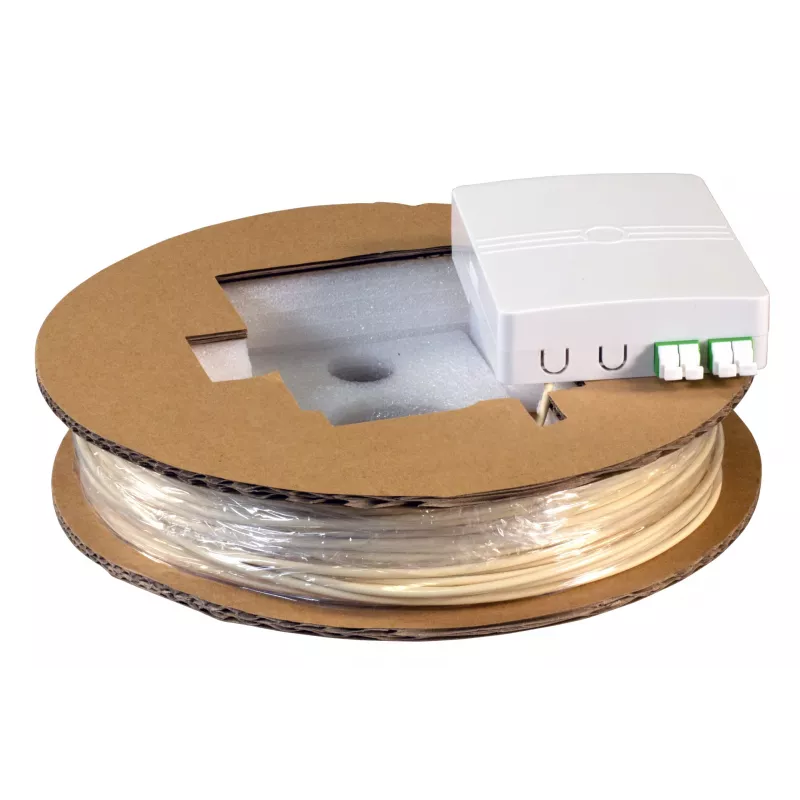

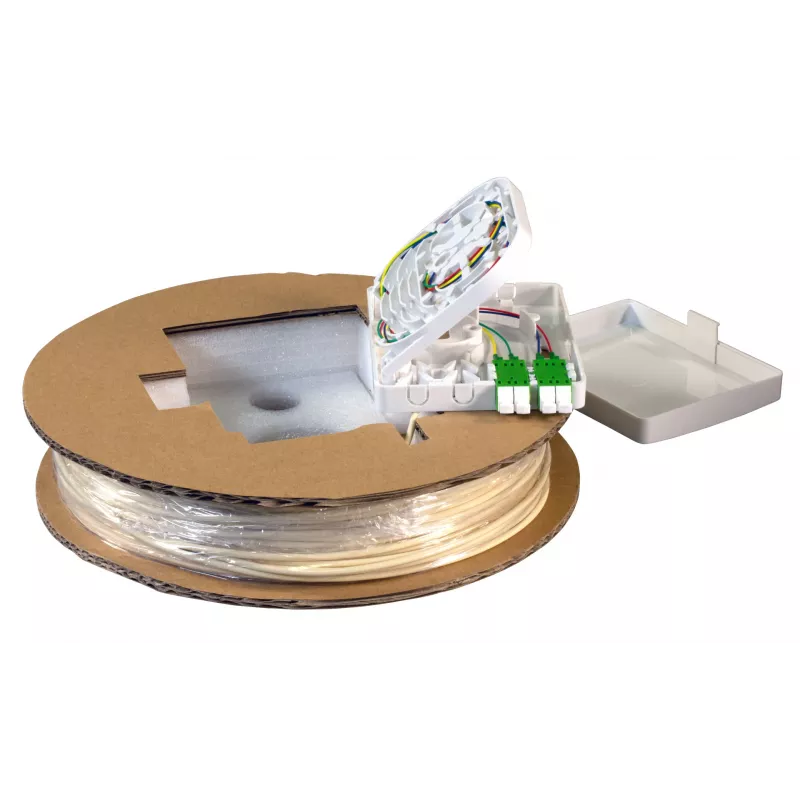

The EFB Elektronik FTTX Compact Box is a pre-terminated fiber optic termination solution designed for FTTX and FTTH networks. It features a compact wall-mountable housing with 2 LC/APC duplex ports, providing 4 fiber connections. The integrated 10-meter drop cable uses bend-insensitive single-mode fiber (G.657.A2) for reliable performance in tight spaces.

Advantages

This pre-assembled unit eliminates field termination, saving installation time and reducing errors. The APC polish ensures low insertion loss (<0.3 dB) and high return loss (>60 dB), ideal for high-bandwidth applications. Its compact ABS housing is durable and easy to mount.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTX network termination points
• Indoor wall-mounted fiber distribution
• Last-mile fiber connectivity

Key specifications

• Product Type: Fiber Optic Termination Box
• Connector: 2x LC/APC Duplex
• Fiber: Single-mode G.657.A2 (bend-insensitive)
• Cable Length: 10 meters
• Insertion Loss: <0.3 dB typical
• Return Loss: >60 dB typical
• Housing: ABS plastic, white
• Mounting: Wall mount
• Protection: IP20
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure clean connector end-faces before mating. Use appropriate cable management to avoid sharp bends. This unit is compatible with standard LC/APC patch panels and optical network terminals.
