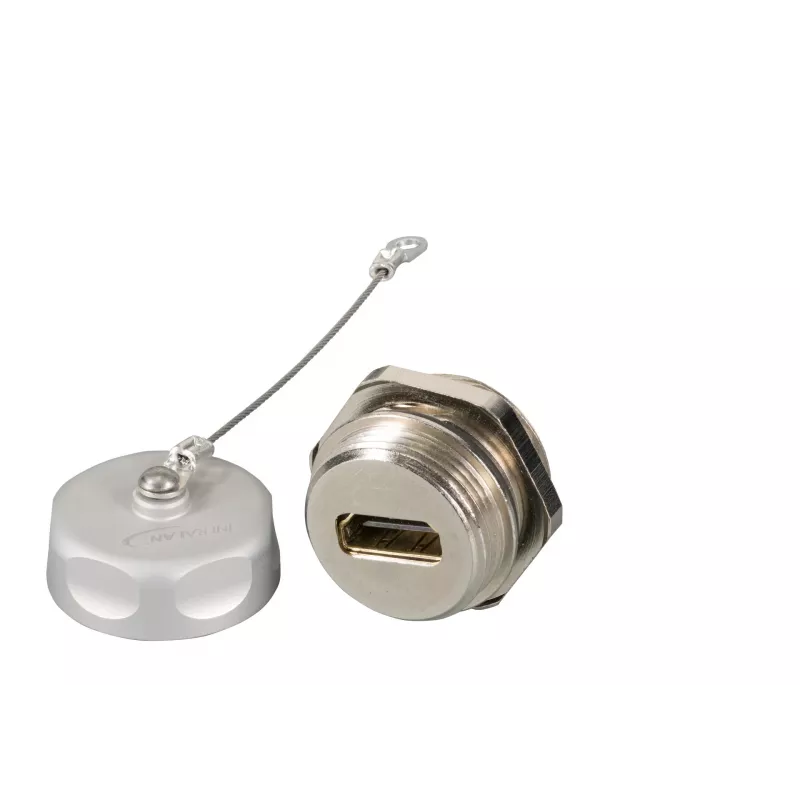

EFB Elektronik HDMI IP67 doorvoerkoppeling Type A bus / Type A bus

The EFB Elektronik HDMI IP67 Feed-Through Coupling is a robust, industrial-grade HDMI coupler designed for reliable signal transmission in harsh environments. Featuring Type A female connectors on both sides, this feed-through coupling allows for easy extension or connection of HDMI cables through panels or walls while maintaining a high level of protection against dust and water ingress.

Advantages

With an IP67 rating, this coupler is fully protected against dust and can withstand temporary immersion in water, making it ideal for outdoor, industrial, and marine applications. The gold-plated contacts ensure corrosion resistance and optimal signal integrity, supporting high-speed HDMI with resolutions up to 4K at 30Hz. The screw-on panel mounting design provides a secure and stable installation, preventing accidental disconnection.

Suitable for

• Industrial automation and control systems
• Outdoor digital signage and displays
• Marine and automotive entertainment systems
• Security camera and surveillance setups
• Any application requiring a durable, waterproof HDMI connection

Key specifications

• Product Type: HDMI Feed-Through Coupler
• Connector Type (Side 1): HDMI Type A Female
• Connector Type (Side 2): HDMI Type A Female
• Ingress Protection (IP) Rating: IP67
• Mounting Type: Panel Mount / Feed-Through
• HDMI Standard Compatibility: High-Speed HDMI (HDMI 1.4 compatible)
• Max Resolution Support: Up to 4K (3840x2160) @ 30Hz
• Max Data Transfer Rate: 10.2 Gbps
• Audio Support: Supports standard and high-definition audio formats (e.g., ARC, Dolby TrueHD, DTS-HD)
• HDCP Support: Yes (HDCP 1.4 compatible)
• Application Environment: Industrial, Outdoor, Harsh Environments
• Housing Material: Robust Composite / Metal
• Color: Black
• Contact Plating: Gold-plated
• Installation Method: Screw-on Panel Mounting
• Operating Temperature Range: -20°C to +80°C
• Certifications: RoHS Compliant

Recommendations

For optimal performance, use with high-speed HDMI cables and ensure proper panel cutout dimensions. This coupler is designed for permanent installations where a reliable, weatherproof connection is required. Always verify compatibility with your devices and environmental conditions.
