EFB Elektronik INFRALAN glasvezel-bulkkabel 12x OM3 50/125 µm LSZH zwart

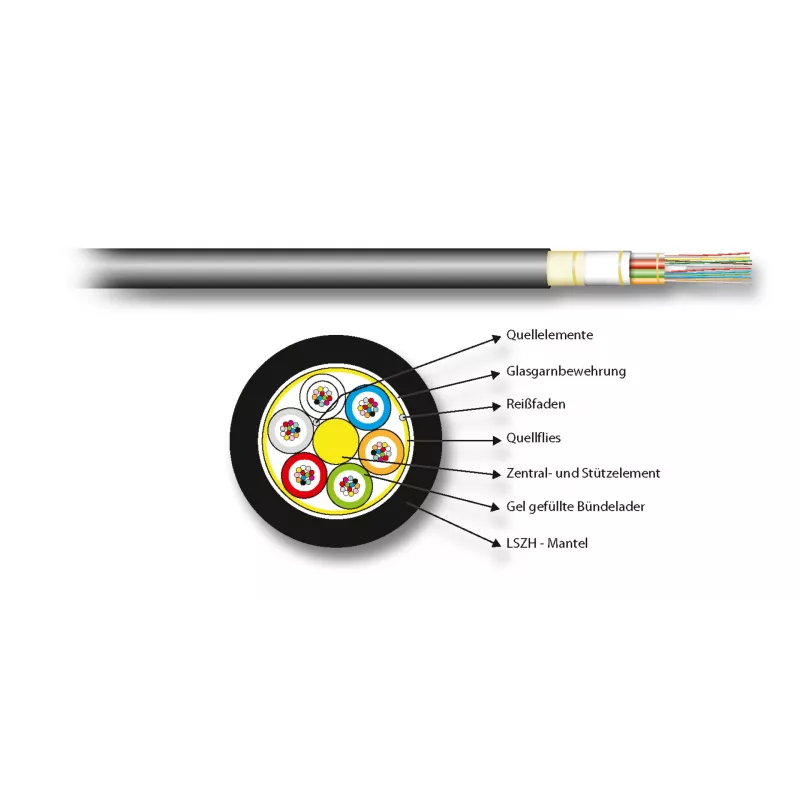

The EFB Elektronik INFRALAN Fiber Optic Bulk Cable is a high-performance loose tube, non-metallic cable designed for universal indoor/outdoor use. With 12 multimode OM3 fibers (50/125 µm), it delivers reliable data transmission for demanding network infrastructures. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, complying with strict fire and smoke regulations.

Advantages

This bulk cable offers excellent tensile strength (2000 N) and robust protection against environmental influences. Its OM3 fiber class supports high-bandwidth applications up to 1500 MHz*km at 850 nm, making it ideal for 10 Gigabit Ethernet and beyond. The halogen-free, flame-retardant design minimizes toxic emissions, enhancing safety in building installations.

Suitable for

• Indoor/outdoor backbone cabling in data centers, office buildings, and industrial facilities
• Fiber-to-the-desk (FTTD) and local area network (LAN) installations
• High-speed data transmission requiring OM3 performance

Key specifications

• Fiber type: Multimode OM3, 12 fibers
• Core/cladding: 50/125 µm
• Jacket: LSZH, black, outer diameter approx. 8.5 mm
• Attenuation: ≤ 2.3 dB/km at 850 nm, ≤ 0.6 dB/km at 1300 nm
• Bandwidth: 1500 MHz*km (850 nm), 500 MHz*km (1300 nm)
• Operating temperature: -20°C to +70°C
• Flame retardancy: IEC 60332-3-24 Cat. C
• Halogen free: IEC 60754-1/2
• Smoke density: IEC 61034-1/2

Recommendations

For optimal performance, use with appropriate connectors (LC, SC, ST, FC) and follow proper installation guidelines. This bulk cable is field-terminable and suitable for both patch cord manufacturing and permanent link installations.
