EFB Elektronik INFRALAN I-B(ZN)BH 4x12E 9/125µm OS2 LSZH geel CPR-B2ca

The EFB Elektronik INFRALAN I-B(ZN)BH 4x12E is a high-performance indoor fiber optic cable designed for reliable single-mode transmission. With 48 fibers arranged in 4 loose tubes of 12 fibers each, this cable meets OS2 standards and features a 9/125 µm core/cladding diameter. The LSZH (Low Smoke Zero Halogen) sheath ensures safety in indoor environments, while the yellow color provides easy identification. Compliant with CPR class B2ca-s1a,d1,a1, it is suitable for building infrastructure.

Advantages

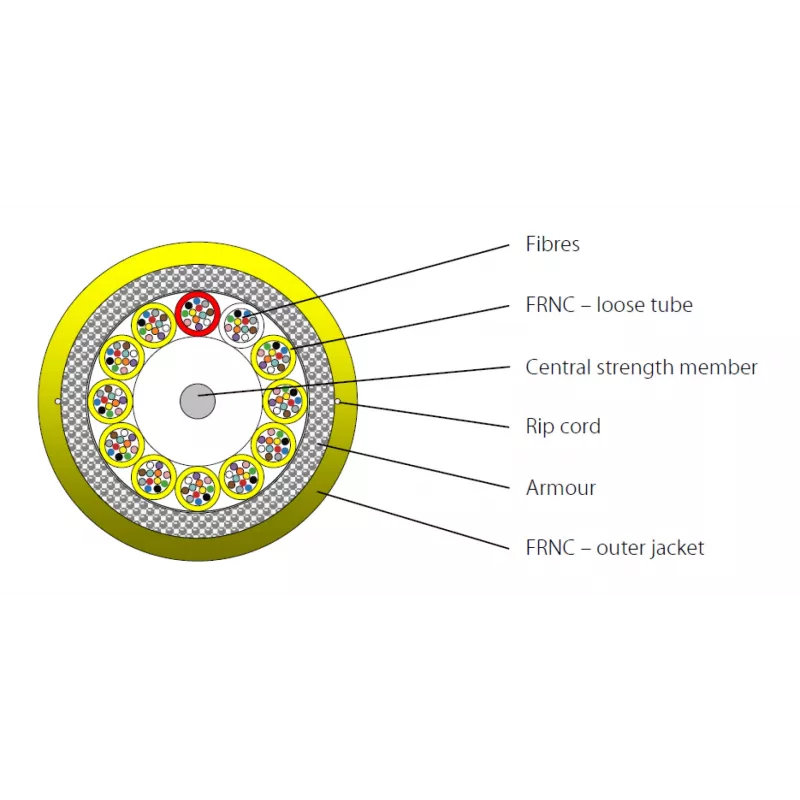

This cable offers low attenuation (≤0.35 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm), ensuring excellent signal integrity over long distances. Its fully dielectric construction eliminates the need for grounding, simplifying installation. The central non-metallic strength member provides robust tensile strength while maintaining flexibility. LSZH material reduces toxic smoke emission in case of fire, enhancing safety.

Suitable for

• Indoor backbone cabling in data centers and enterprise networks
• FTTx (Fiber to the x) applications
• Building riser and horizontal cabling
• High-speed data transmission up to 100 Gbps and beyond

Key specifications

• Fiber type: Single-mode OS2
• Fiber count: 48 (4x12)
• Core/cladding: 9/125 µm
• Sheath material: LSZH
• Sheath color: Yellow
• CPR class: B2ca-s1a,d1,a1
• Outer diameter: approx. 11.0 mm
• Min. bending radius (installation): 220 mm
• Min. bending radius (operation): 110 mm
• Operating temperature: -20°C to +70°C
• Attenuation: ≤0.35 dB/km @1310nm, ≤0.22 dB/km @1550nm

Recommendations

For optimal performance, ensure proper cable management and avoid exceeding the minimum bending radius. Use appropriate connectors (e.g., LC, SC) for termination. This cable is ideal for structured cabling systems requiring high fiber density and fire safety compliance.
