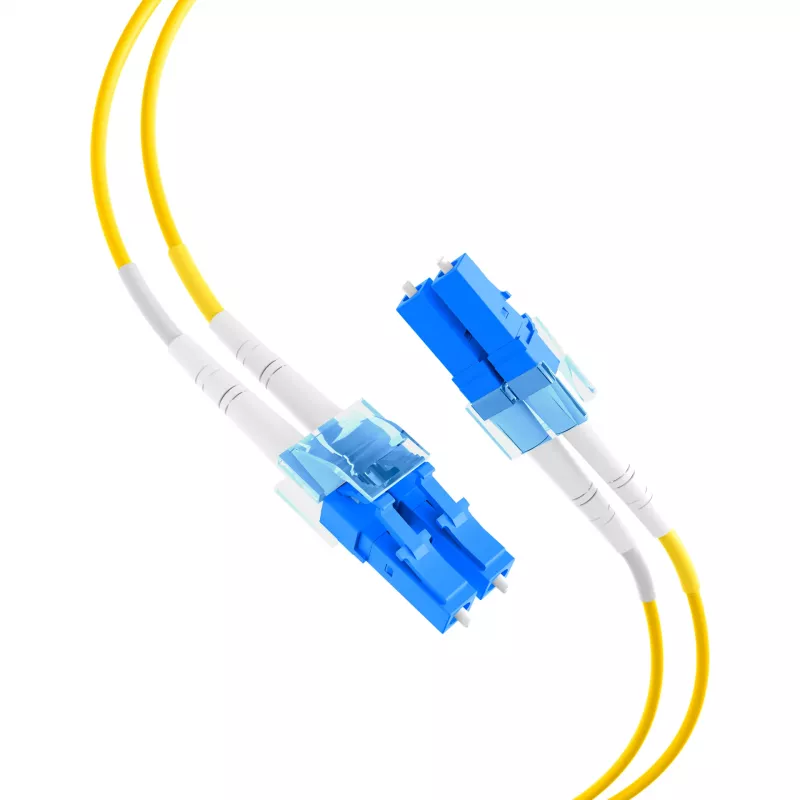

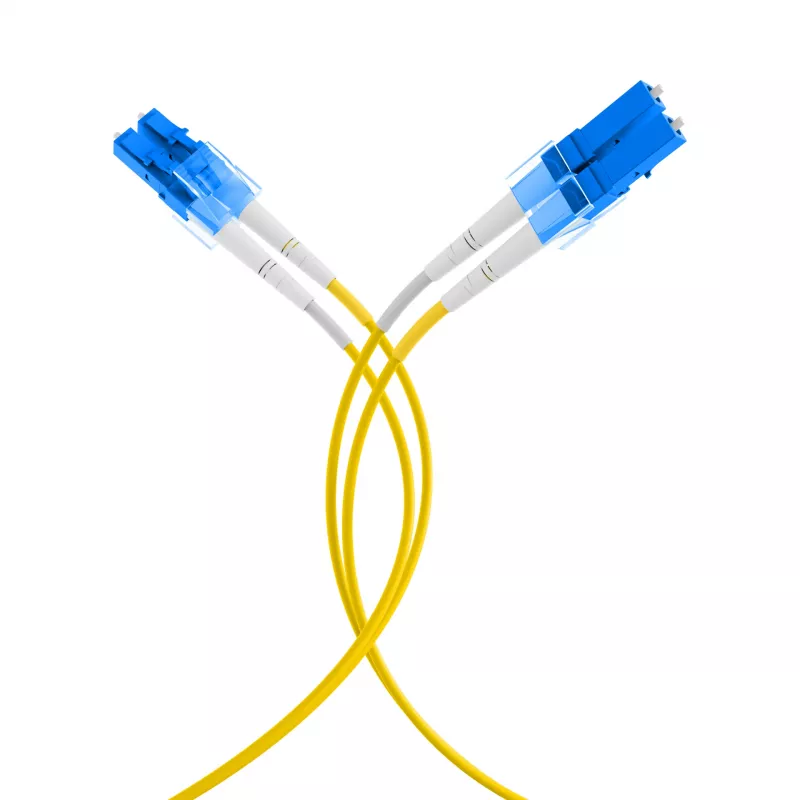

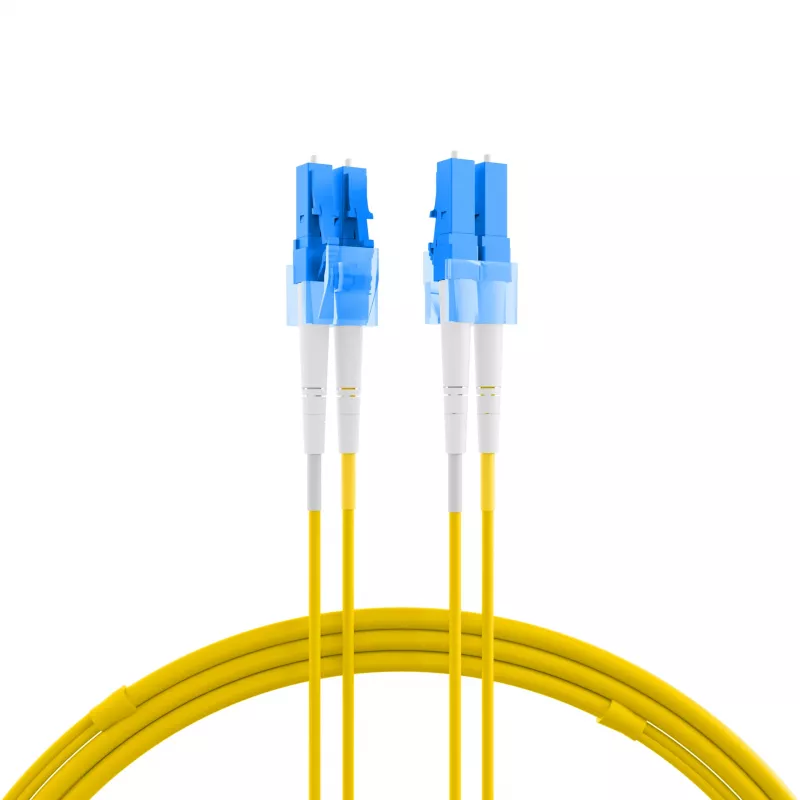

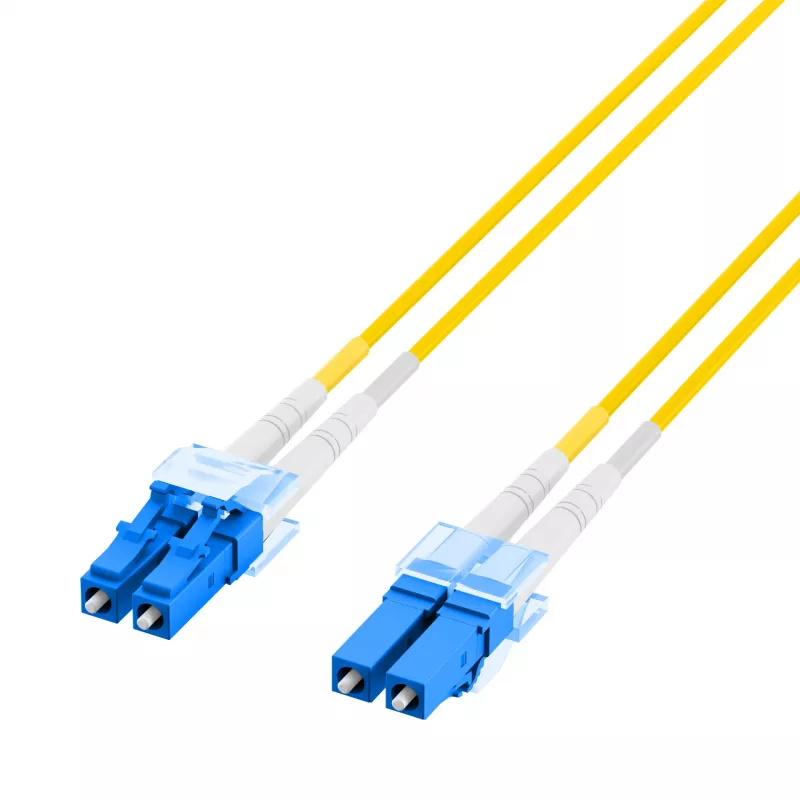

EFB Elektronik IPL-DF-LCULCU-2-0100 - 1 m - OS2 - LC - LC

High-quality fiber optic patch cable from EFB Elektronik, designed for reliable single-mode connections in data centers and telecommunications networks. This duplex LC/UPC to LC/UPC cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

Low insertion loss (≤0.25 dB) and high return loss (≥50 dB) ensure excellent performance. LSZH jacket provides safety in enclosed spaces. Compact 2.0 mm diameter and 10 mm minimum bend radius allow easy installation in tight spaces.

Suitable for

• Data center patching
• Telecommunications networks
• FTTx applications
• LAN and SAN connections

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Single-mode OS2 (G.657.A1/A2)
• Connectors: 2x LC/UPC duplex
• Length: 1 meter
• Jacket: LSZH, yellow
• Insertion loss: ≤0.25 dB
• Return loss: ≥50 dB
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to maintain bend radius.
