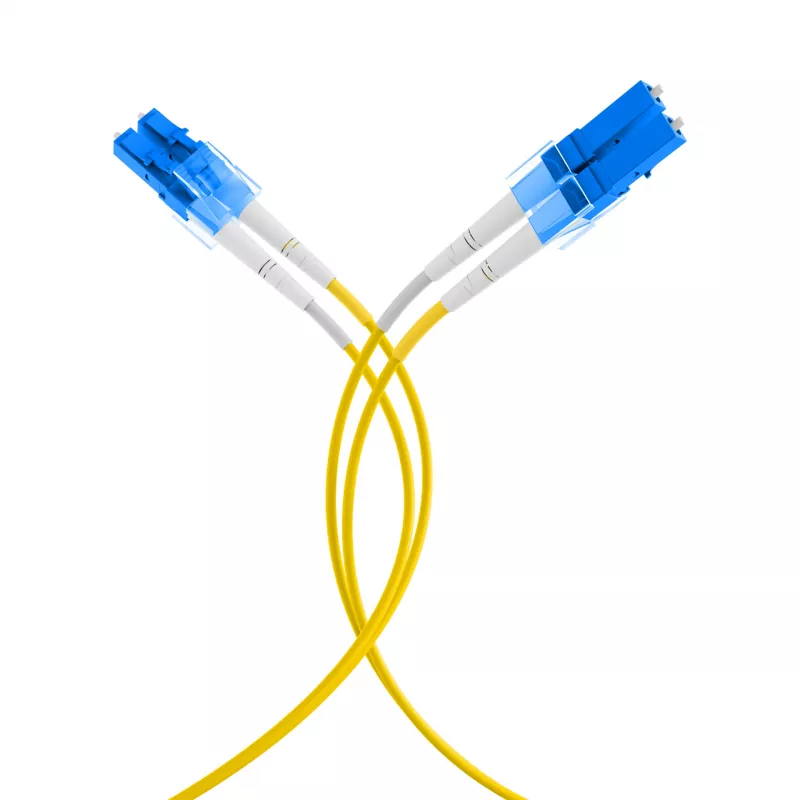

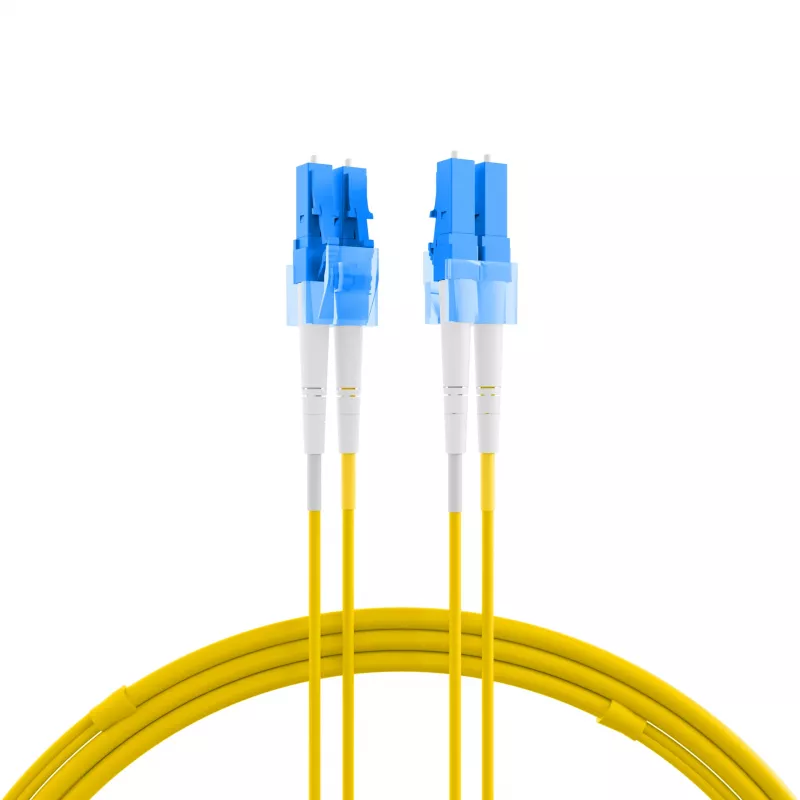

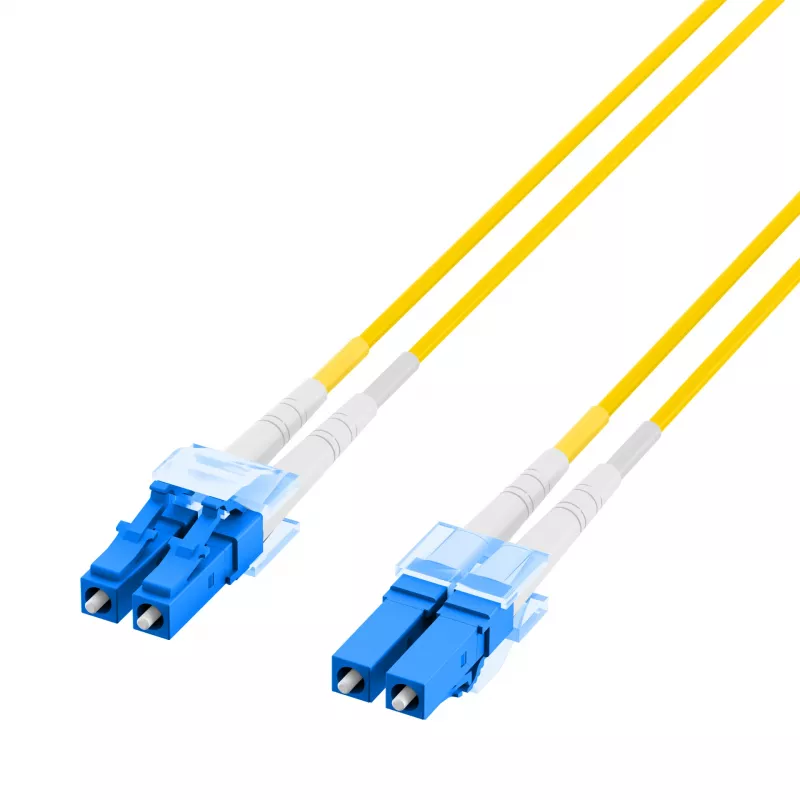

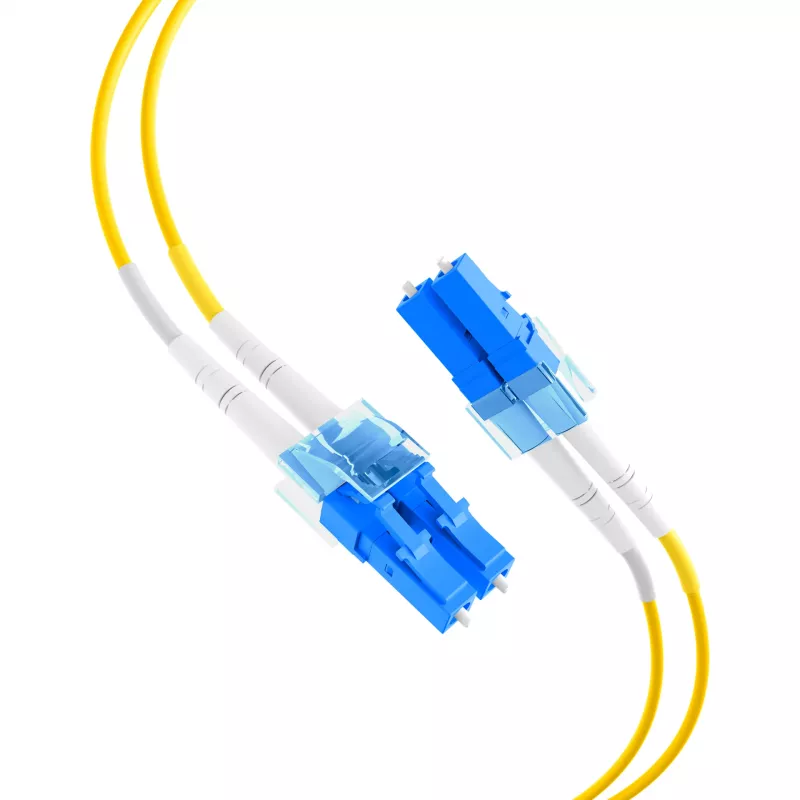

EFB Elektronik IPL-DF-LCULCU-2-1000 glasvezel-patchkabel, 10 m, OS2, LC/UPC naar LC/UPC, duplex, LSZH, geel

The EFB Elektronik IPL-DF-LCULCU-2-1000 is a high-quality fiber optic patch cable designed for reliable single-mode transmission. With a length of 10 meters and duplex LC/UPC connectors, it is ideal for data centers, telecommunications, LAN, and FTTx applications. The cable features ultra-bend insensitive fiber (G.657.A1/A2) and a low smoke zero halogen (LSZH) jacket, ensuring safety and performance in demanding environments.

Advantages

This patch cable offers low insertion loss (≤0.25 dB) and high return loss (≥50 dB), ensuring excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The 2.0 mm diameter and yellow color provide easy identification and flexibility.

Suitable for

• Data centers
• Telecommunications networks
• Local area networks (LAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Cable type: Fiber optic patch cable
• Fiber type: Single-mode (OS2)
• Fiber class: G.657.A1/A2 (ultra-bend insensitive)
• Connectors: LC/UPC to LC/UPC, duplex
• Length: 10 m
• Number of fibers: 2
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Yellow
• Cable diameter: 2.0 mm
• Insertion loss: ≤0.25 dB
• Return loss: ≥50 dB
• Polarity: A-B (cross-over)
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C
• Ferrule material: Zirconia ceramic
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC/UPC interfaces and is suitable for both patch panels and direct connections.
