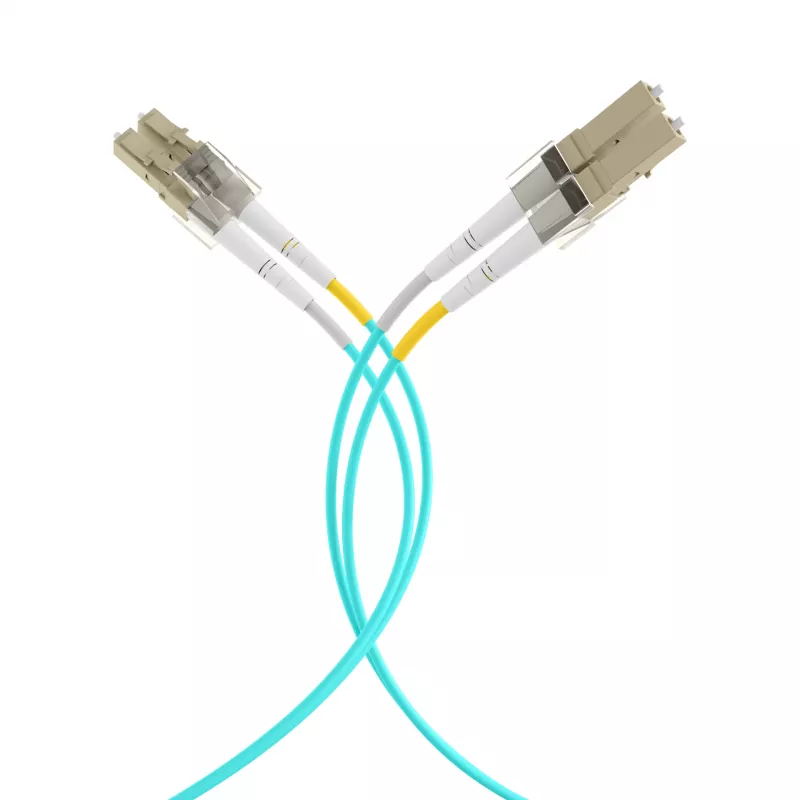

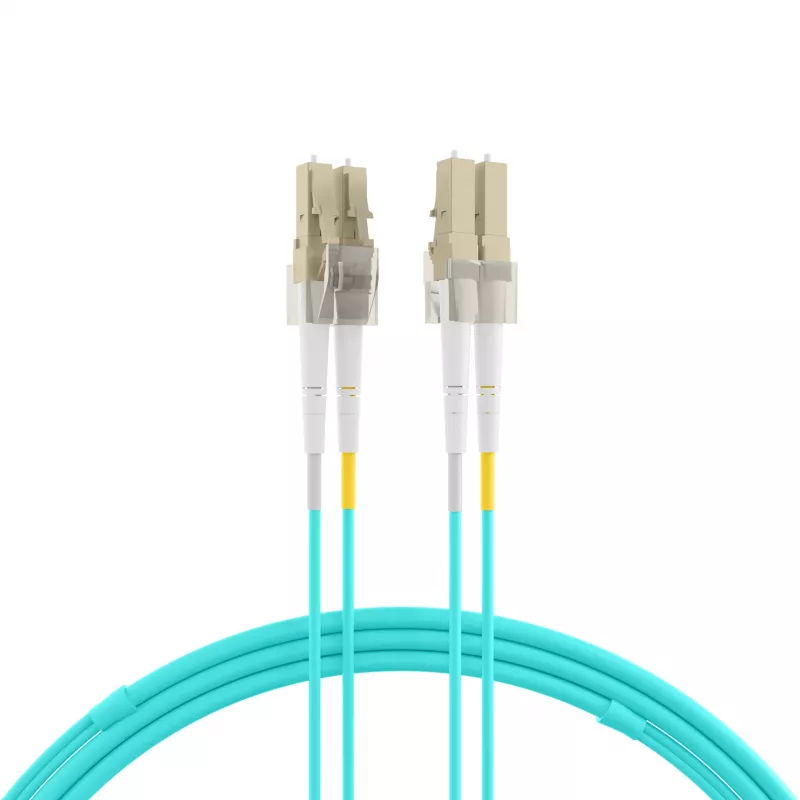

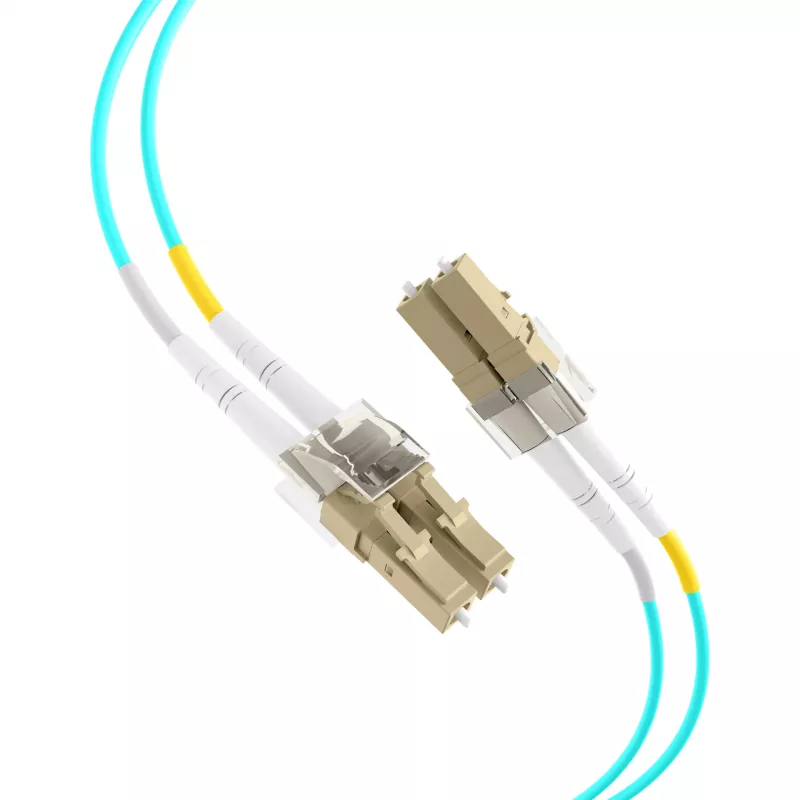

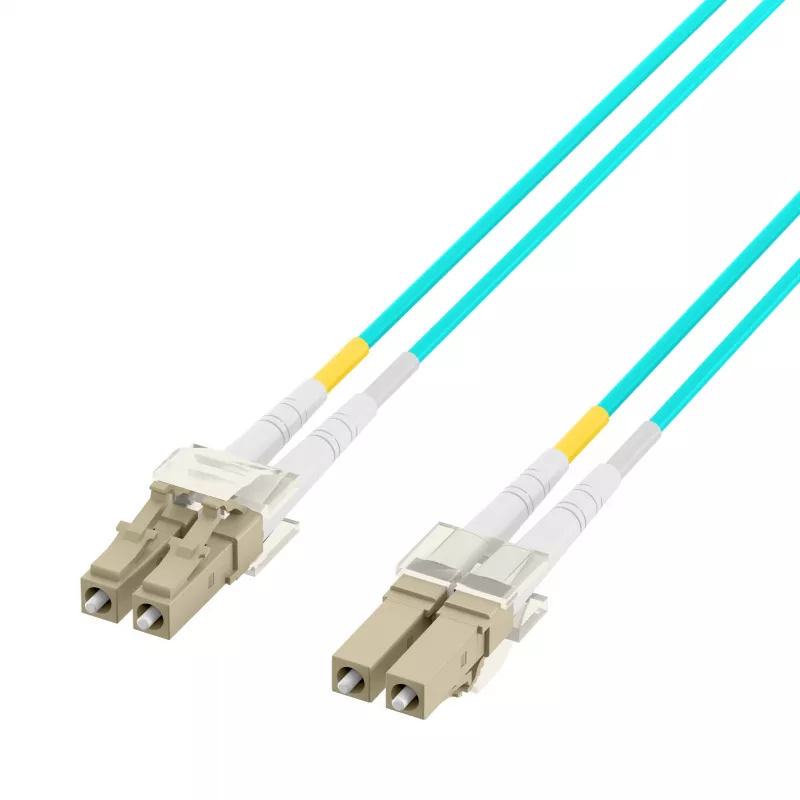

EFB Elektronik IPL-DF-LCULCU-3-1000 glasvezel-patchkabel, 10 m, OM3, LC/UPC naar LC/UPC, duplex, LSZH, aqua

The EFB Elektronik IPL-DF-LCULCU-3-1000 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 10 meters and OM3 multimode fiber, this duplex cable supports high-bandwidth applications up to 10 Gbps. The LC/UPC connectors ensure low insertion loss and high return loss, making it ideal for data centers, enterprise networks, and telecommunications.

Advantages

This patch cable offers exceptional signal integrity with insertion loss ≤0.3 dB and return loss ≥30 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. The aqua-colored jacket allows for easy identification of OM3 fiber. The duplex configuration supports bidirectional communication, and the 50/125 µm core/cladding ensures compatibility with standard multimode equipment.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunication systems
• High-speed fiber optic links (up to 10 Gbps)
• Backbone and horizontal cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM3
• Core/Cladding: 50/125 µm
• Connectors: LC/UPC to LC/UPC
• Configuration: Duplex
• Length: 10 m
• Jacket Material: LSZH
• Jacket Color: Aqua
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC-A

Recommendations

For optimal performance, ensure that the connectors are clean before installation. This cable is compatible with standard LC/UPC ports. Store in a clean, dry environment within the specified temperature range.
