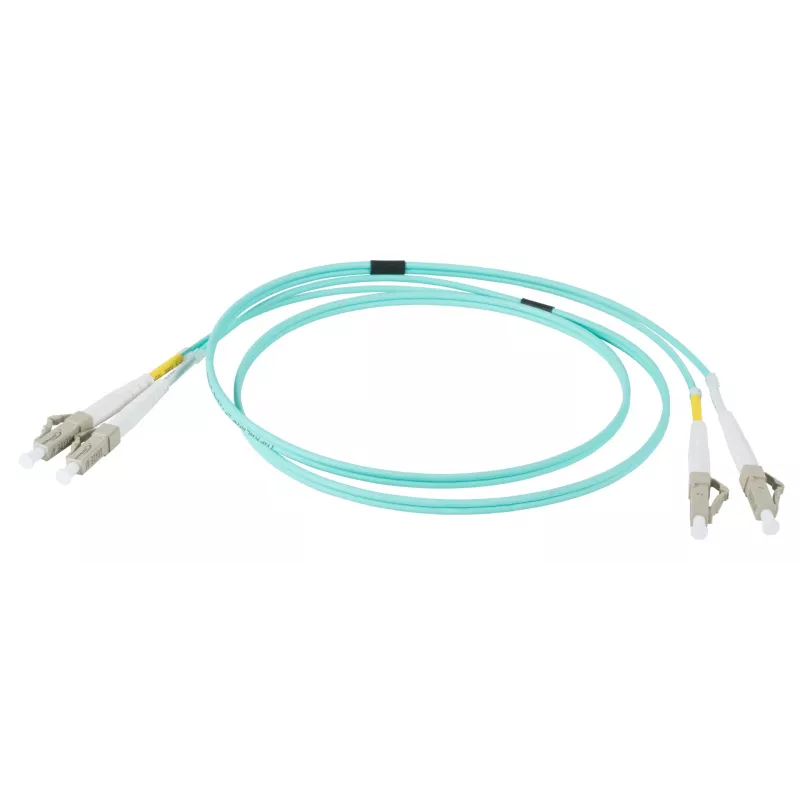

EFB Elektronik IPL-DR-LCULCU-3-0050 glasvezel-patchkabel, 0,5 m, OM3, LC duplex, aqua

The EFB Elektronik IPL-DR-LCULCU-3-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters, this OM3 multimode cable features duplex LC connectors on both ends, making it ideal for 10 Gigabit Ethernet and Fibre Channel applications in data centers and enterprise networks.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The aqua-colored jacket allows for easy identification of OM3 fiber infrastructure.

Suitable for

• 10 Gigabit Ethernet (10GBASE-SR, 10GBASE-LRM)
• Fibre Channel (8GFC, 16GFC)
• Data center interconnects
• High-speed storage area networks (SAN)
• Telecommunications and enterprise networks

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connector Type A: LC Duplex
• Connector Type B: LC Duplex
• Cable Length: 0.5 m
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Aqua
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 30 dB
• Attenuation at 850nm: ≤ 2.5 dB/km
• Attenuation at 1300nm: ≤ 0.8 dB/km
• Bandwidth at 850nm: 1500 MHz·km
• Bandwidth at 1300nm: 500 MHz·km
• Operating Temperature: -20°C to 70°C
• Cable Diameter: Approx. 3.0 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that the connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use in patch panels, switches, and servers. Pair with OM3-rated transceivers for best results.
