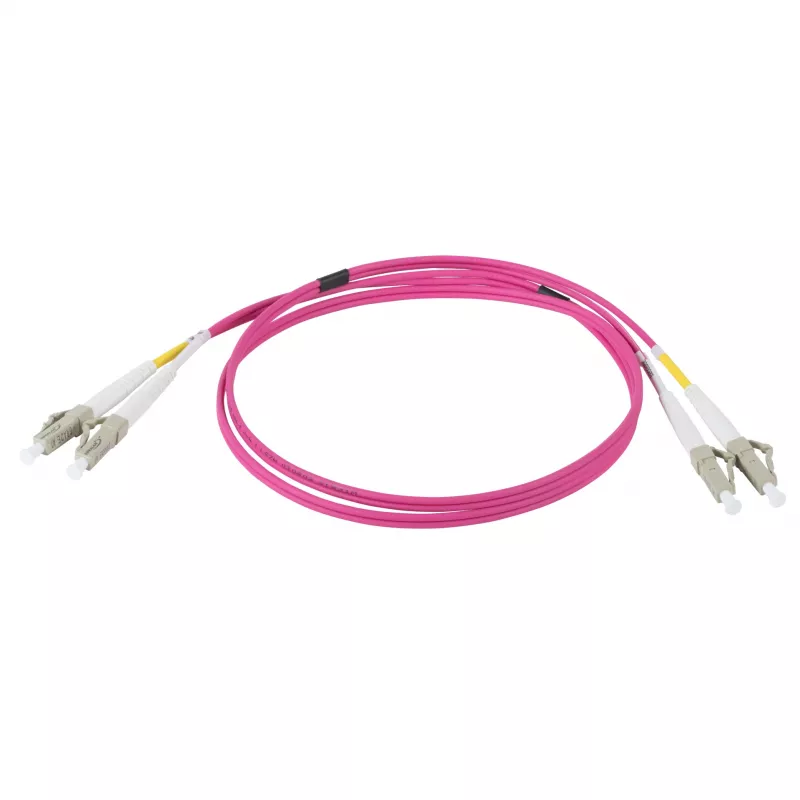

EFB Elektronik IPL-DR-LCULCU-4-0200 - 2 m - I-V(ZN) H - OM4 - LC - LC glasvezel-patchkabel

The EFB Elektronik IPL-DR-LCULCU-4-0200 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 2 meters and OM4 multimode fiber, this duplex cable features LC/UPC connectors on both ends, ensuring low insertion loss and high return loss for optimal signal integrity. The cable construction I-V(ZN) H (Indoor/Outdoor, Non-metallic, Central Loose Tube) provides durability and flexibility for various installations.

Advantages

This patch cable offers exceptional bandwidth and low attenuation, making it ideal for high-speed data centers and enterprise networks. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire. The aqua-colored jacket ensures easy identification of OM4 fiber.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications
• High-speed data transmission up to 40 Gbps and beyond

Key specifications

• Fiber Type: Multimode OM4
• Connector Type: LC/UPC to LC/UPC
• Cable Length: 2 m
• Number of Fibers: 2 (Duplex)
• Core/Cladding Diameter: 50/125 µm
• Jacket Material: LSZH
• Jacket Color: Aqua
• Cable Construction: I-V(ZN) H
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 30 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Operating Temperature: -20°C to 70°C
• Standards: IEC 60794-2, TIA/EIA-568-C.3, RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper handling to maintain low insertion loss. Suitable for both indoor and outdoor use in protected environments.
