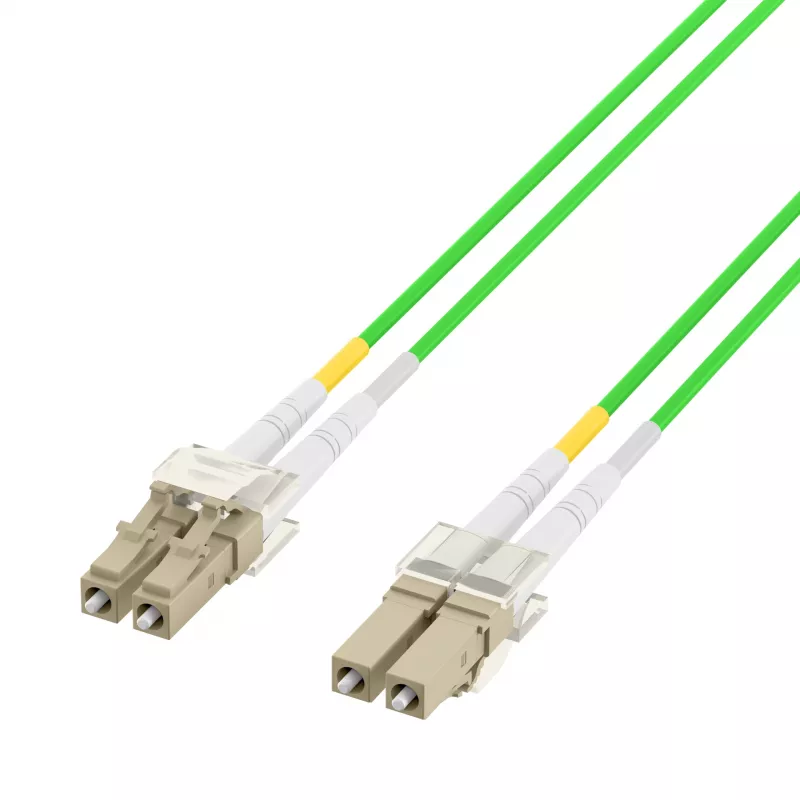

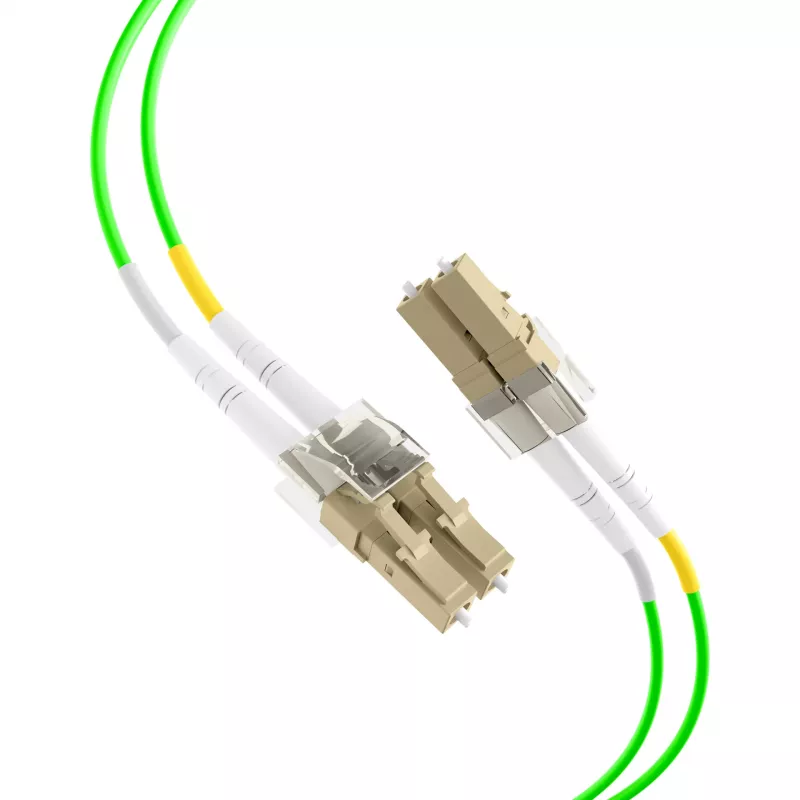

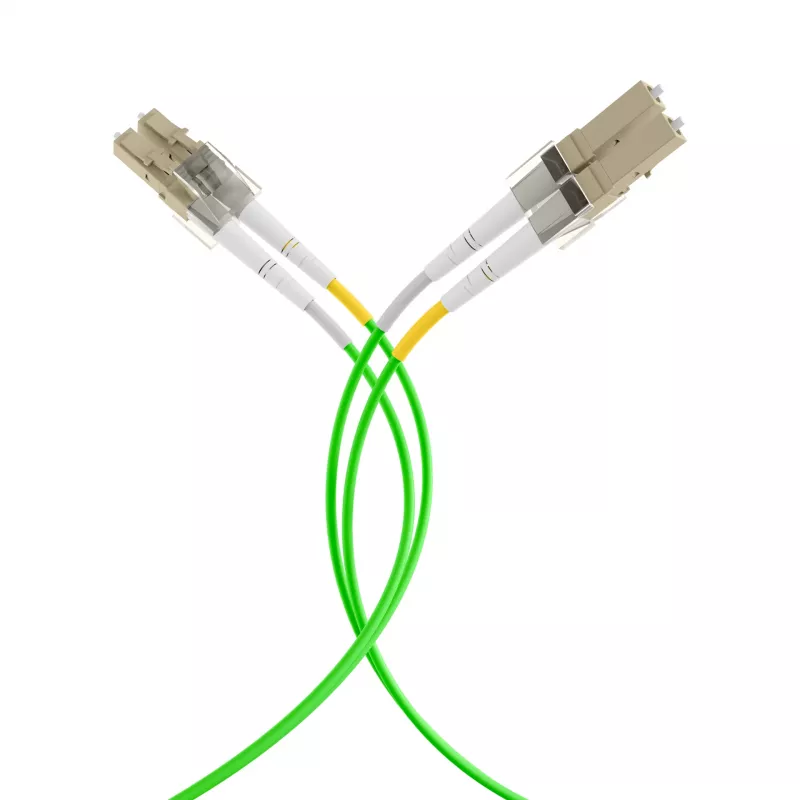

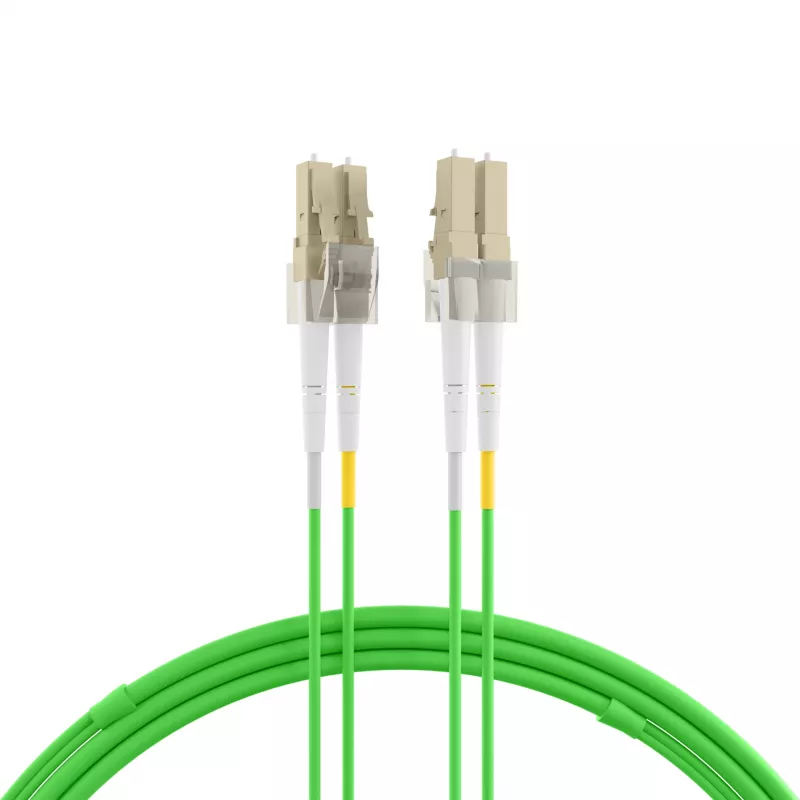

EFB Elektronik IPL-DR-LCULCU-5-0500 glasvezel-patchkabel, OM5, LC/UPC naar LC/UPC, 5 m, LSZH, limoengroen

The EFB Elektronik IPL-DR-LCULCU-5-0500 is a high-performance fiber optic patch cable designed for demanding data center, SAN, and LAN applications. With OM5 laser-optimized multimode fiber, it supports high-bandwidth transmission for 40G and 100G Ethernet. The cable features LC/UPC duplex connectors on both ends, a 5-meter length, and a lime green LSZH jacket for safety and easy identification.

Advantages

OM5 fiber provides superior bandwidth over traditional OM3/OM4, supporting multiple wavelengths for future-proof network infrastructure. The LSZH jacket ensures low smoke and zero halogen, making it safe for use in confined spaces. Duplex zipcord construction offers flexibility and easy installation.

Suitable for

• Data centers
• Storage area networks (SANs)
• Local area networks (LANs)
• 40G/100G Ethernet connections
• High-speed fiber optic links

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber type: Multimode OM5
• Connectors: LC/UPC Duplex to LC/UPC Duplex
• Length: 5 m (16.4 ft)
• Core/Cladding: 50/125 µm
• Number of fibers: 2 (Duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Lime Green
• Cable construction: Duplex Zipcord
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 30 dB
• Bandwidth (850 nm): 2800 MHz·km
• Bandwidth (953 nm): 4700 MHz·km
• Wavelength support: 850 nm, 953 nm, 1300 nm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed data transmission in enterprise networks.
