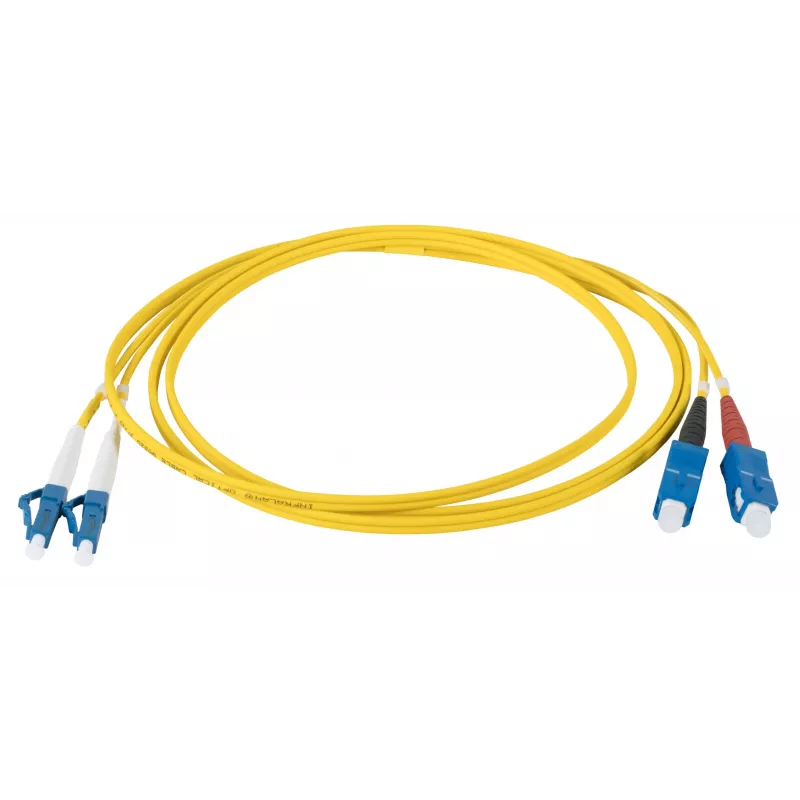

EFB Elektronik IPL-DR-LCUSCU-2-0200 glasvezel-patchkabel OS2 2m LC-SC duplex LSZH geel

The EFB Elektronik IPL-DR-LCUSCU-2-0200 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers and telecommunication networks. With a length of 2 meters, it features LC to SC duplex connectors and OS2 fiber class, ensuring low insertion loss and high return loss for optimal signal integrity.

Advantages

This cable offers exceptional performance with typical insertion loss <0.3 dB and return loss >50 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The yellow jacket color ensures easy identification for single-mode applications.

Suitable for

• Data centers requiring high-speed, reliable connections
• Telecommunication networks
• LAN infrastructure
• FTTx and premise cabling

Key specifications

• Fiber Mode: Single-mode
• Fiber Class: OS2
• Connector A: LC Duplex
• Connector B: SC Duplex
• Core/Cladding Diameter: 9/125 µm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Length: 2 m
• Insertion Loss (Typical): <0.3 dB
• Return Loss (Typical): >50 dB
• Polishing Type: UPC
• Operating Temperature: -20°C to 70°C
• Standards: IEC 61753-1, TIA/EIA-568-C.3, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for backbone cabling and high-speed data transmission up to 10 Gbps and beyond.
