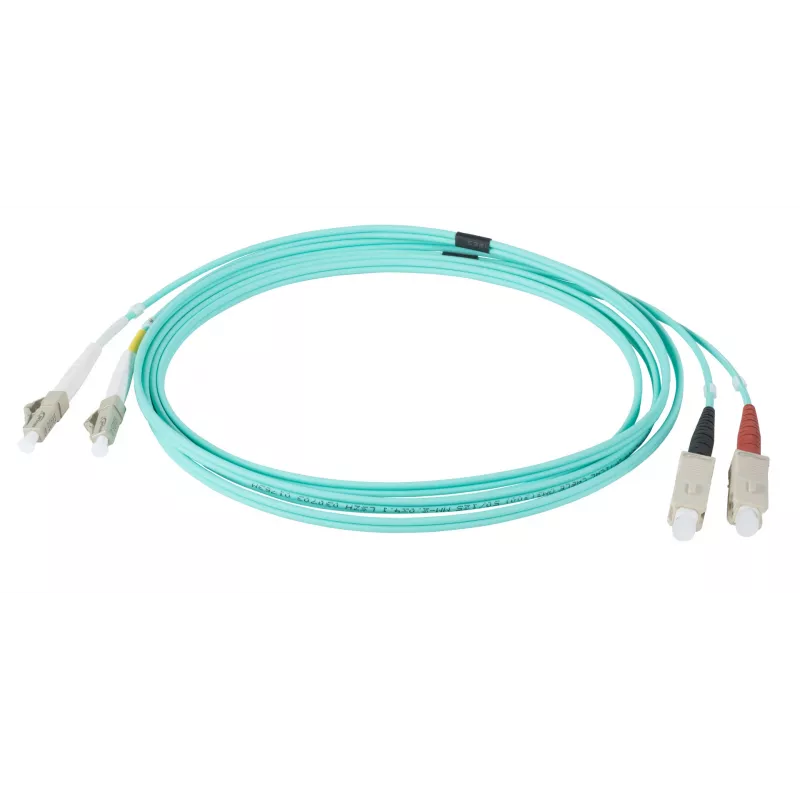

EFB Elektronik IPL-DR-LCUSCU-3-0500 glasvezel-patchkabel, OM3, LC/SC, 5 m, aqua

The EFB Elektronik IPL-DR-LCUSCU-3-0500 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With OM3 multimode fiber and duplex LC to SC connectors, this 5-meter cable supports high-speed applications up to 10 Gbps over 300 meters and is ideal for data centers, LAN, SAN, and FTTx installations.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring signal integrity and minimal data errors. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. Its aqua-colored jacket allows for easy identification of OM3 fiber.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx) deployments

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Multimode OM3
• Connectors: LC/UPC to SC/UPC, Duplex
• Length: 5 m
• Core/Cladding: 50/125 µm
• Jacket: LSZH, Aqua
• Data rate: Up to 10 Gbps (300 m), 40/100 Gbps (shorter)
• Insertion loss: ≤0.3 dB typical
• Return loss: ≥30 dB typical
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Pair with OM3-rated transceivers for best results.
