EFB Elektronik lasbox SC 50/125 µm OM4 uitschuifbaar, 24 pigtails offset / 12 koppelingen

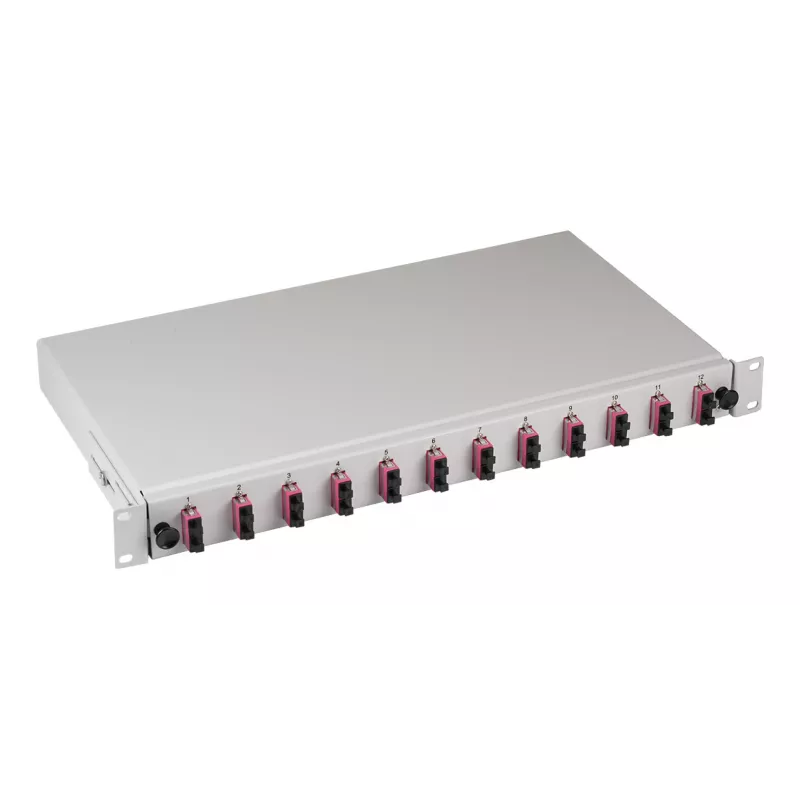

The EFB Elektronik Splice Box BA71203L24OM4 is a high-quality fiber optic splice box designed for professional network installations. It features an extendable tray with 24 pre-assembled pigtails and 12 SC duplex adapters, supporting OM4 multimode fibers with 50/125 µm core/cladding diameter. Ideal for data centers, LAN, SAN, and telecommunications applications, this rack-mountable unit ensures reliable and organized fiber management.

Advantages

Pre-assembled pigtails reduce installation time and minimize splicing errors. The sliding tray provides easy access for maintenance and future upgrades. Compact design saves rack space while accommodating up to 24 fibers.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone
• Storage area network (SAN) connectivity
• Telecommunications infrastructure

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Type: Multimode OM4
• Core/Cladding: 50/125 µm
• Pigtail Connector: SC
• Adapter Connector: SC Duplex
• Number of Pigtails: 24
• Number of Adapters: 12
• Total Fiber Capacity: 24
• Design: Sliding / Extractable Tray
• Mounting: Rack Mount
• Pre-assembled: Yes

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper fiber cleaning before connection. Compatible with standard 19-inch racks.
