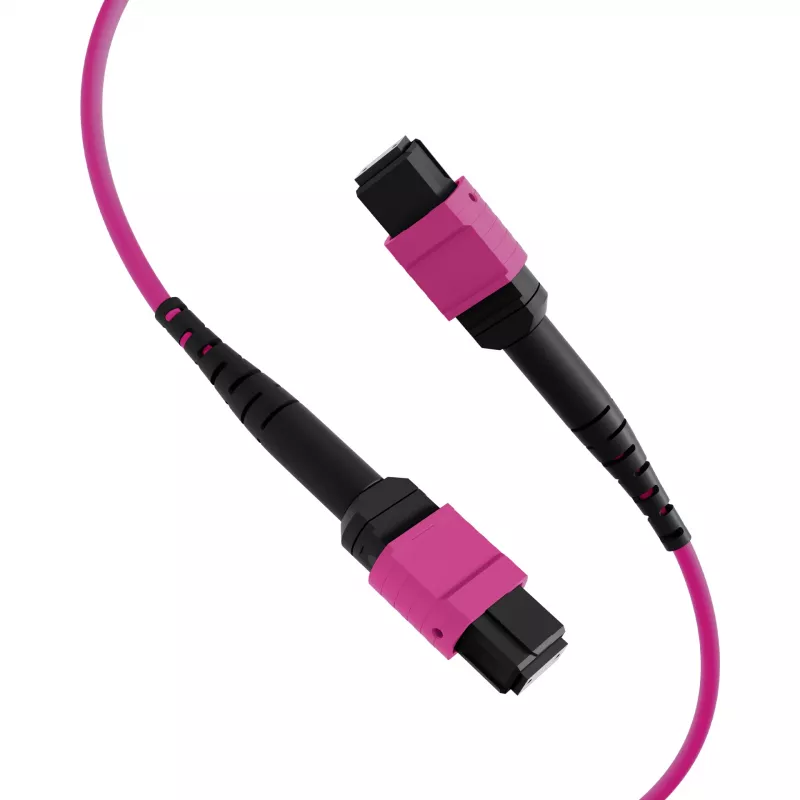

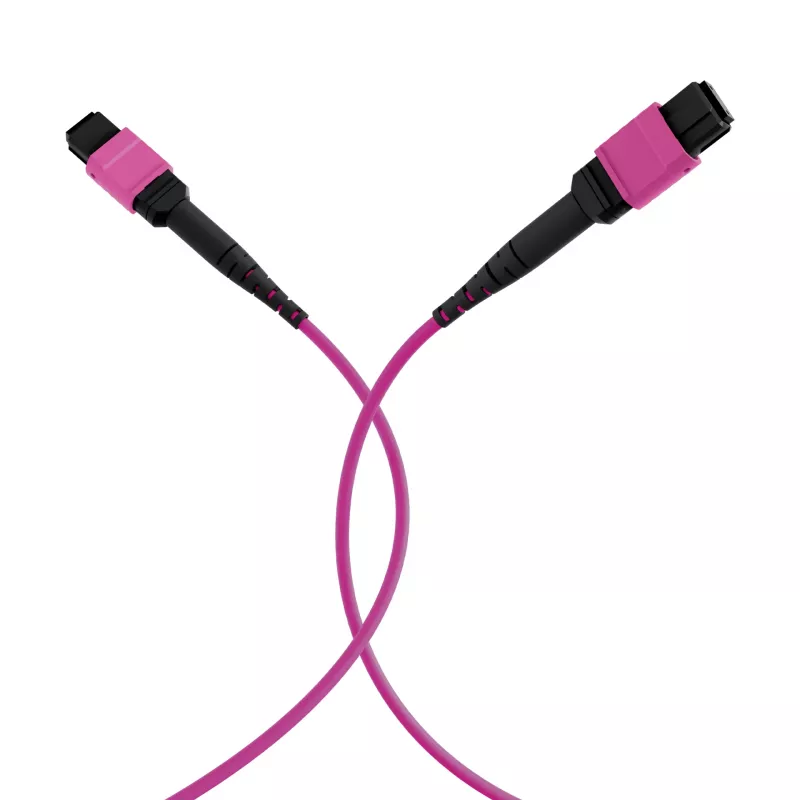

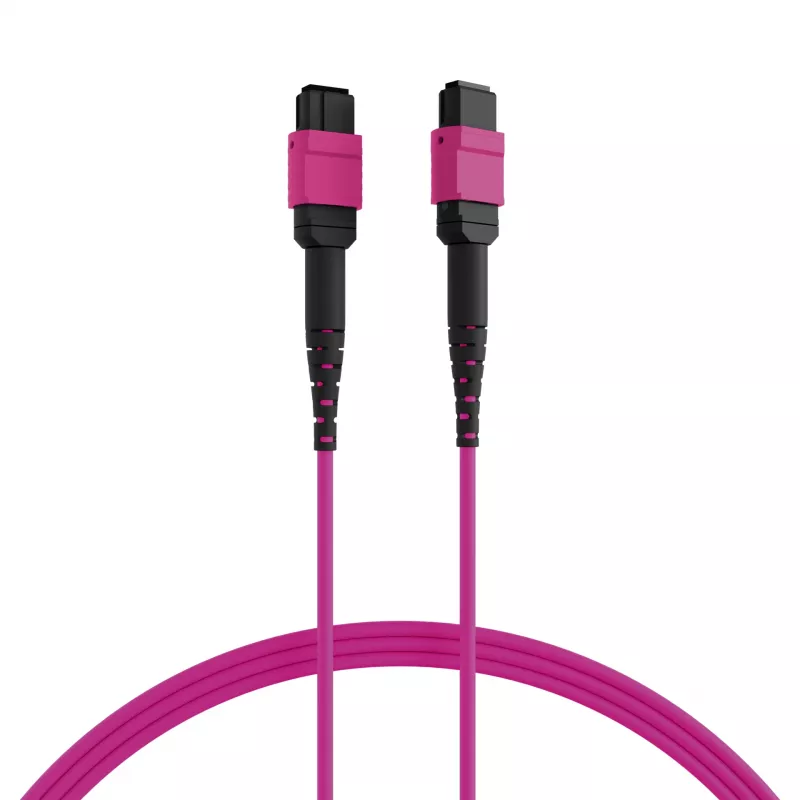

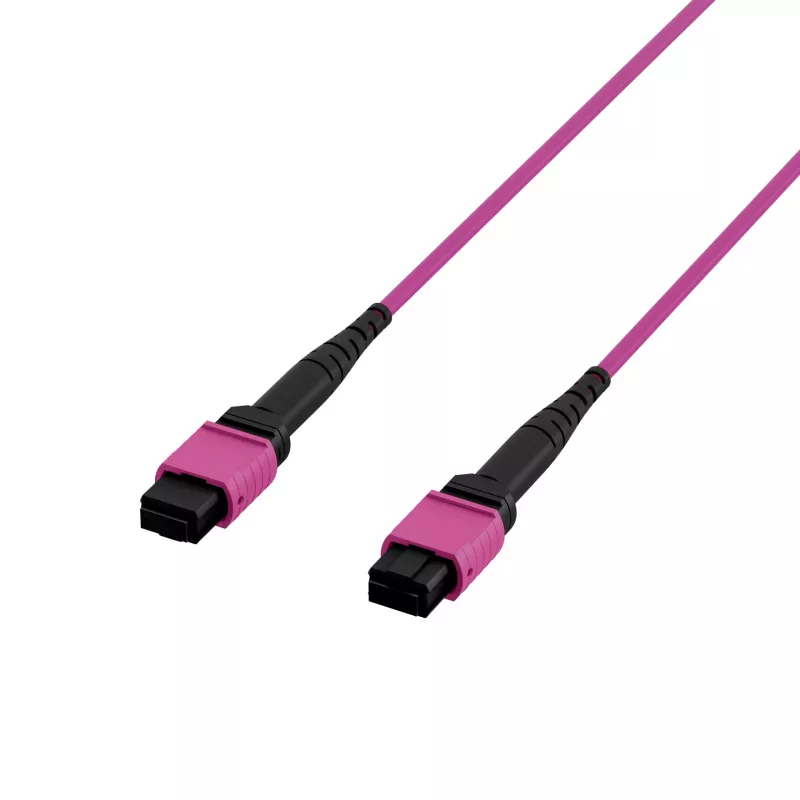

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 12 vezels type B LSZH erikaviolet 10m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and high-density cabling environments. With OM4 multimode fiber, 12 fibers, and MPO-PLUS female connectors on both ends, this cable ensures reliable, high-speed data transmission over 10 meters. The Type B polarity (crossed) is ideal for parallel optics applications. The LSZH (Low Smoke Zero Halogen) jacket provides safety in confined spaces, and the heather violet color aids in easy identification.

Advantages

This patch cable offers exceptional insertion loss (≤0.35 dB) and return loss (≥20 dB), ensuring minimal signal degradation. The MPO-PLUS connectors are designed for high-density patching, saving space and simplifying cable management. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for use in public and commercial buildings. The 12-fiber count supports high-bandwidth applications like 40G and 100G Ethernet.

Suitable for

• Data centers
• High-density cabling systems
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Parallel optics applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Polarity: Type B (Crossed)
• Cable Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Heather Violet (Erika-Violet)
• Insertion Loss (Max): ≤ 0.35 dB
• Return Loss (Min): ≥ 20 dB
• Wavelength: 850 nm / 1300 nm
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -20°C to +70°C
• Standards: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH
• Connector Ferrule: PC (Physical Contact)
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure that connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is ideal for high-speed data transmission in structured cabling systems.
