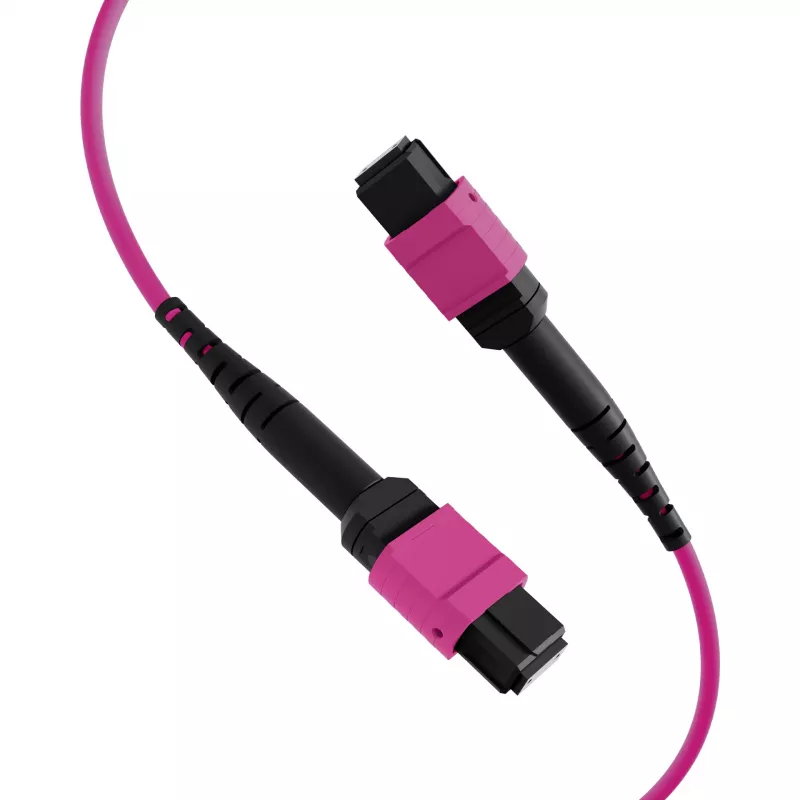

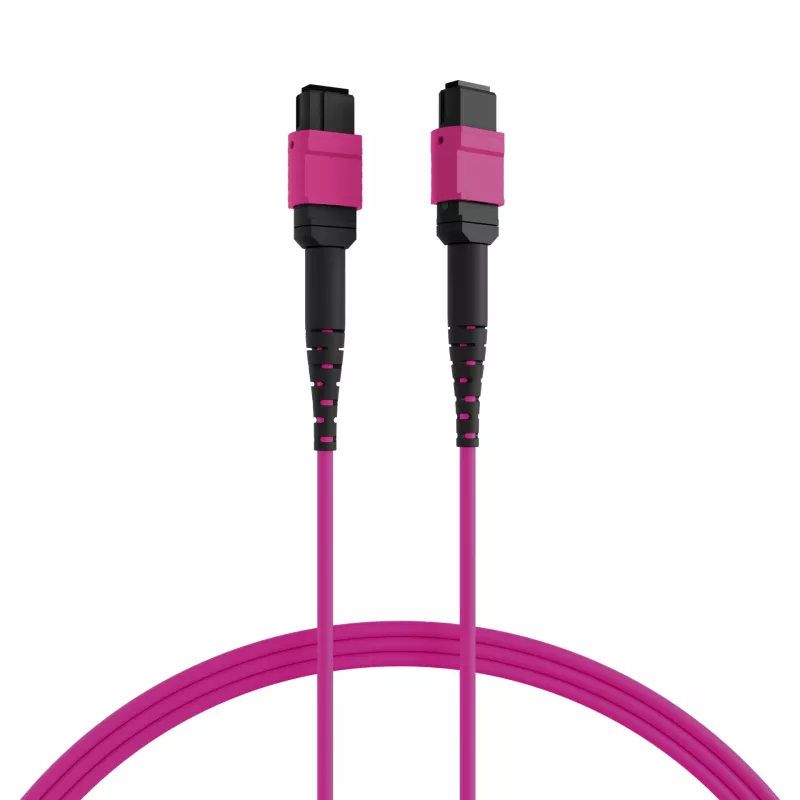

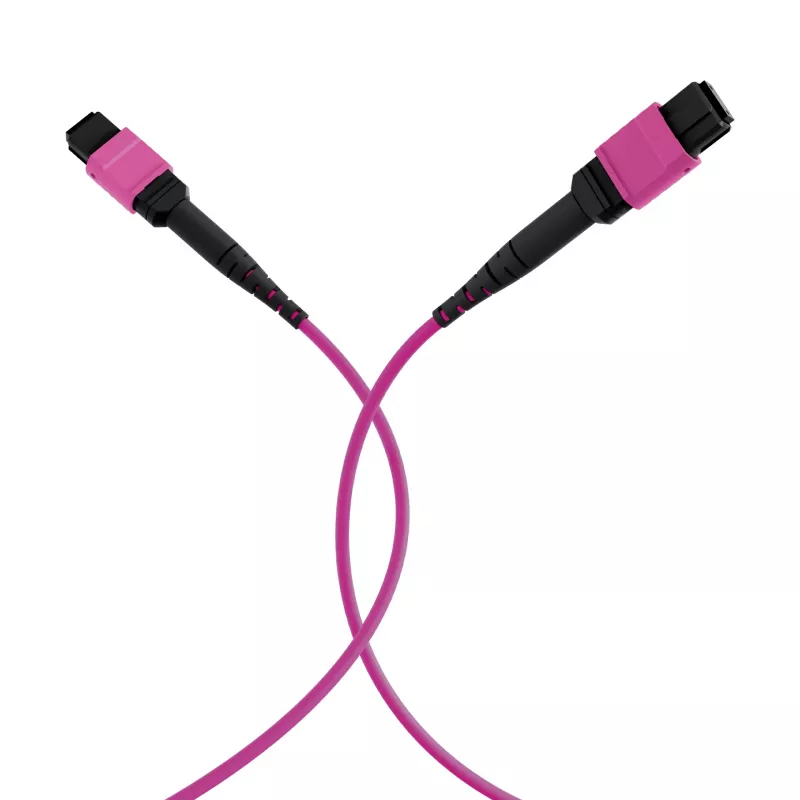

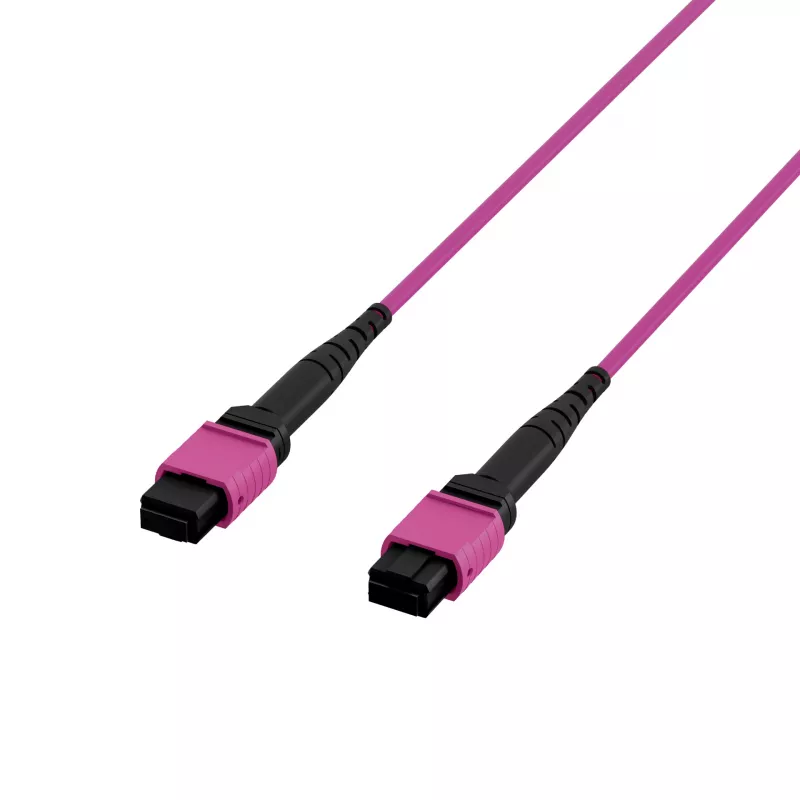

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 12 vezels type B LSZH heather violet 1m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable OM4 12 Fibers Type B LSZH Heather Violet 1m is a high-performance fiber optic patch cable designed for data center, SAN, LAN, and high-speed networking applications. It features MPO-PLUS female connectors on both ends, 12 multimode OM4 fibers, and a Type B (cross-over) polarity. The cable is constructed with a LSZH (Low Smoke Zero Halogen) jacket in heather violet, ensuring safety and easy identification.

Advantages

This patch cable offers reliable 100 Gbps data transmission over short distances, with low insertion loss (≤0.35 dB typical) and high return loss (≥20 dB typical). The MPO-PLUS connectors provide high-density connectivity, saving space in patch panels and equipment. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it suitable for confined spaces.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• Local area networks (LAN)
• High-speed networking (40GBASE-SR4, 100GBASE-SR4)
• Backbone cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4 (50/125 µm)
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Fiber Count: 12 Fibers
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Jacket Color: Heather Violet
• Cable Length: 1 meter
• Maximum Data Rate: 100 Gbps
• Insertion Loss (Typical): ≤ 0.35 dB
• Return Loss (Typical): ≥ 20 dB
• Operating Wavelengths: 850nm / 1300nm
• Standards: TIA/EIA-568-C.3, IEC 61754-7, RoHS, REACH
• Connector Ferrule Material: Zirconia Ceramic
• Connector Keying: Key-Up to Key-Down (for Type B)

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO-PLUS female ports. Avoid sharp bends and excessive pulling to maintain signal integrity. This cable is ideal for high-density environments where space and performance are critical.
