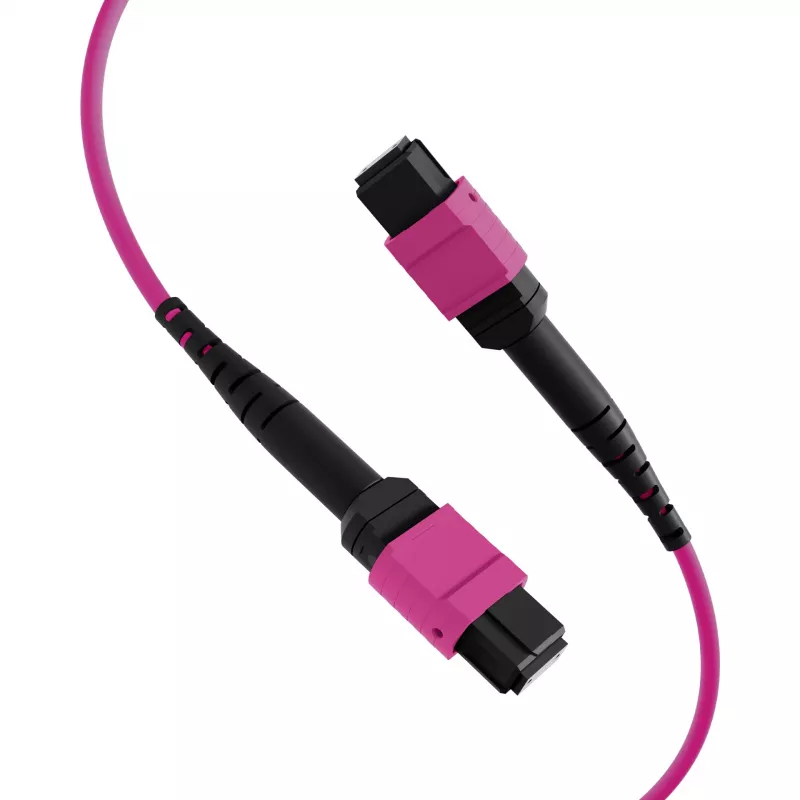

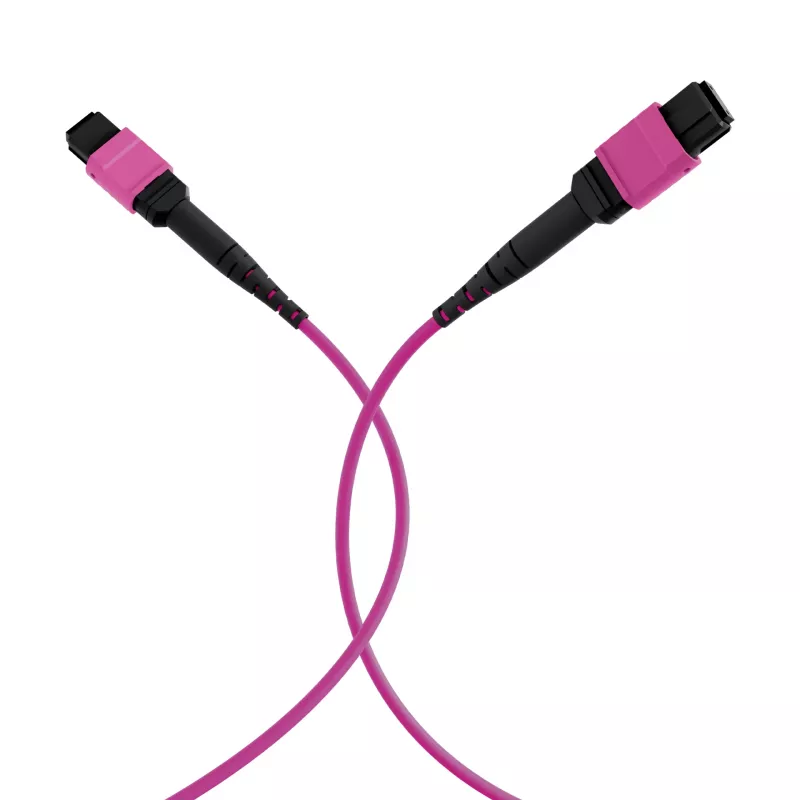

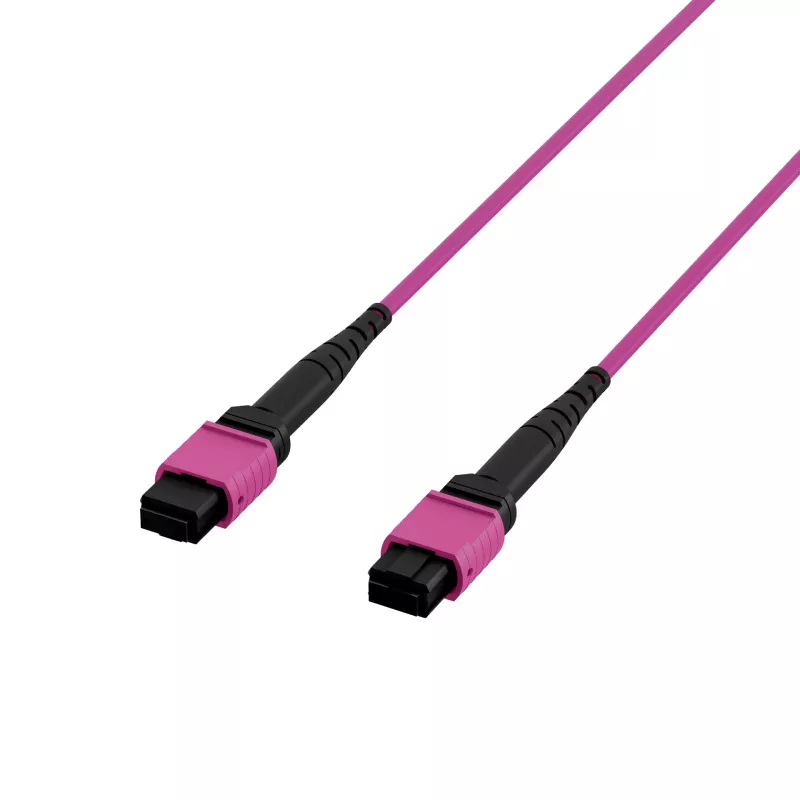

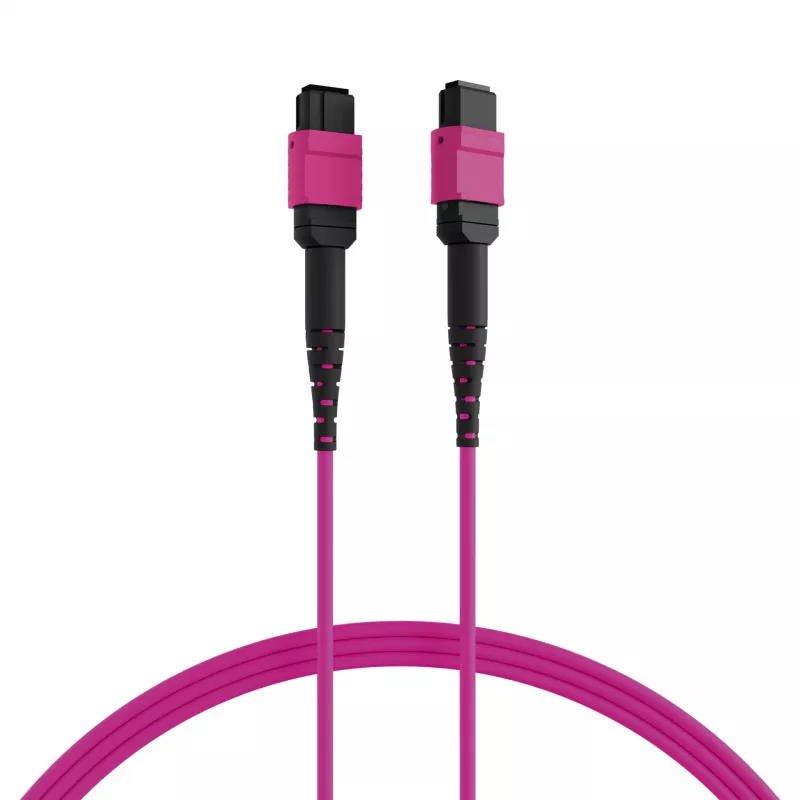

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 8 vezels type B LSZH erikaviolet 15m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring 8 multimode OM4 fibers with MPO-PLUS female connectors on both ends, this cable ensures reliable high-speed data transmission over short to medium distances. The Type B polarity (cross-over) configuration is ideal for parallel optics applications. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the erika violet color allows for easy identification.

Advantages

This patch cable offers low insertion loss (max 0.35 dB per connector pair) and high return loss (min 20 dB), ensuring excellent signal integrity. The OM4 fiber type supports high bandwidth applications such as 40G and 100G Ethernet. The LSZH jacket reduces toxic smoke emissions in case of fire, making it suitable for use in data centers and other indoor installations. The 8-fiber count enables efficient parallel transmission, reducing cable clutter.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Parallel optics applications (e.g., 40GBASE-SR4, 100GBASE-SR10)
• High-speed computing clusters

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 8 Fibers
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Cable Length: 15 m
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Insertion Loss (Max): 0.35 dB (per connector pair)
• Return Loss (Min): 20 dB
• Cable Diameter: 3.0 mm
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Compliance: RoHS, REACH
• Attenuation @ 850nm: 3.0 dB/km
• Attenuation @ 1300nm: 1.0 dB/km

Recommendations

For optimal performance, ensure that the MPO connectors are properly cleaned before each use. This cable is compatible with standard MPO adapters and cassettes. It is recommended for use in structured cabling systems requiring high-density fiber connectivity.
