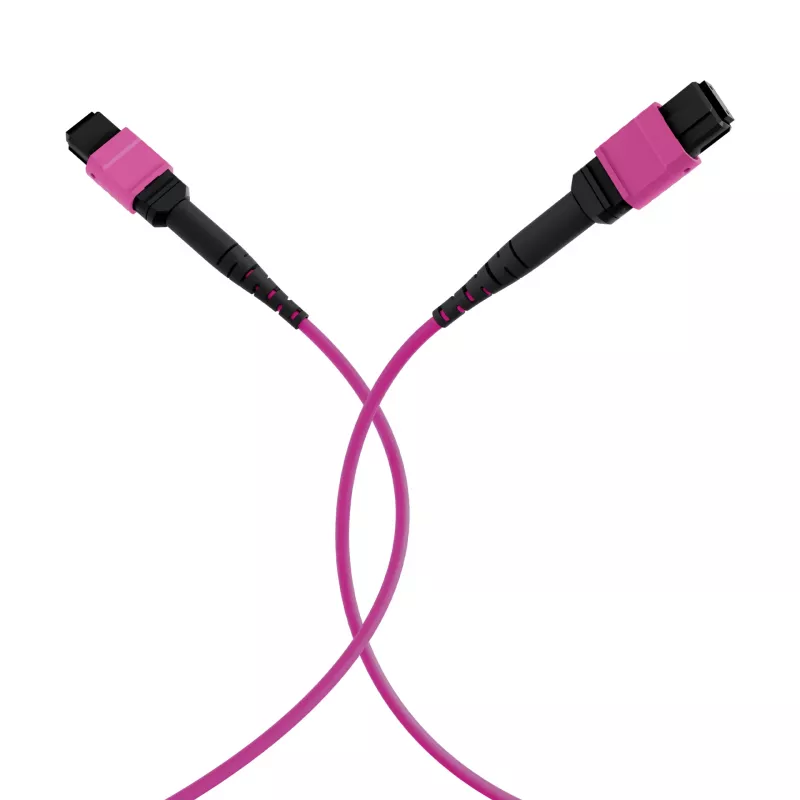

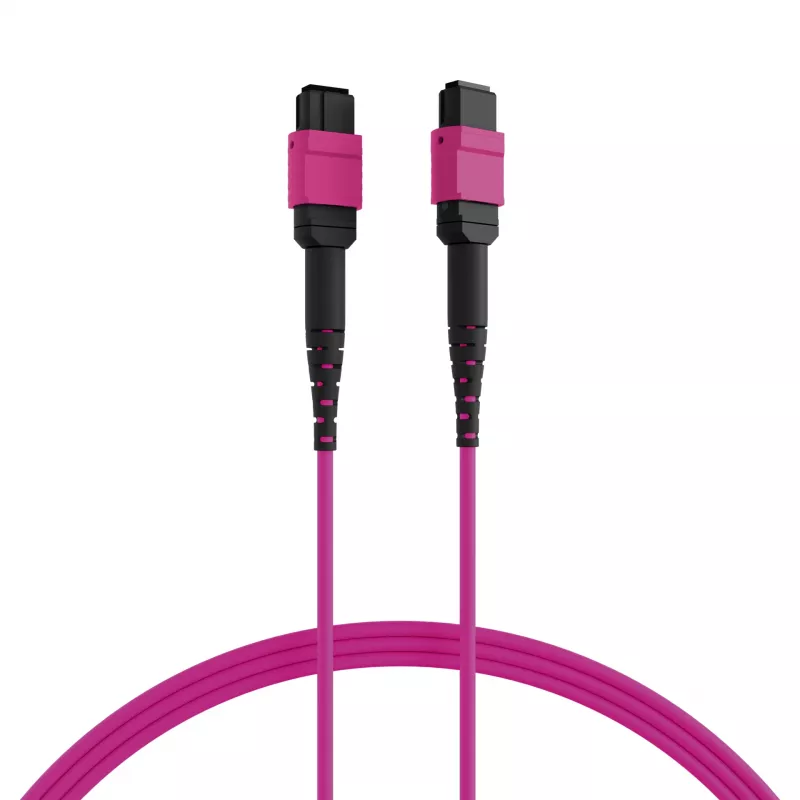

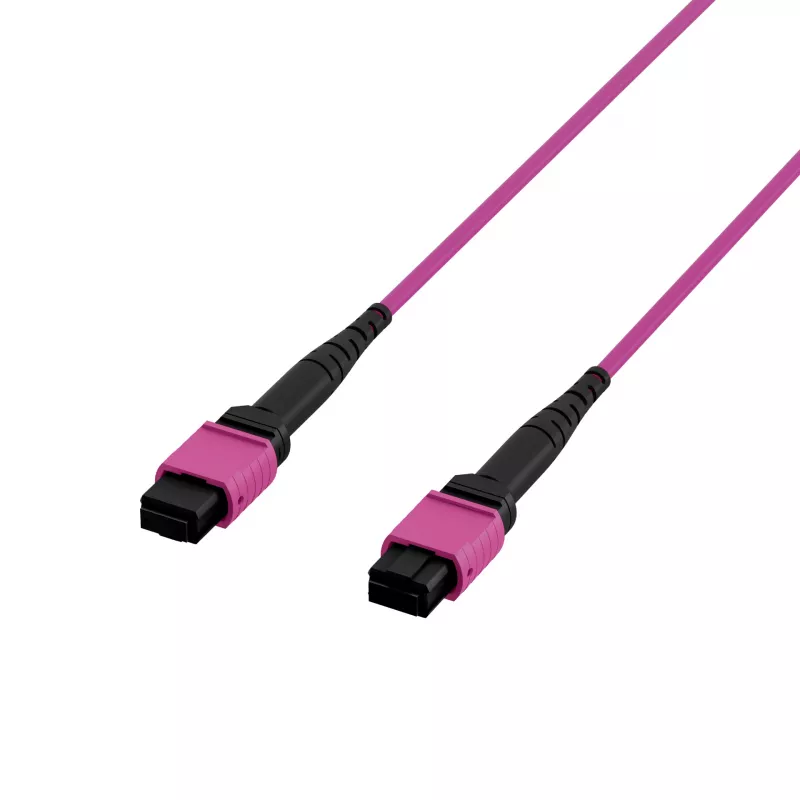

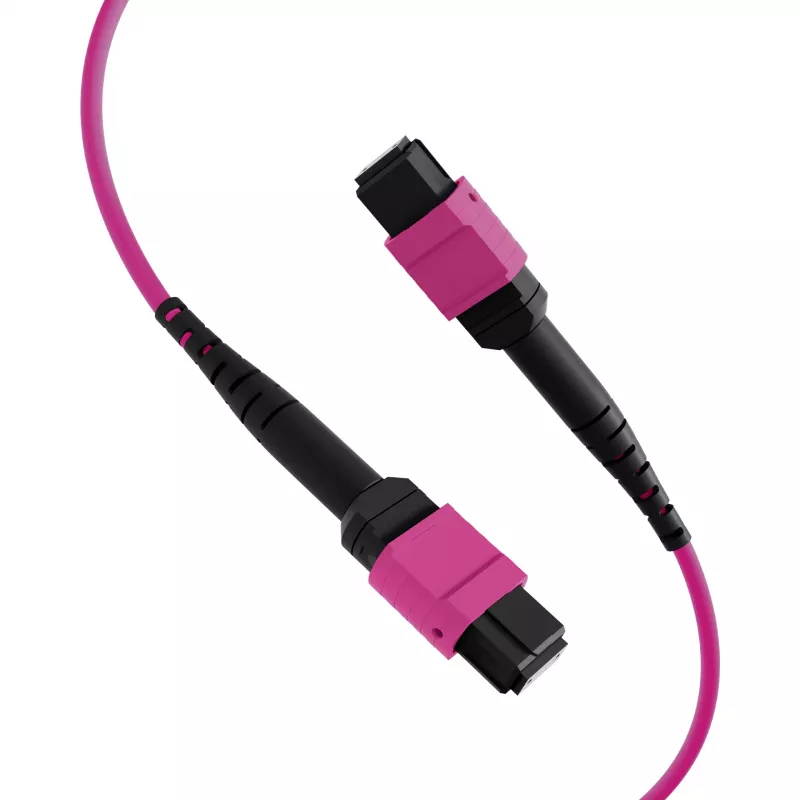

EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) patchkabel OM4 8 vezels type B LSZH erikaviolet 20m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. With OM4 multimode fiber, 8 fibers, and MPO-PLUS female connectors on both ends, this cable supports high-speed parallel optics applications up to 400 Gigabit Ethernet. The Type B polarity (cross-over) ensures correct signal transmission in MPO-based systems. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the distinctive erika violet color aids in easy identification.

Advantages

• High bandwidth OM4 fiber supports 40/100/400 Gigabit Ethernet and beyond
• MPO-PLUS female connectors with low insertion loss (<0.35 dB) and high return loss (>20 dB)
• LSZH jacket reduces toxic smoke and halogen emissions in case of fire
• Erika violet color for quick visual identification in dense cabling
• Type B polarity ensures proper fiber alignment in cross-over configurations

Suitable for

• Data center interconnects and top-of-rack switching
• Storage Area Networks (SAN)
• Local Area Networks (LAN) requiring high-speed parallel optics
• 40/100/400 Gigabit Ethernet deployments
• Any application requiring reliable multimode fiber connectivity

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM4
• Fiber Count: 8 Fibers
• Connector A Type: MPO-PLUS Female
• Connector B Type: MPO-PLUS Female
• Polarity: Type B (Cross-over)
• Cable Length: 20 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Insertion Loss (Max): <0.35 dB per connector
• Return Loss (Min): >20 dB
• Wavelengths Supported: 850nm, 1300nm
• Bandwidth (850nm): 4700 MHz*km
• Attenuation (850nm): 2.3 dB/km
• Attenuation (1300nm): 0.6 dB/km
• Operating Temperature: -20°C to +70°C
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5, RoHS, REACH

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO-PLUS female ports. Avoid sharp bends and maintain proper cable management to preserve signal integrity. This cable is ideal for high-density environments where space and safety are critical.
