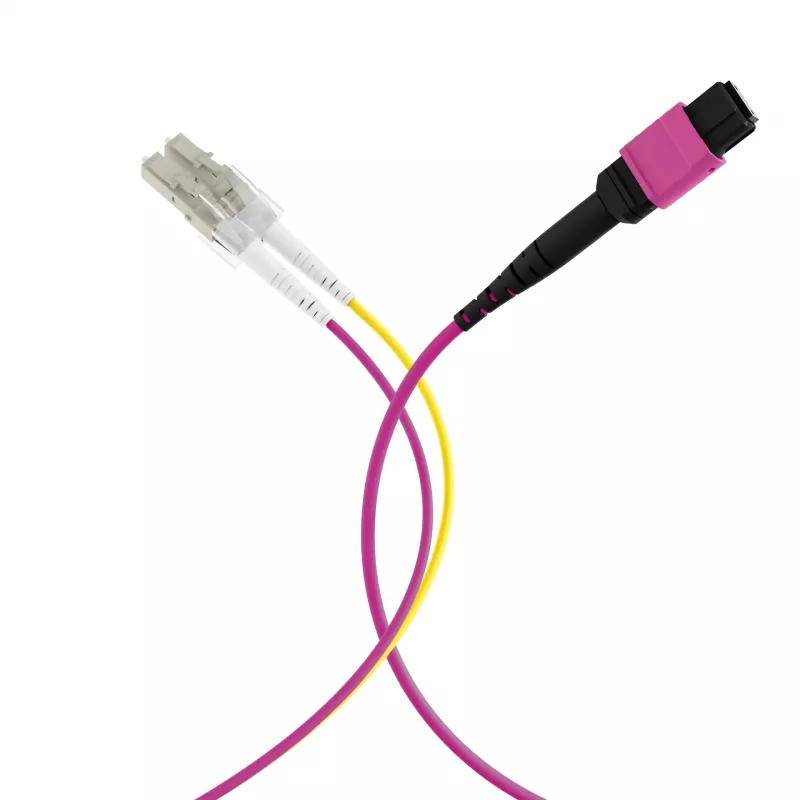

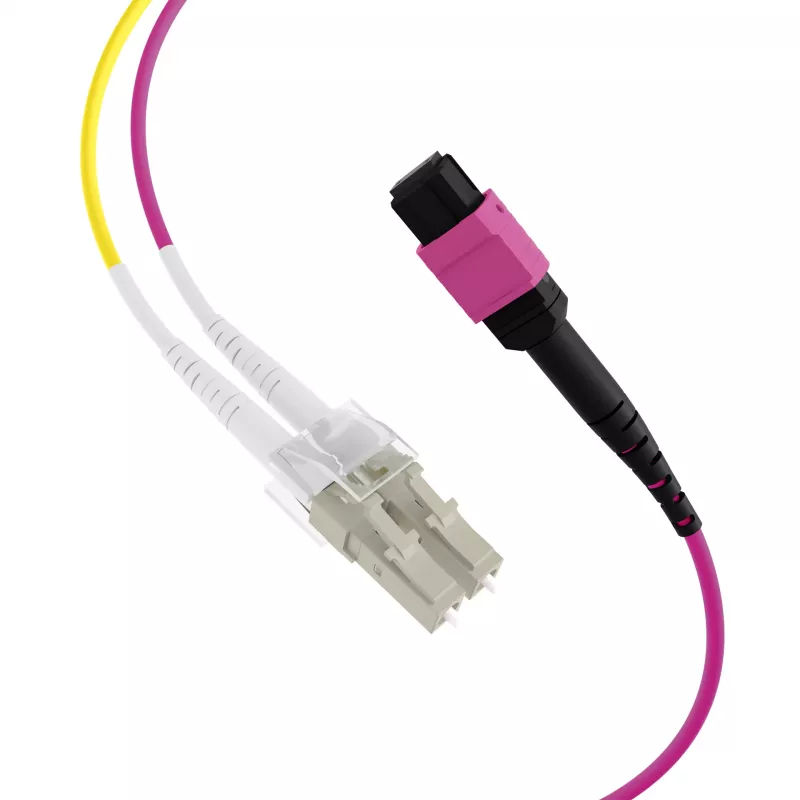

MPO-PLUS (F) naar LC Trunk-kabel OM4 8 vezels type B LSZH erika-violet 1m MPOF08LCOM4-1

This EFB Elektronik MPO-PLUS to LC trunk cable stands out for its high-density 8-fiber OM4 design with Type B polarity, ideal for structured cabling in data centers and SAN environments. The erika-violet LSZH jacket ensures safety and easy identification.

Highlights

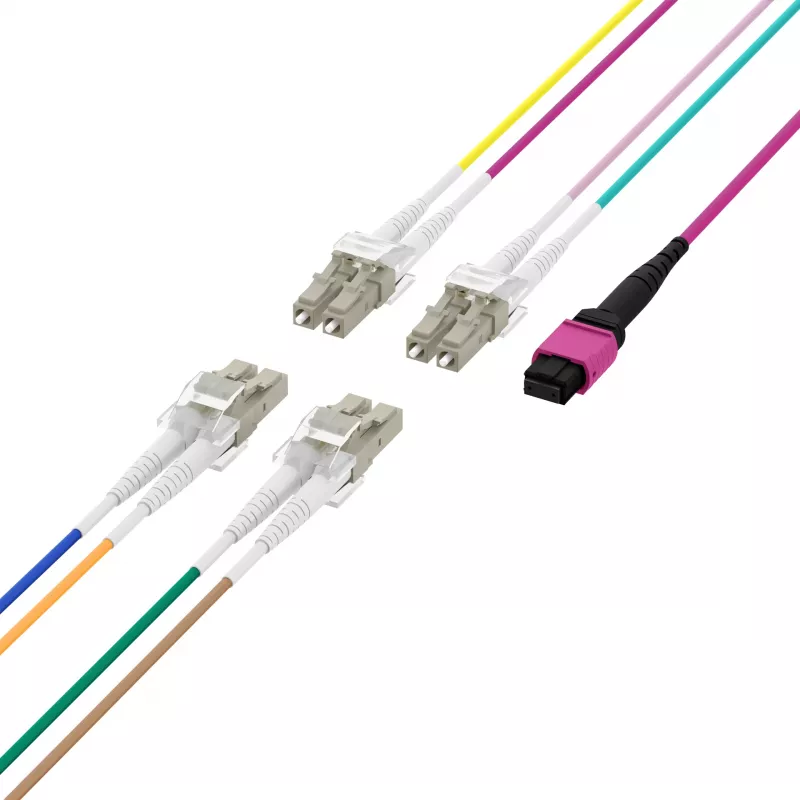

• MPO-PLUS female connector to 4x LC duplex connectors
• OM4 multimode fiber supports 40/100G Ethernet
• Type B polarity for simple system integration
• LSZH jacket in erika-violet for low smoke and halogen-free operation
• 1 meter length for flexible patching

In daily use

This trunk cable simplifies high-density fiber connections, reducing cable clutter and installation time. The MPO-PLUS connector ensures reliable mating, while the LC duplex breakouts allow direct connection to transceivers or patch panels.

Full specifications

• Fiber type: OM4 multimode
• Fiber count: 8 fibers
• Connector A: MPO-PLUS (female)
• Connector B: LC duplex (4x)
• Polarity: Type B
• Cable length: 1 meter
• Jacket material: LSZH
• Jacket color: Erika-violet
• Maximum insertion loss (MPO): 0.35 dB
• Maximum insertion loss (LC): 0.25 dB
• Attenuation @ 850nm: 3.0 dB/km
• Attenuation @ 1300nm: 1.0 dB/km

Final note

Engineered for performance and safety, this cable meets the demands of modern high-speed networks.
