EFB Elektronik MPO-PLUS (F) naar MPO-PLUS (F) OM4 Multimode glasvezel-patchkabel, 8 vezels, type B, LSZH, Erika Violett, 2m MPOF8MPOFOM4-2

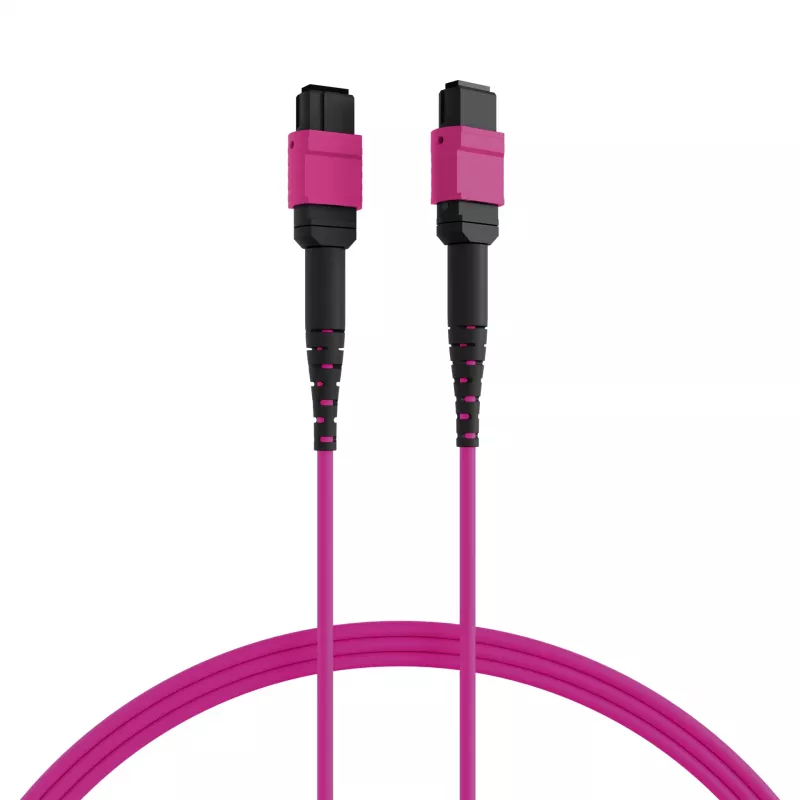

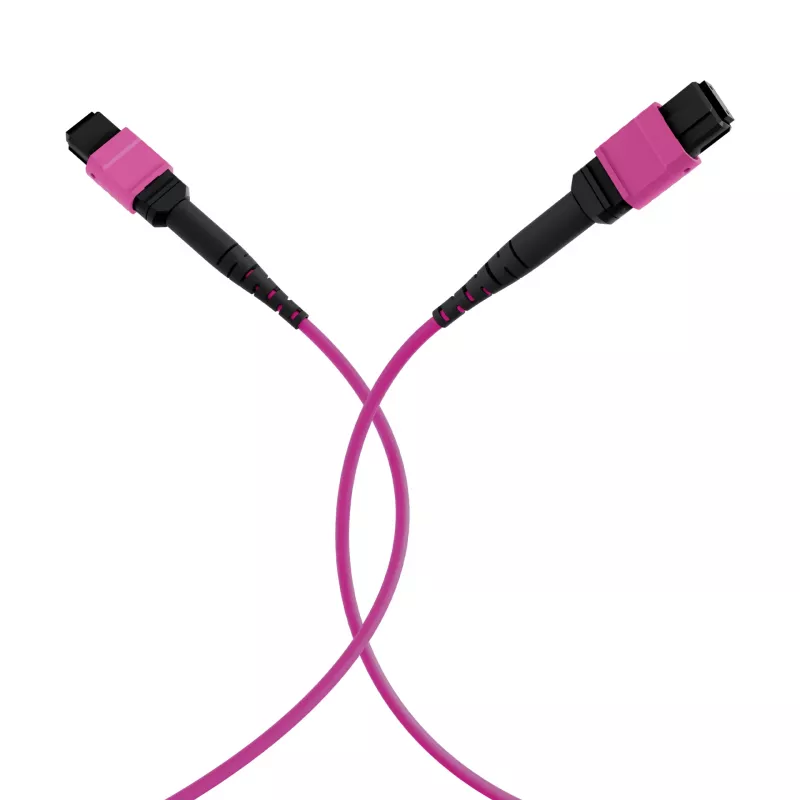

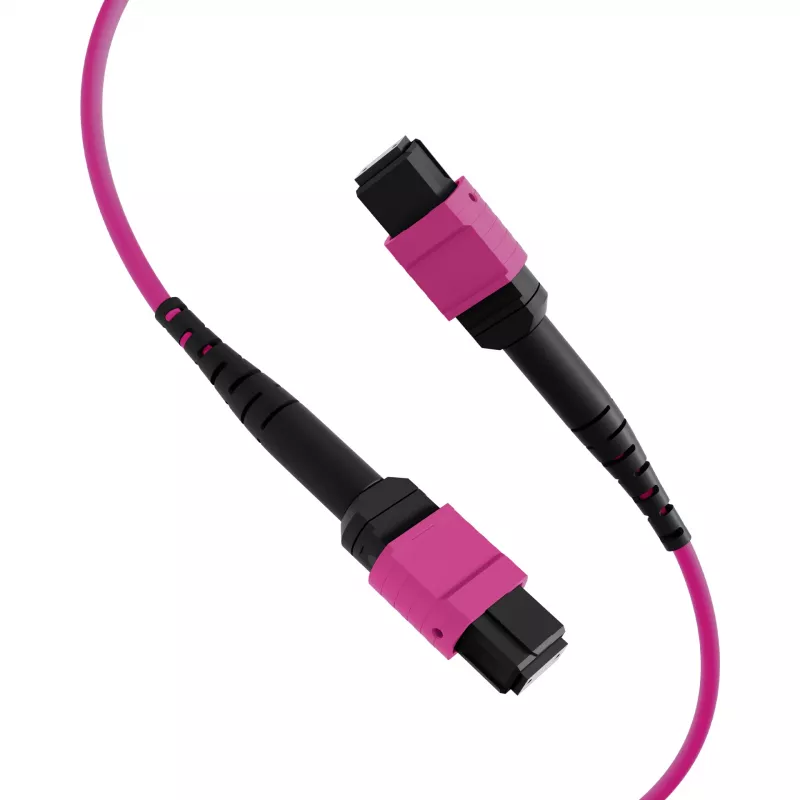

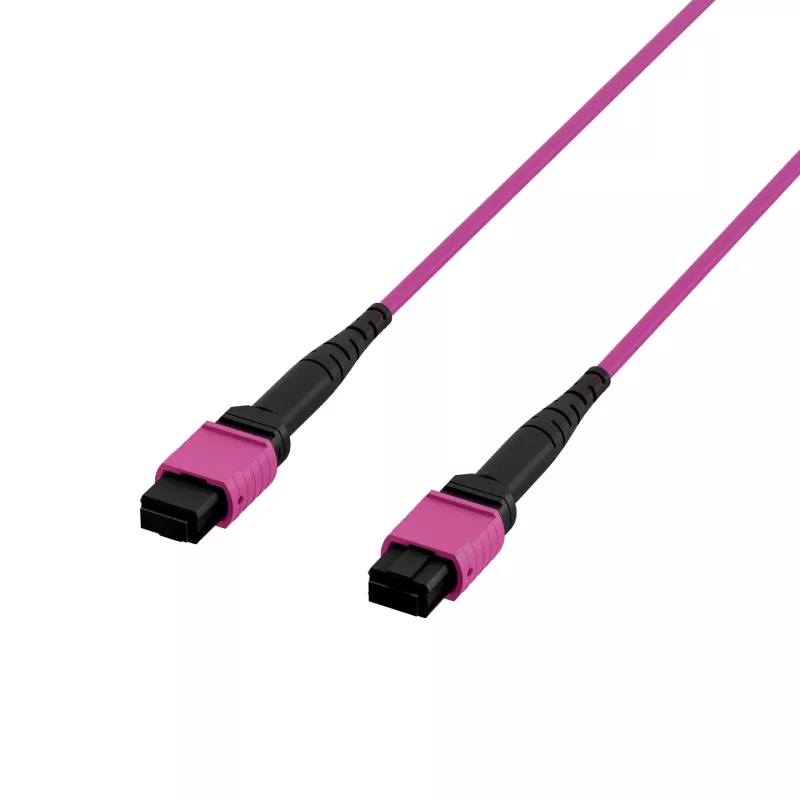

Fiber optic patch cable with MPO-PLUS female connectors on both ends, delivering reliable OM4 multimode performance for high-speed data center and enterprise networks. This 2-meter cable features 8 fibers in a Type B polarity configuration, ensuring correct signal routing for parallel optics applications.

Advantages

The LSZH (Low Smoke Zero Halogen) jacket in Erika Violet enhances safety in dense environments by emitting low smoke and no toxic halogens in case of fire. OM4 multimode fiber supports high bandwidth, making it suitable for 40G and 100G Ethernet links over short distances. The MPO-PLUS connectors offer low insertion loss and high return loss for stable connections.

Suitable for

• Data center interconnects and cross-connects
• Storage area networks (SAN) and local area networks (LAN)
• 40G and 100G Ethernet parallel optics
• High-density fiber patching in racks and enclosures

Key specifications

• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Fiber Type: OM4 Multimode, 50/125 µm
• Fiber Count: 8 fibers
• Polarity: Type B
• Cable Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 20 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: TIA/EIA-568-C.3, IEC 61754-7, ISO/IEC 11801, EN 50173-1

Recommendations

Ideal for structured cabling in data centers where high density and performance are critical. Pair with MPO cassettes or transceivers supporting Type B polarity for seamless integration.
