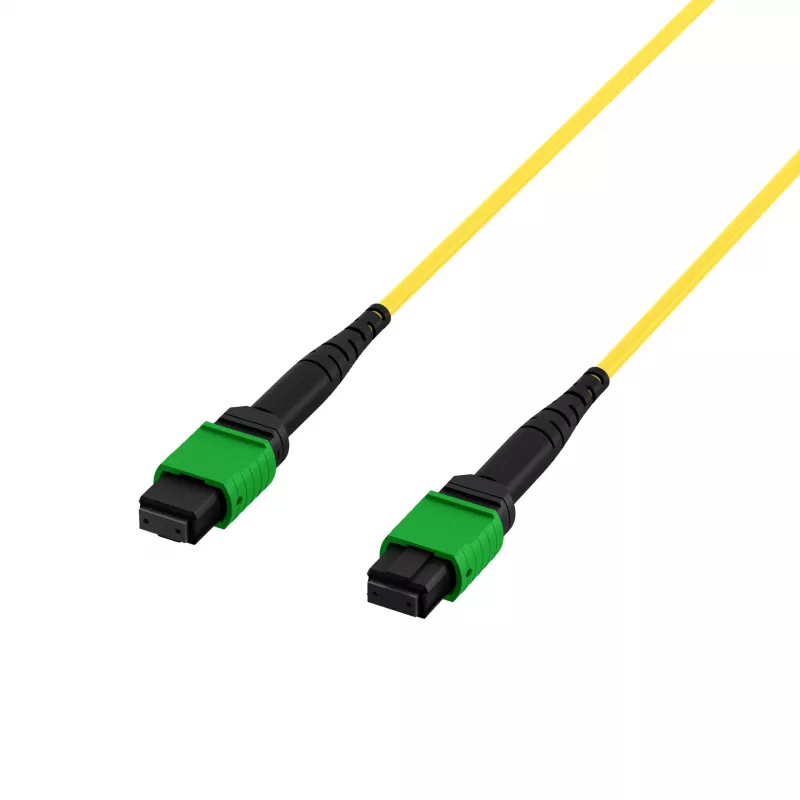

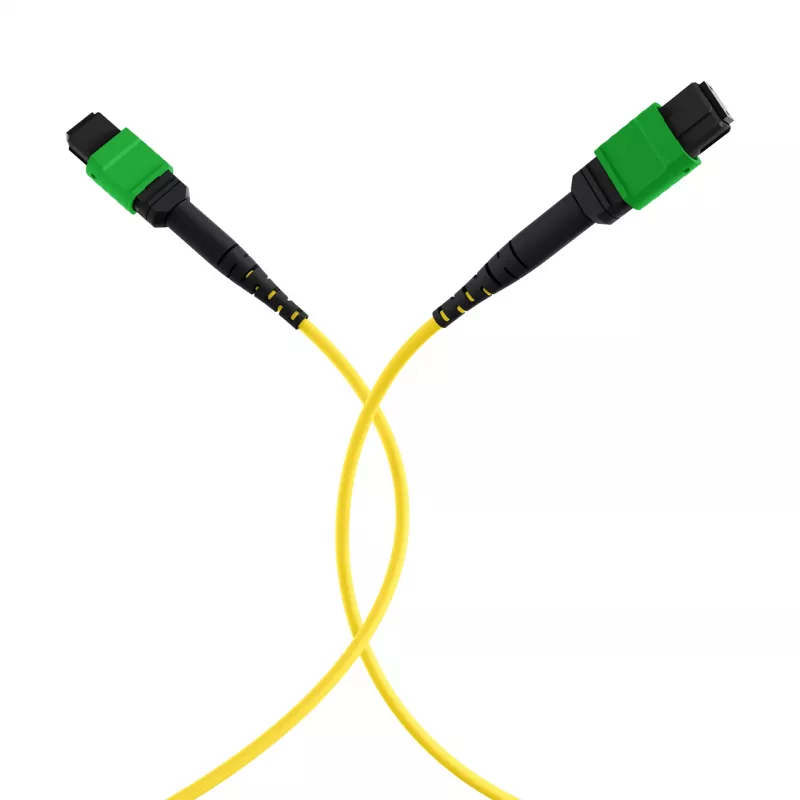

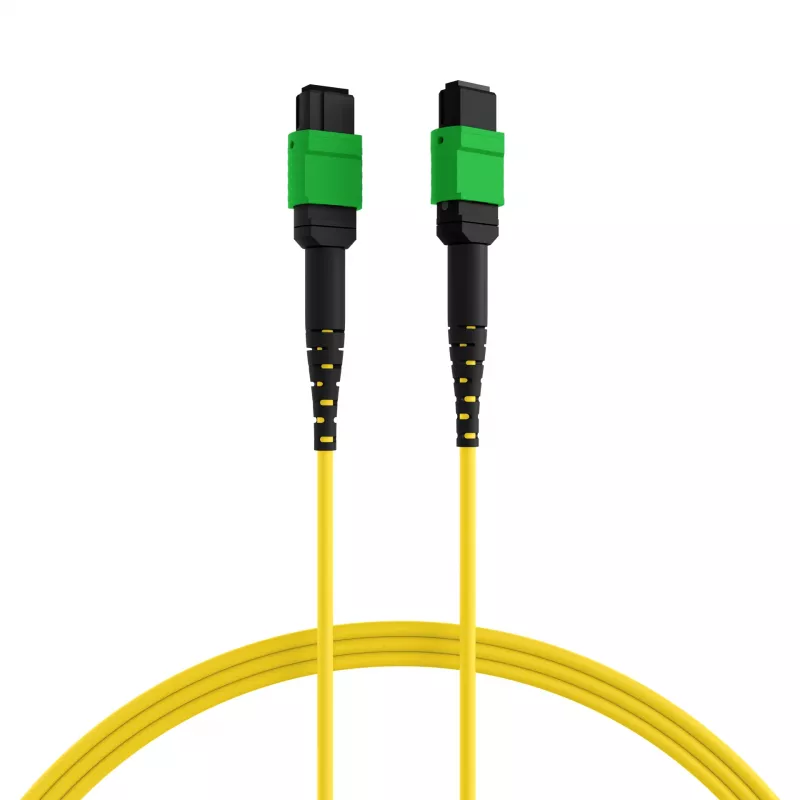

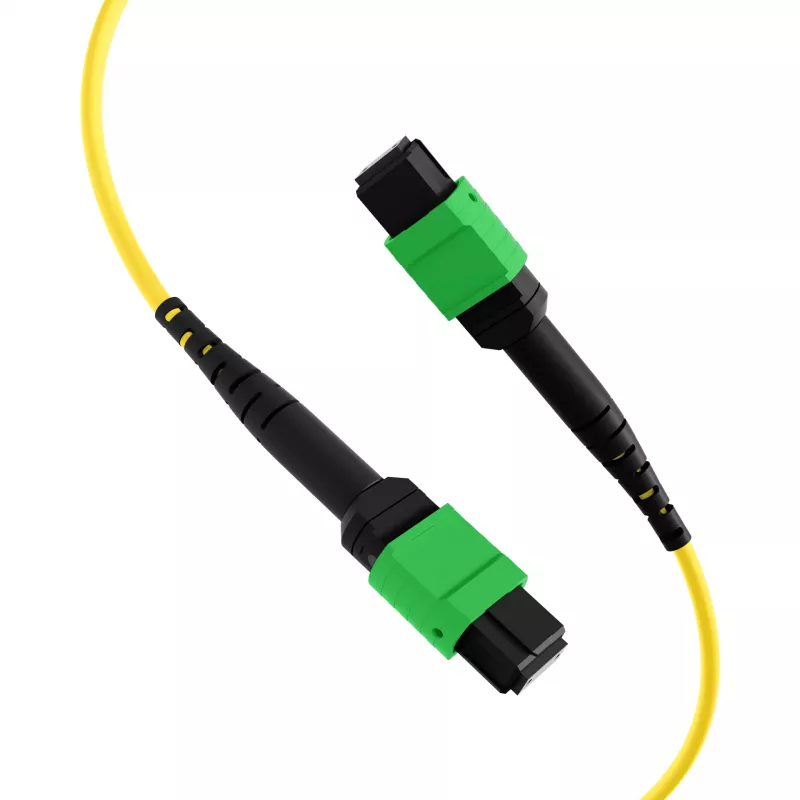

EFB Elektronik MPOF12MPOFOS2-3 MPO-PLUS/APC(F) naar MPO-PLUS/APC(F) OS2 singlemode 12-vezels type B LSZH patchkabel, 3m, geel

This 3-meter OS2 singlemode patch cable delivers 12-fiber MPO-PLUS/APC female-to-female connectivity with Type B polarity, ensuring reliable high-density links in data centers and telecom networks. The LSZH yellow jacket provides safety and visibility, while the low insertion loss of ≤0.35 dB and high return loss of ≥60 dB maintain signal integrity for demanding applications.

Overview

The EFB Elektronik MPOF12MPOFOS2-3 is a premium fiber optic patch cable engineered for high-performance singlemode transmission. It features MPO-PLUS connectors with APC polish on both ends, optimized for minimal back reflection and superior mating durability. With 12 fibers in a single connector, it supports parallel optics and high-speed data rates, making it ideal for 40G/100G Ethernet and beyond.

What stands out

• MPO-PLUS/APC female connectors on both ends for low-loss, high-return connections
• Type B polarity for straightforward cross-connects in structured cabling
• LSZH jacket in yellow for safety in plenum and riser environments
• Singlemode OS2 fiber supports long-distance transmission up to 10 km and beyond
• 12 fibers enable high-density patching in data centers and SANs

Technical details

• Cable type: Fiber optic patch cable
• Fiber mode: Singlemode OS2
• Fiber count: 12
• Connector A: MPO-PLUS/APC female
• Connector B: MPO-PLUS/APC female
• Polarity: Type B
• Length: 3 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Yellow
• Insertion loss (typical): ≤ 0.35 dB
• Return loss (typical): ≥ 60 dB
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Our verdict

A robust and high-performance MPO patch cable for modern fiber infrastructures, offering excellent optical performance and safety compliance.
