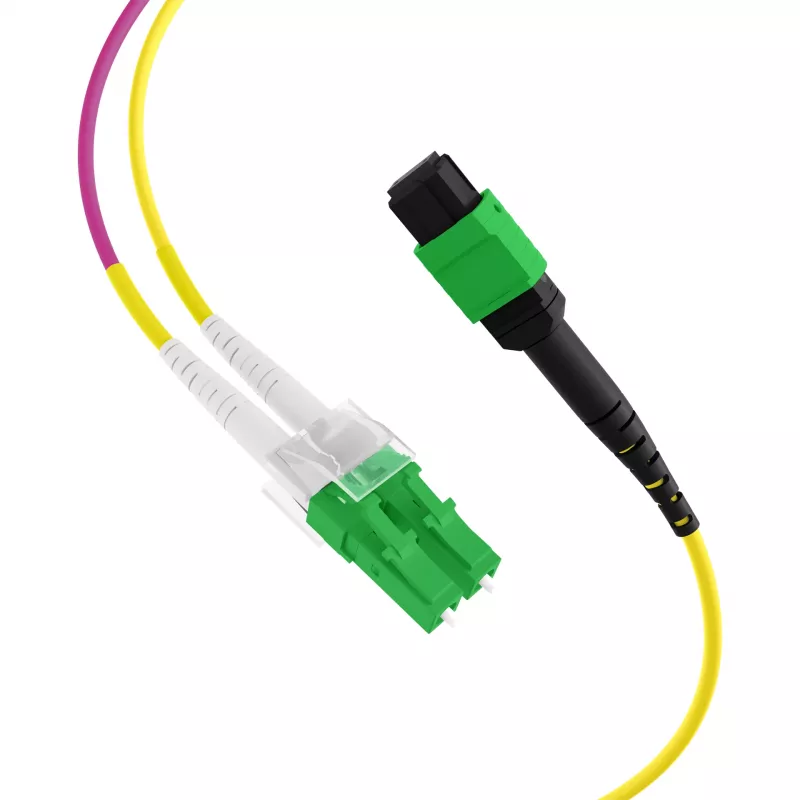

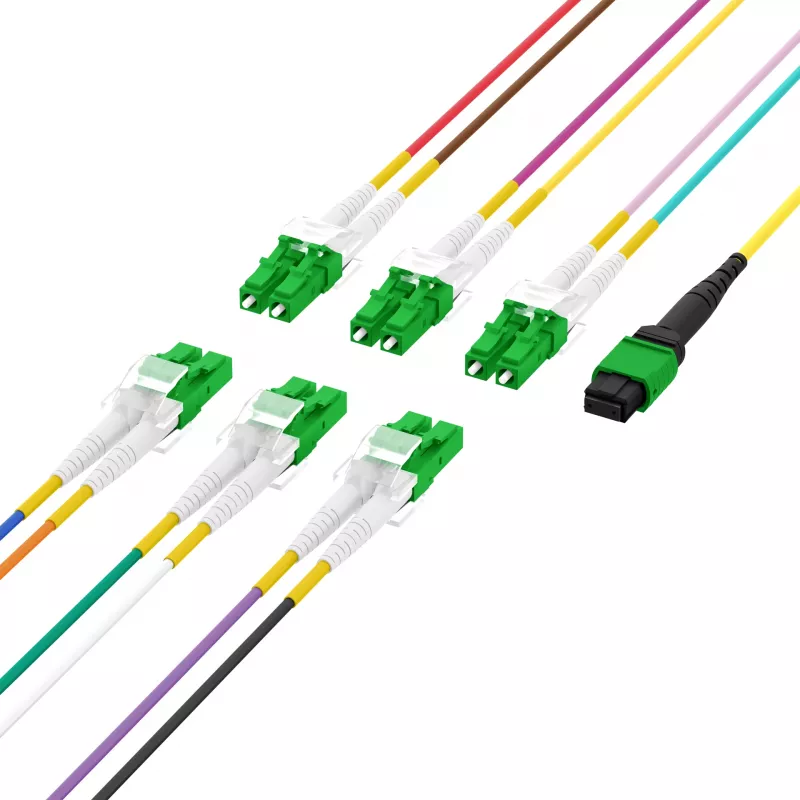

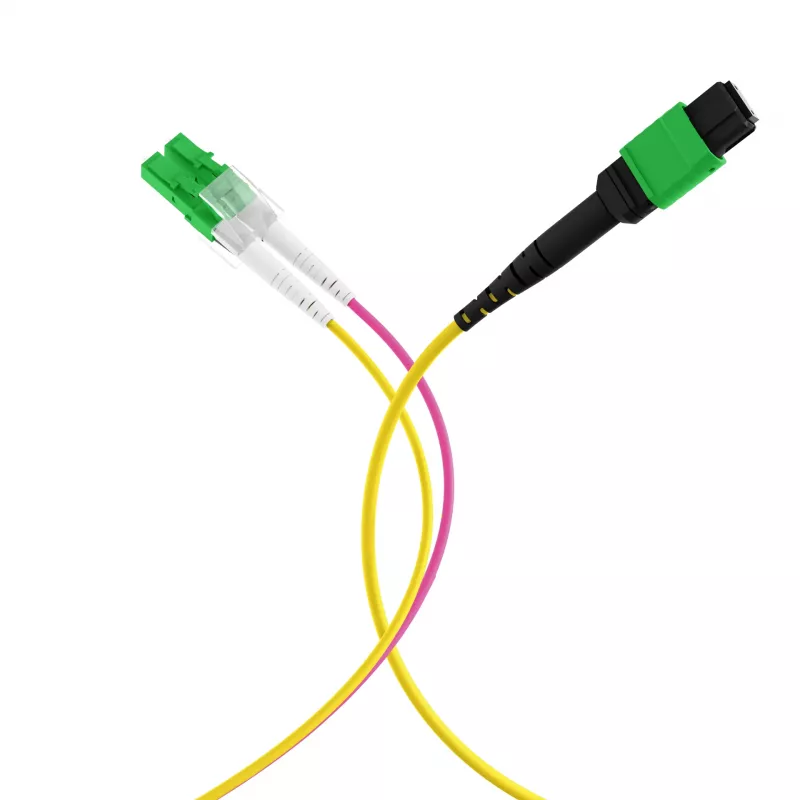

EFB Elektronik MTPF12LCAPC-3 3 m OS2 MTP 12x LC glasvezel breakout-kabel

The EFB Elektronik MTPF12LCAPC-3 is a high-performance fiber optic breakout cable designed for reliable single-mode data transmission. With a length of 3 meters, this cable features an MTP/MPO connector on one end and 12 LC simplex connectors on the other, all with APC polish for low insertion loss and high return loss. Ideal for data centers and telecommunications, it ensures efficient connectivity and signal integrity.

Advantages

This breakout cable offers exceptional signal quality with insertion loss ≤0.35 dB (MTP) and ≤0.25 dB (LC), and return loss ≥60 dB. The LSZH jacket provides safety in enclosed spaces, while the yellow color ensures easy identification. Polarity Type B maintains correct fiber alignment.

Suitable for

• Data center infrastructure
• Telecommunication networks
• High-speed data transmission (OS2 single-mode)
• Applications requiring APC polish connectors

Key specifications

• Cable type: Fiber Optic Breakout Cable
• Fiber mode: Single-mode (OS2, G.657.A1)
• Number of fibers: 12
• Connector A: MTP/MPO (12-fiber) APC
• Connector B: 12x LC Simplex APC
• Cable length: 3 m
• Jacket material: LSZH
• Cable color: Yellow
• Insertion loss (MTP): ≤0.35 dB
• Insertion loss (LC): ≤0.25 dB
• Return loss (MTP APC): ≥60 dB
• Return loss (LC APC): ≥60 dB
• Polarity: Type B
• Trunk cable diameter: 3.0 mm
• Breakout length: 0.5 m
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard MTP/MPO and LC interfaces. Suitable for indoor use only.
