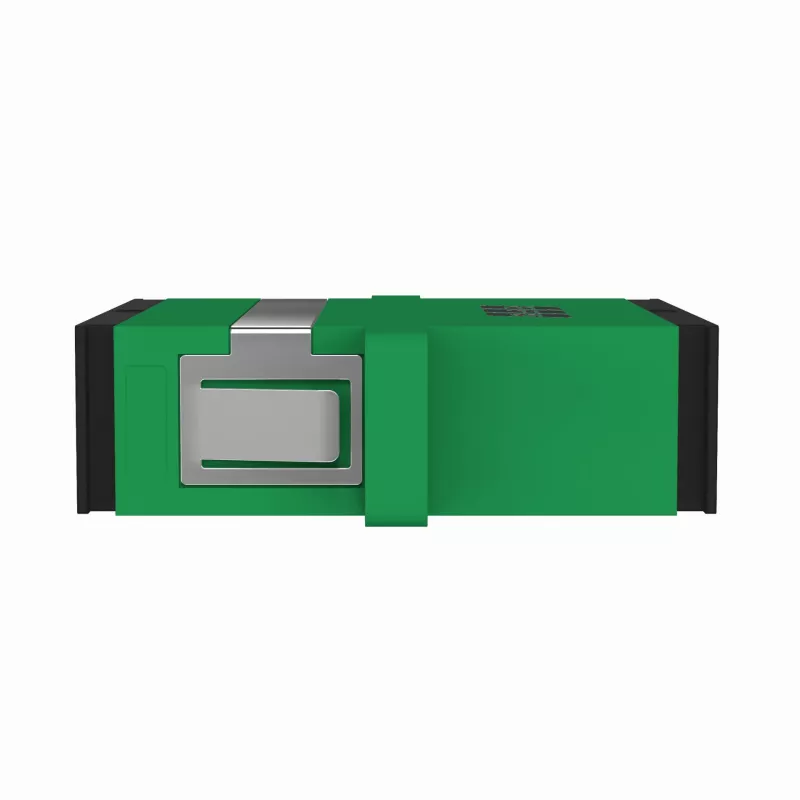

EFB Elektronik SC/APC simplex koppeling, singlemode, groen

The EFB Elektronik SC/APC Simplex Coupler is a high-quality network adapter designed for single-mode fiber optic connections. It provides a reliable female-to-female connection with low insertion loss and high return loss, making it ideal for FTTH, LAN, telecommunication networks, and data centers.

Advantages

This coupler offers exceptional performance with ≤0.3 dB insertion loss and ≥60 dB return loss, ensuring minimal signal degradation. The zirconia ceramic ferrule and sleeve provide durability for over 1000 mating cycles, while the PBT plastic housing meets UL94 V-0 flammability standards.

Suitable for

• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Telecommunication networks
• Data centers

Key specifications

• Connector type: SC/APC
• Fiber mode: Single-mode (OS2)
• Configuration: Simplex
• Adapter type: Female to female
• Insertion loss: ≤0.3 dB
• Return loss: ≥60 dB
• Ferrule material: Zirconia ceramic
• Sleeve material: Zirconia ceramic
• Housing material: Plastic (PBT)
• Color: Green
• Mounting type: Flange / Panel mount
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Durability: >1000 mating cycles
• Wavelength: 1310 nm / 1550 nm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with single-mode patch cables and ensure clean connections. This coupler is RoHS and REACH compliant, suitable for professional network installations.
