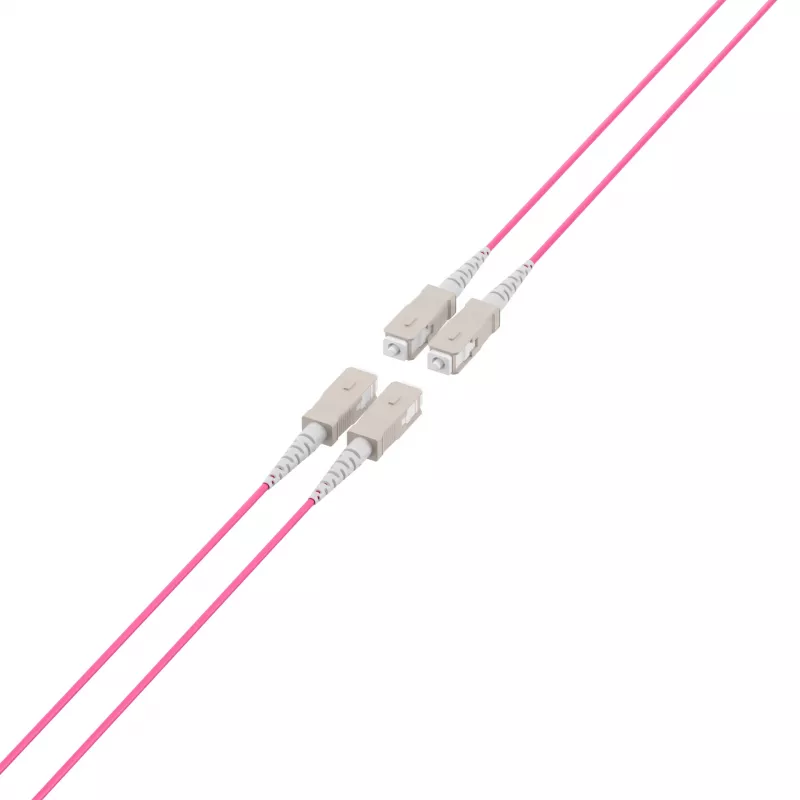

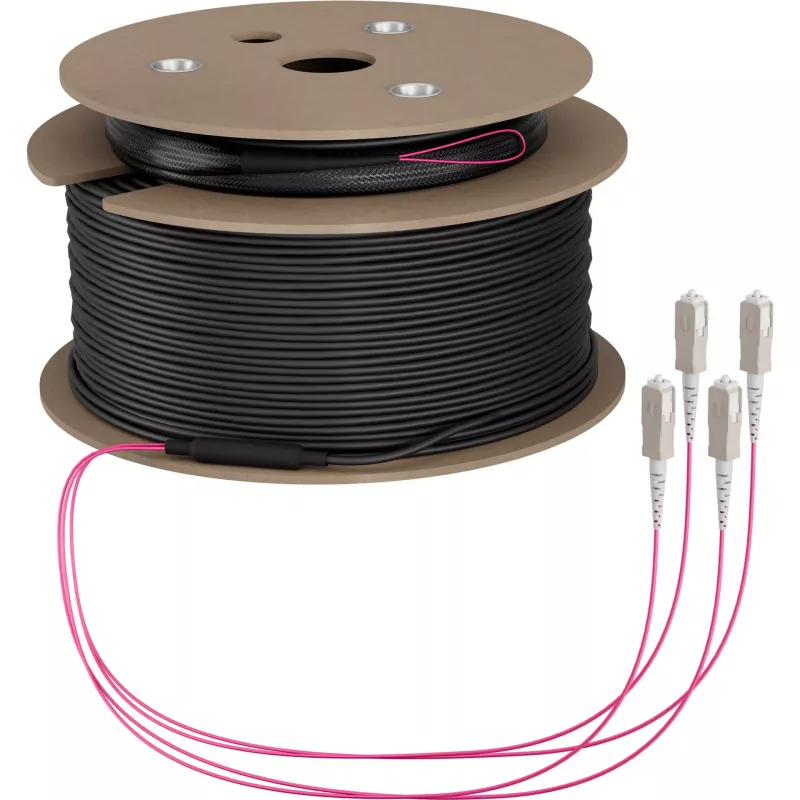

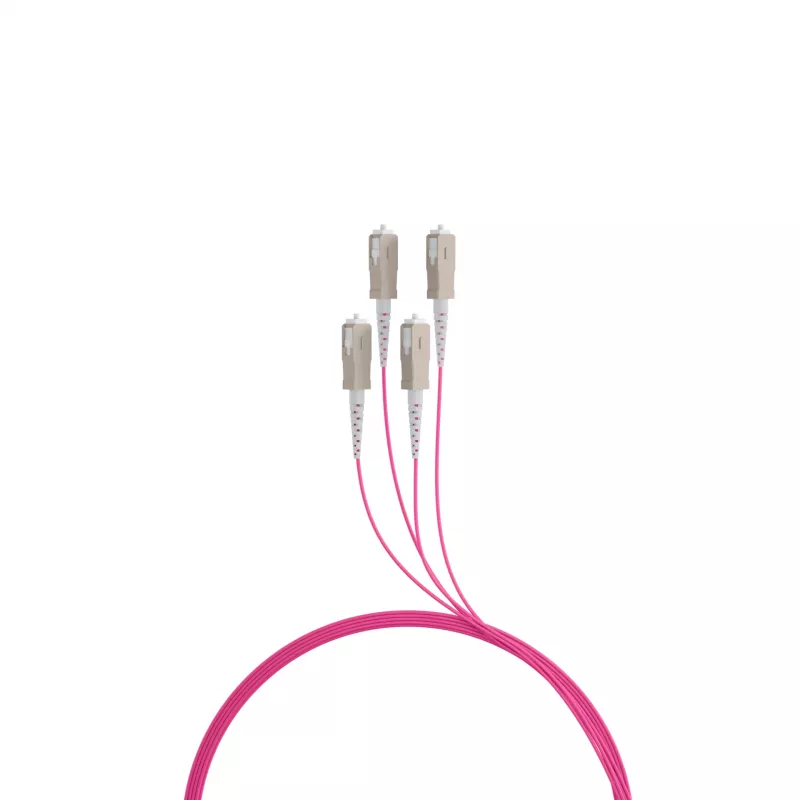

EFB Elektronik trunkkabel U-DQ ZN BH OM4 4G 1x4 SC-SC 90m Dca LSZH - 90 m O8301S90OM4

This EFB trunk cable stands out with its pre-terminated SC connectors on both ends, eliminating field termination and reducing installation time in data center and backbone cabling. The OM4 multimode fiber supports high-speed transmission over 90 meters, while the LSZH jacket and Dca fire rating make it suitable for environments where smoke and flame spread are critical concerns.

Highlights

• 4-fiber OM4 multimode trunk cable, 50/125 µm core/cladding

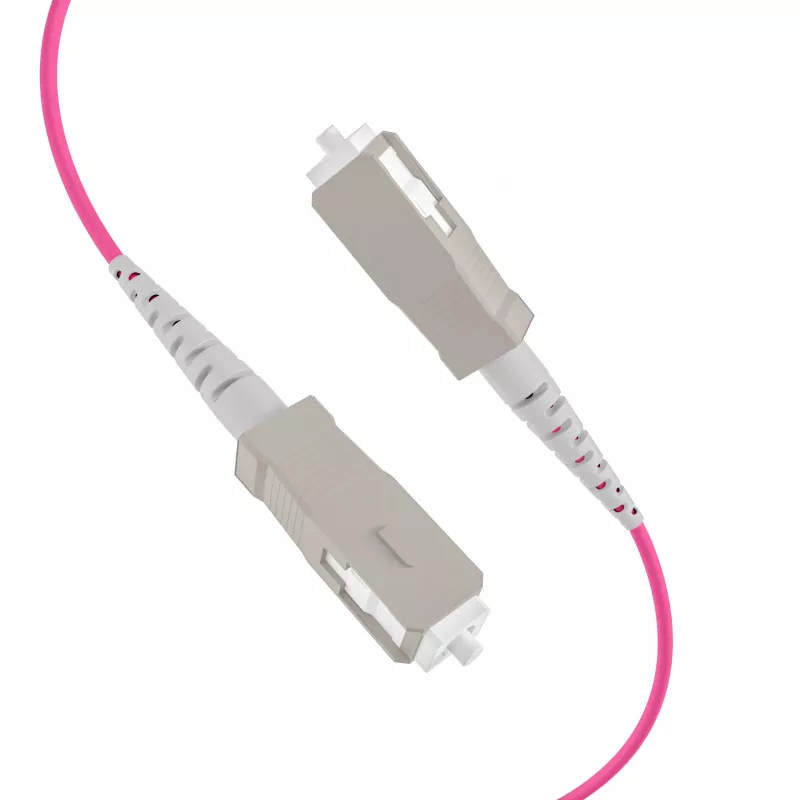

• SC connectors on both ends, factory terminated and tested
• 90 m length, ideal for structured cabling between racks or zones
• LSZH (Low Smoke Zero Halogen) outer sheath in aqua
• Euroclass Dca fire performance rating for enhanced safety
• Central loose tube construction with non-metallic strength members

In daily use

The cable supports 10G, 40G, and 100G Ethernet over multimode fiber, with an effective modal bandwidth of 4700 MHz·km at 850 nm. It operates reliably in temperatures from -20°C to 70°C, making it suitable for both indoor and protected outdoor pathways. The non-metallic design avoids grounding issues and reduces weight compared to armored cables.

Full specifications

• Fiber type: Multimode OM4
• Number of fibers: 4
• Connector type (both ends): SC
• Cable length: 90 m
• Jacket material: LSZH
• Fire performance rating: Dca (Euroclass)
• Core/cladding diameter: 50/125 µm
• Wavelengths: 850 nm, 1300 nm
• Bandwidth (850 nm): 4700 MHz·km
• Bandwidth (1300 nm): 500 MHz·km
• Outer sheath color: Aqua
• Construction: Central loose tube, non-metallic strength members
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 70°C

Final note

Pre-terminated and tested, this trunk cable reduces deployment risk and speeds up network rollout in high-density environments.
