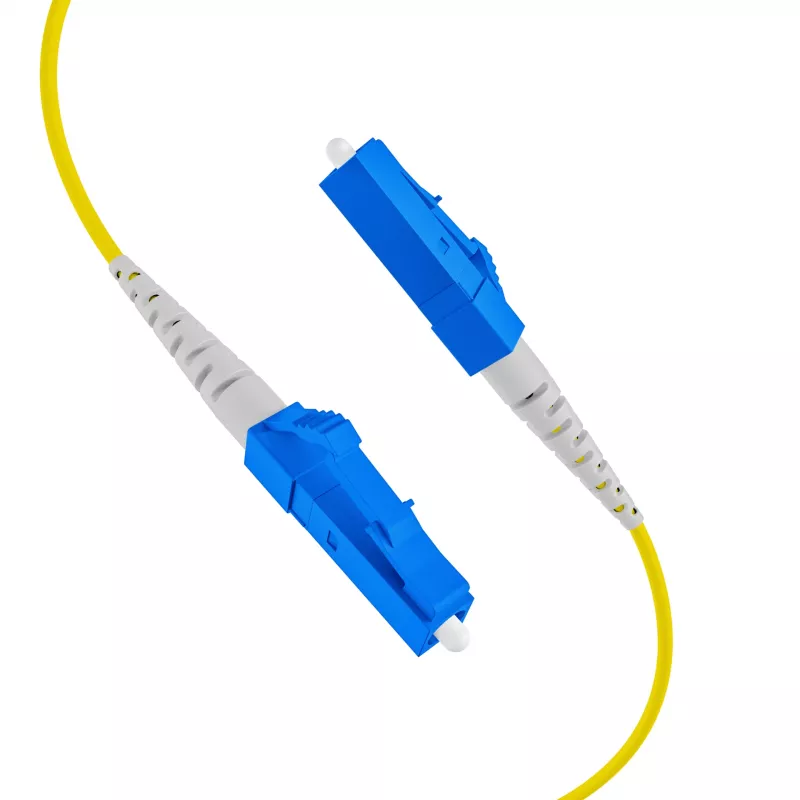

EFB Elektronik trunkkabel U-DQ ZN BH OS2 4E 1x4 LC-LC 150m Dca LSZH G675A1 - 150 m O8303S150OS2

This pre-assembled trunk cable stands out with its bend-insensitive G.657.A1 single-mode fibers, allowing tighter routing without compromising signal integrity. The universal U-DQ ZN BH construction suits both indoor and outdoor installations, while the LSZH sheath and Dca fire rating ensure safety in public buildings.

Highlights

• OS2 single-mode fiber, ITU-T G.657.A1 bend-insensitive

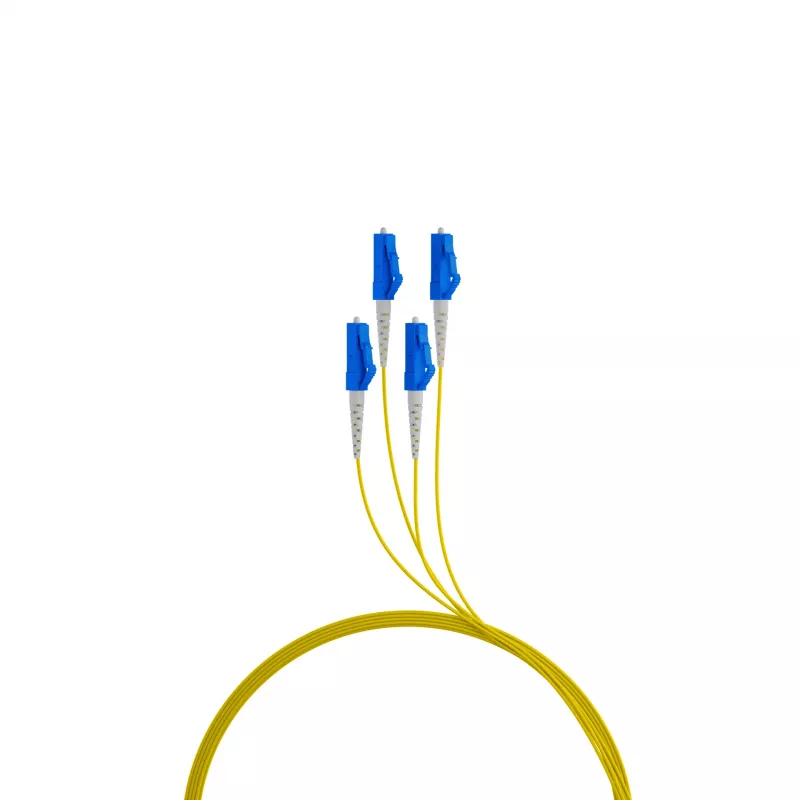

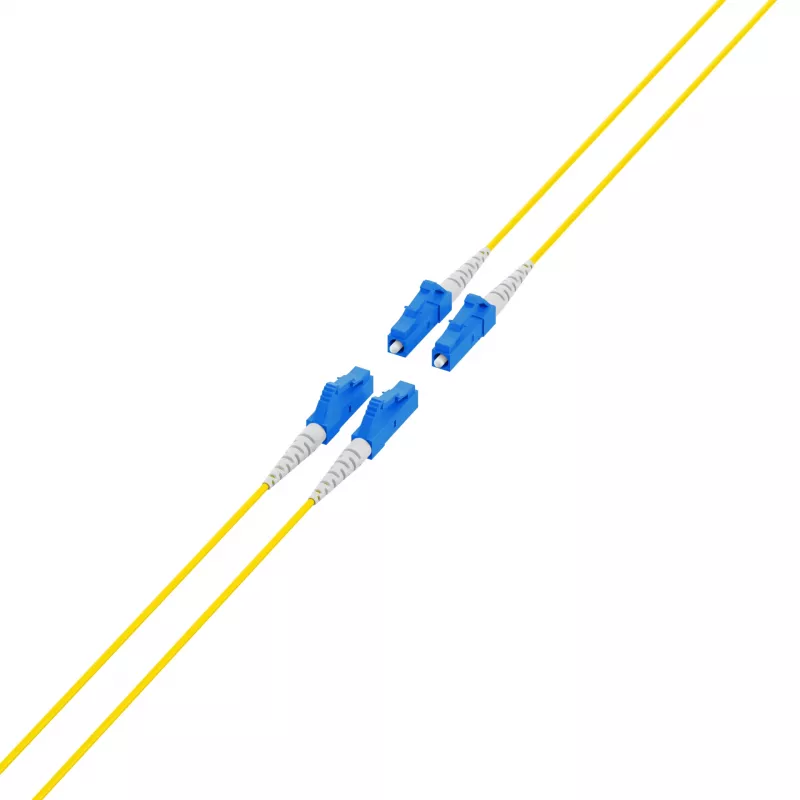

• 4 fibers with LC connectors on both ends

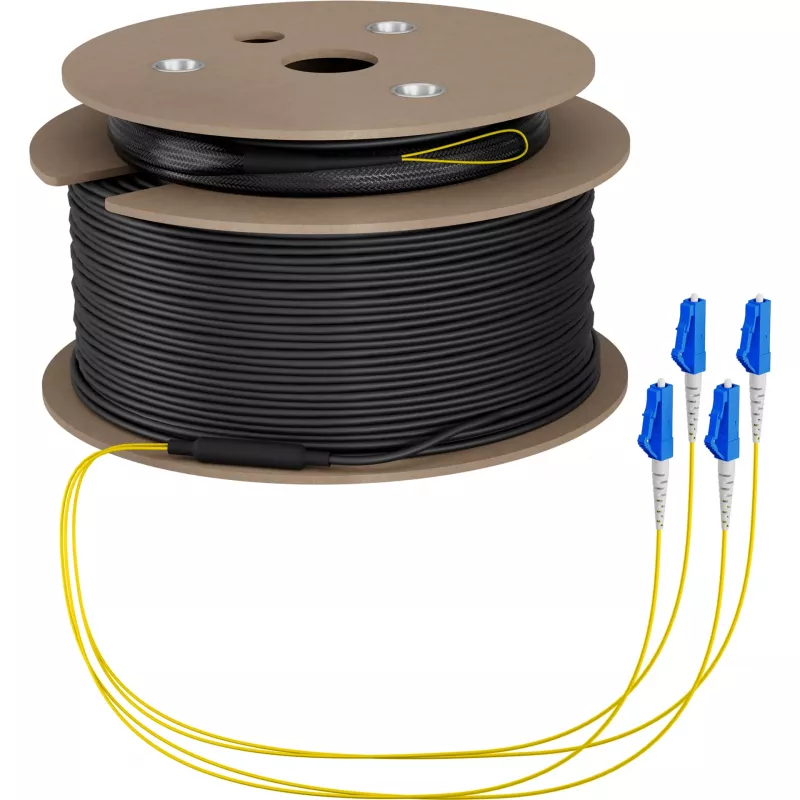

• 150 m length, ready for immediate deployment
• LSZH sheath, CPR class Dca
• Universal design for indoor/outdoor use

In daily use

This trunk cable simplifies backbone cabling in data centers, campus networks, and building risers. The pre-terminated LC connectors eliminate field splicing, reducing installation time and errors. The bend-insensitive fiber tolerates tight corners and patch panel routing, maintaining low attenuation even under stress.

Full specifications

• Fiber type: OS2 single-mode
• Fiber standard: ITU-T G.657.A1
• Number of fibers: 4
• Connector type: LC on both ends
• Cable length: 150 m
• Sheath material: LSZH
• Fire performance class (CPR): Dca
• Cable construction: U-DQ ZN BH
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Attenuation at 1310 nm: < 0.35 dB/km
• Attenuation at 1550 nm: < 0.22 dB/km

Final note

For reliable, high-density fiber trunking with proven bend performance, this cable delivers consistent results in demanding environments.
