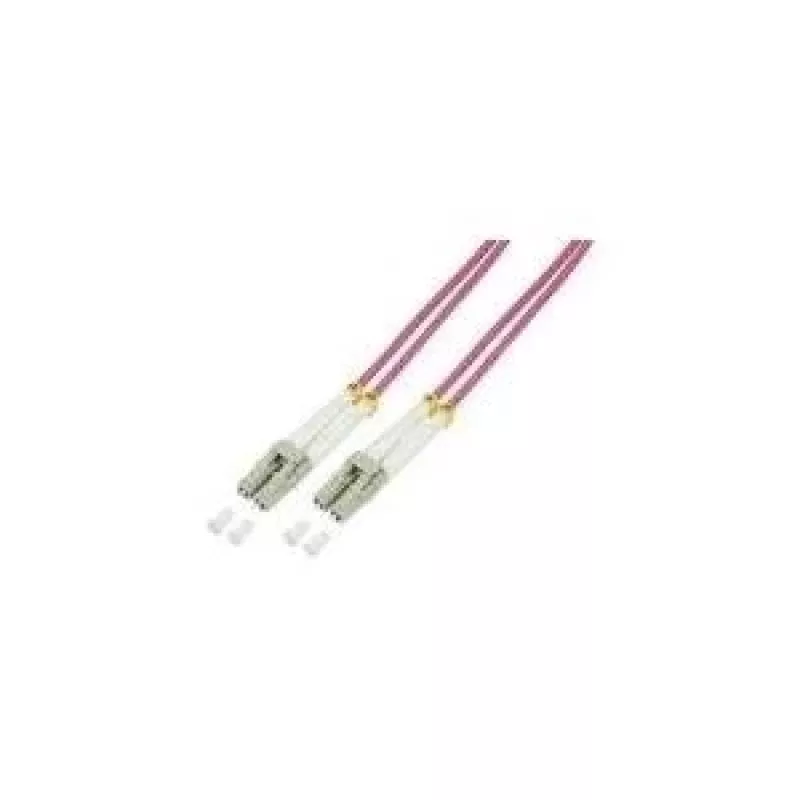

Glasvezelkabel LogiLink 5 m LC - LC FP4LC05

LogiLink 5m LC–LC multimode duplex fibre optic jumper with 50/125 µm OM4 cores and LSZH jacket in violet, designed for reliable high-speed data transmission over short distances. The cable supports full duplex communication with LC connectors on both ends and is suitable for structured cabling complying with DIN EN 50173-1 and IEC/ISO 11801. Each unit is supplied with a measurement protocol documenting quality and performance.

Advantages

The LogiLink FP4LC05 offers multimode OM4 performance for transmission rates up to 40 Gbit/s over short runs, a 50/125 µm core for standard data centre connectivity, and a low-smoke, zero-halogen (LSZH) jacket for improved safety in confined spaces. LC–LC connectors ensure compact, industry-standard termination and the included test protocol verifies individual cable quality.

Suitable for

• Data centre interconnects and server-to-switch links
• High-speed network backbones and patch panels
• Short-range 10G/40G multimode applications up to 125 m

Key specifications

• Length: 5 m
• Fibre type: Multimode OM4 (I-VH 2G 50/125 µm)
• Connectors: LC to LC (duplex)
• Jacket: LSZH, violet, Ø 3.0 mm
• Application: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: delivered with individual measurement protocol

How to use

Inspect connector endfaces and cable for damage before installation. Insert LC connectors into corresponding LC ports on devices or patch panels, ensuring correct duplex orientation. Route the cable with gentle bends, keeping bend radius within manufacturer guidelines and avoiding sharp kinks. After installation, verify link performance using compatible fibre test equipment and compare results with the supplied measurement protocol.

Recommendations

Store and handle the cable in a clean environment; keep connector end-caps on until final connection to prevent contamination. For safety in enclosed spaces, prefer LSZH jacketed cables like this LogiLink jumper. For runs near the 125 m limit or in mixed-fibre environments, verify system compatibility and perform end-to-end testing.
