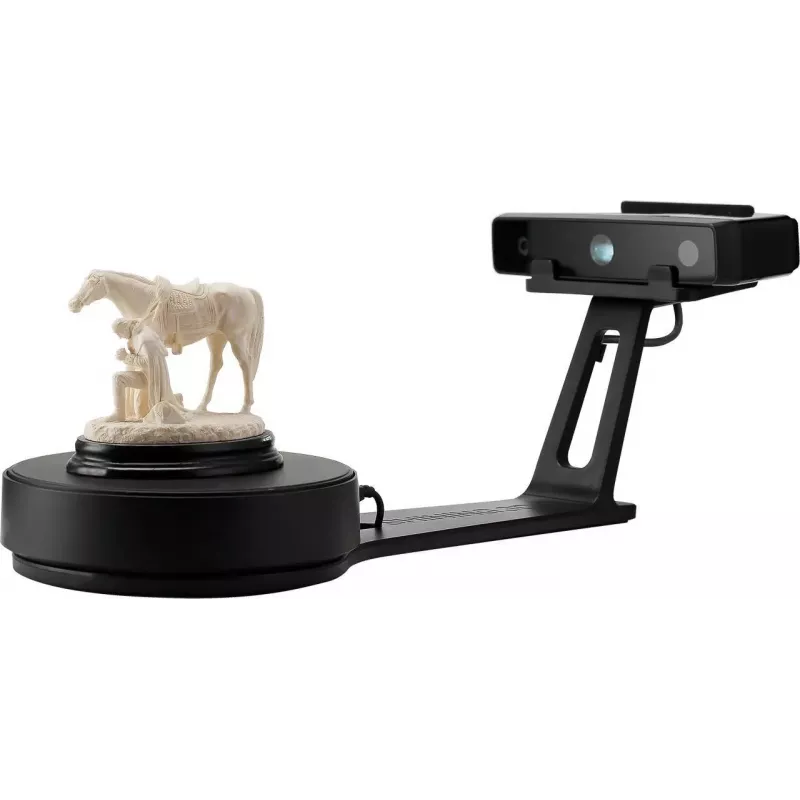

EINSCAN-SE V2 Shining 3D scanner (C9453)

The EINSCAN-SE V2 from SHINING 3D is a professional desktop 3D scanner designed for high-precision scanning of small to medium-sized objects. With dual scan modes and full-color texture capture, it delivers accurate and detailed 3D models for a wide range of applications including reverse engineering, quality inspection, and cultural heritage preservation.

Advantages

High accuracy up to 0.05 mm in fixed scan mode ensures reliable results. The automatic turntable enables hands-free scanning, while the included tripod provides stability. Full-color texture scanning captures realistic colors, making it ideal for digital archiving and design.

Suitable for

• Reverse engineering and product design
• Quality control and inspection
• Cultural heritage and artifact digitization
• Medical and dental modeling
• Education and research

Key specifications

• Scan Modes: Fixed Scan, Auto Scan
• Light Source: White Light LED
• Accuracy (Fixed Scan): Up to 0.05 mm
• Accuracy (Auto Scan): Up to 0.1 mm
• Minimum Scan Volume: 30 x 30 x 30 mm
• Maximum Scan Volume (Fixed Scan): 700 x 700 x 700 mm
• Maximum Scan Volume (Auto Scan): 200 x 200 x 200 mm
• Point Distance: 0.17 mm - 0.2 mm
• Scan Speed (Fixed Scan): 1 second (single scan)
• Scan Speed (Auto Scan): 45 seconds (one turn)
• Texture Scan: Yes (Full-color)
• Output Formats: OBJ, STL, ASC, PLY, P3
• Connectivity: USB 3.0
• Operating System Compatibility: Windows 7/8/10 (64-bit)
• Recommended CPU: Intel i7-8700 or higher
• Recommended GPU: NVIDIA GTX 1060 or higher
• Recommended RAM: 8 GB or more
• Calibration: Automatic
• Included Accessories: Turntable, Tripod
• Working Distance: 290 - 480 mm

Recommendations

For optimal performance, use a computer meeting the recommended specifications. The scanner is ideal for professionals seeking a reliable and accurate desktop 3D scanning solution.
