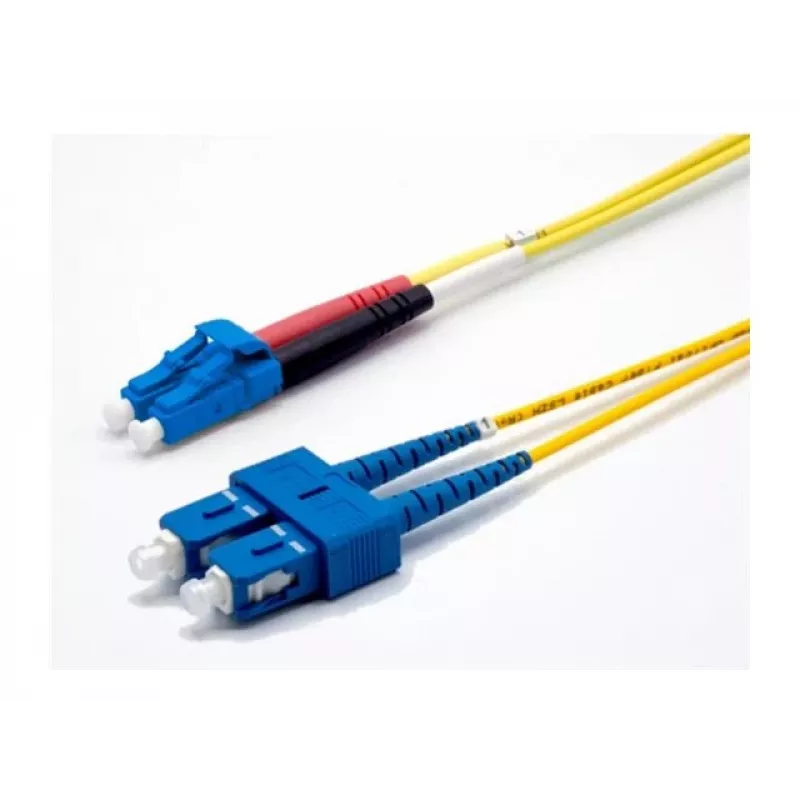

Ekivalan OS2 Duplex-patchkabel, 9/125 µm, LC/SC, geel, 10 m COZ008DCLC2SJ0100A

Experience minimal signal loss with this OS2 single-mode duplex patch cable, featuring a low insertion loss of ≤0.3 dB and a return loss of ≥50 dB for reliable high-speed data transmission.

Overview

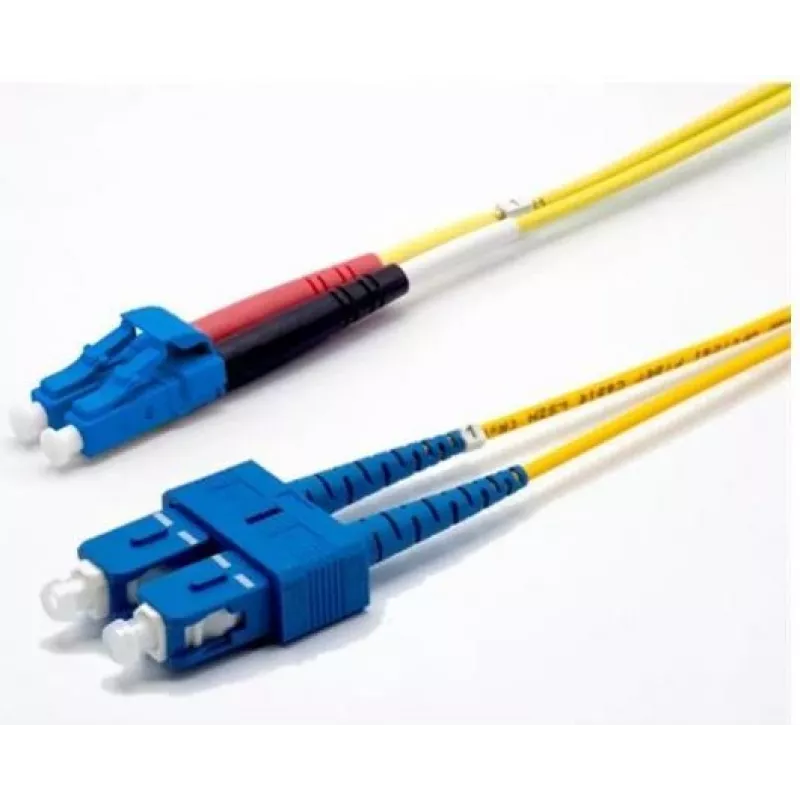

The Ekivalan COZ008DCLC2SJ0100A is a high-quality fibre optic patch cable designed for demanding network environments. It features LC to SC duplex connectors, a 9/125 µm OS2 single-mode fibre, and a yellow LSZH jacket for safety and durability. With a length of 10 metres, it provides flexibility in various installations.

What stands out

• Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure excellent signal integrity.
• LSZH (Low Smoke Zero Halogen) jacket enhances safety in case of fire.
• Zirconia ceramic ferrules provide precise alignment and durability.
• Supports wavelengths of 1310 nm and 1550 nm with low attenuation.

Technical details

• Fibre type: OS2 single-mode
• Core/cladding diameter: 9/125 µm
• Cable type: Duplex
• Connector 1: LC Duplex
• Connector 2: SC Duplex
• Cable length: 10 m
• Cable colour: Yellow
• Jacket material: LSZH
• Insertion loss (max): ≤0.3 dB
• Return loss (min): ≥50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation at 1310 nm: ≤0.35 dB/km
• Attenuation at 1550 nm: ≤0.25 dB/km
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Cable diameter: 3.0 mm
• Ferrule material: Zirconia ceramic
• Polarity: A-B (crossed)

Our verdict

A reliable and high-performance OS2 patch cable with excellent optical characteristics and a safety-focused LSZH jacket.
