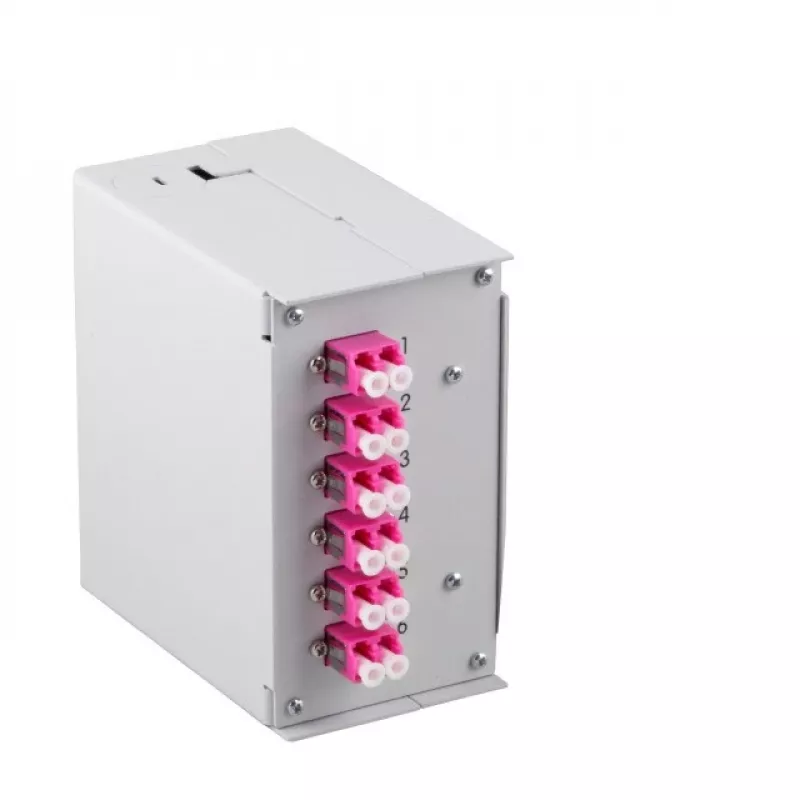

Elektrische behuizing EFB Elektronik 53705.1V3 grijs breedte 61 mm diepte 113 mm hoogte 115 mm

The EFB Elektronik 53705.1V3 electrical box is a fully assembled metal housing designed for DIN rail mounting. It measures 61 mm wide, 113 mm deep and 115 mm high and is finished in grey. The enclosure includes prepared cable entries at top and bottom for M20 gland installation and is supplied with mounting screws for the front panel.

Advantages

This metal electrical box provides robust protection for splice components and terminals while allowing straightforward DIN rail mounting. The prepared M20 cable entries simplify gland installation and the package includes essential accessories such as a splice cassette, a 12‑crimp splice holder and an aluminium DIN rail clip to support typical installation workflows.

Suitable for

• Termination and splicing of electrical cables in control panels
• Small electrical installations in residential or commercial buildings
• Mounting on standard DIN rails in distribution cabinets

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 53705.1V3
• EAN: 4049759115128
• Material: Metal housing
• Colour: Grey
• Dimensions (W×D×H): 61 × 113 × 115 mm
• Cable entries: Top and bottom, prepared for M20
• Includes: 1 splice distributor housing, 1 splice cassette, 1 splice holder for 12 crimp splices, 1 M20 cable gland, 1 aluminium DIN rail clip, screws for front panel
• Delivery state: Unassembled and without front panel

How to use

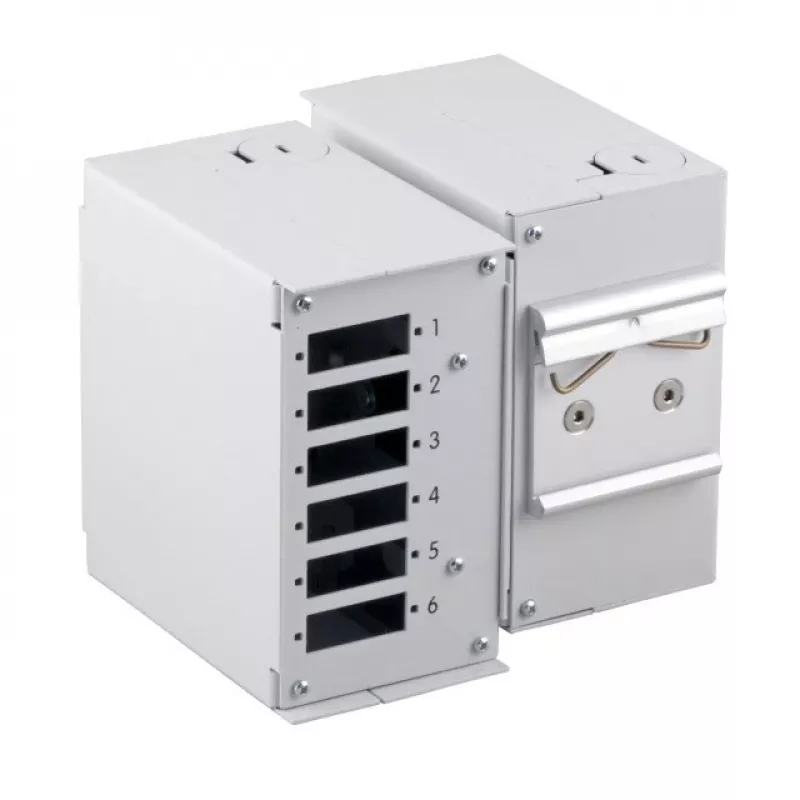

Mount the aluminium DIN rail clip to the enclosure and attach the housing to a standard DIN rail. Fit cable glands into the prepared M20 entries at top and/or bottom and route cables into the box. Install the splice cassette and the 12‑crimp splice holder to secure splices; an additional splice holder can be attached using double‑sided adhesive tape if required. Fasten the front panel using the supplied screws after completing connections.

Recommendations

For safe and reliable operation, ensure all cable glands and internal splices are tightened according to applicable standards and that the enclosure is mounted on a compatible DIN rail. The front panel is not included—use a compatible panel and follow local electrical installation regulations during assembly.
