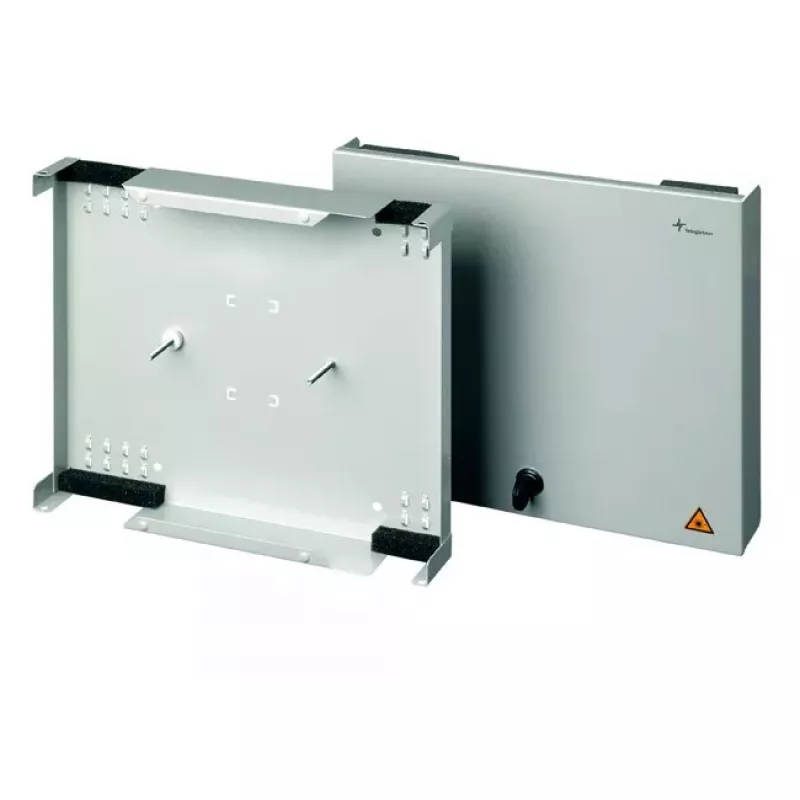

Elektrische verdeelkast Telegärtner H02050A0008

The Telegärtner H02050A0008 electrical distribution board is a compact enclosure designed for organized and safe electrical distribution. With external dimensions of 320 mm width, 50 mm depth and 280 mm height, this distribution board provides a space-efficient solution for routing circuits and protecting wiring in both residential and light commercial installations. The enclosure supports standard mounting and allows clear access for wiring and maintenance.

Advantages

The compact form factor reduces required wall space while maintaining sufficient internal volume for terminal blocks, breakers or modular components. The distribution board is made to facilitate straightforward installation and routine servicing, with a design that promotes clear cable routing and organized layout. Its dimensions and construction contribute to a reliable and durable housing for electrical components, minimizing clutter and improving safety around distribution points.

Suitable for

• Residential electrical distribution and small apartment panels
• Light commercial or office electrical installations
• Renovation projects where space is limited
• Utility rooms, service cupboards, and equipment cabinets

Key specifications

• Width: 320 mm
• Depth: 50 mm
• Height: 280 mm
• Enclosure type: compact wall-mounted distribution board
• Application: electrical distribution for residential and light commercial use
• Access: front-access for wiring and maintenance

How to use

Select an appropriate mounting location that provides secure fastening to a wall or cabinet and allows enough clearance for cable entry and servicing. Open the front access as provided by the enclosure design, mount internal components such as breakers, terminal blocks or DIN-rail modules following applicable electrical codes, and route incoming and outgoing conductors through the intended entry points. Ensure all connections are tightened to manufacturer torque values and that protective devices are installed according to circuit requirements. After wiring, verify that the enclosure is closed correctly to maintain protection and to prevent unauthorized access.

Recommendations

Install and commission the distribution board in accordance with local electrical regulations and standards. Use appropriate protective equipment and, if necessary, consult a qualified electrician for wiring, testing and certification. Avoid overcrowding the internal space with components that exceed recommended dimensions or heat dissipation limits.
