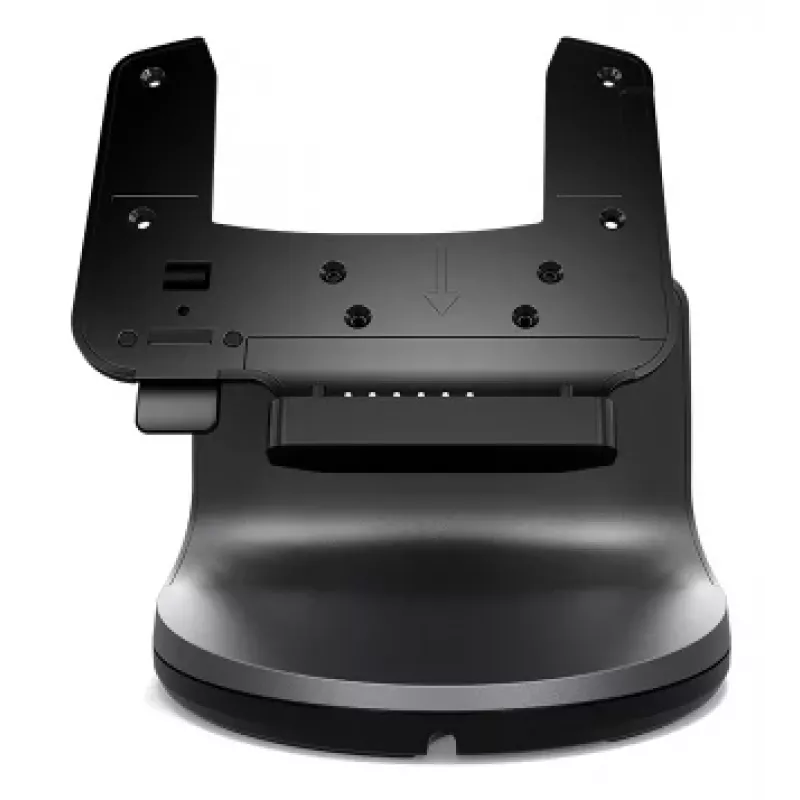

Elo M-Series POS-dockingstation voor 10/15 inch touch-terminals, USB, Ethernet, serieel, kassalade, zwart

Transform your Elo M-Series touch terminal into a full-featured point-of-sale system with this purpose-built docking station. Unlike generic USB hubs that clutter the counter and leave cables exposed, this dock snaps directly onto the base of Elo M-Series 1000 and 2000 terminals, creating a stable, integrated workstation. All peripheral connections route through a single, tidy cable path, keeping your POS area clean and professional.

Highlights

• Purpose-built for Elo M-Series 1000 and 2000 touch terminals (10-inch and 15-inch)
• Expands connectivity with 4x USB 2.0, 2x USB 3.0, 2x RS-232 serial, and Gigabit Ethernet
• Integrated RJ12 cash drawer port with selectable 12V/24V output
• Supplies power to the docked terminal, eliminating separate power bricks
• VESA 75mm mounting pattern and Kensington lock slot for flexible, secure installation

In daily use

The dock attaches directly to the M-Series terminal, creating a stable base that won't slide on the counter. All cables route through the integrated channel, so the back of the POS station stays clean and accessible. Cash drawers, barcode scanners, receipt printers, and customer-facing displays connect without adapters. The steel and high-grade plastic housing withstands constant use, while the black finish blends into any retail decor. The terminal remains powered through the dock, so one AC connection serves the entire setup.

Full specifications

• Host Interface: USB Type-B (connects to M-Series terminal)
• USB Ports (Downstream): 4x USB 2.0 Type-A, 2x USB 3.0 Type-A
• Serial Ports: 2x RS-232 (DB9)
• Ethernet Port: 1x Gigabit Ethernet (RJ45)
• Cash Drawer Port: 1x RJ12 (12V/24V selectable)
• Power Input: DC Power Jack
• Power Output: Provides power to the docked M-Series terminal
• Mounting Options: Desktop, VESA 75mm mountable
• Security Features: Kensington Lock Slot
• Color: Black
• Material: Steel and high-grade plastic construction
• Cable Management: Integrated cable routing
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 20% to 80% (non-condensing)
• Certifications: UL, cUL, FCC, CE, VCCI, RCM

Final note

Built to withstand the rigors of daily retail use, this docking station is the reliable backbone your Elo M-Series terminal deserves.
