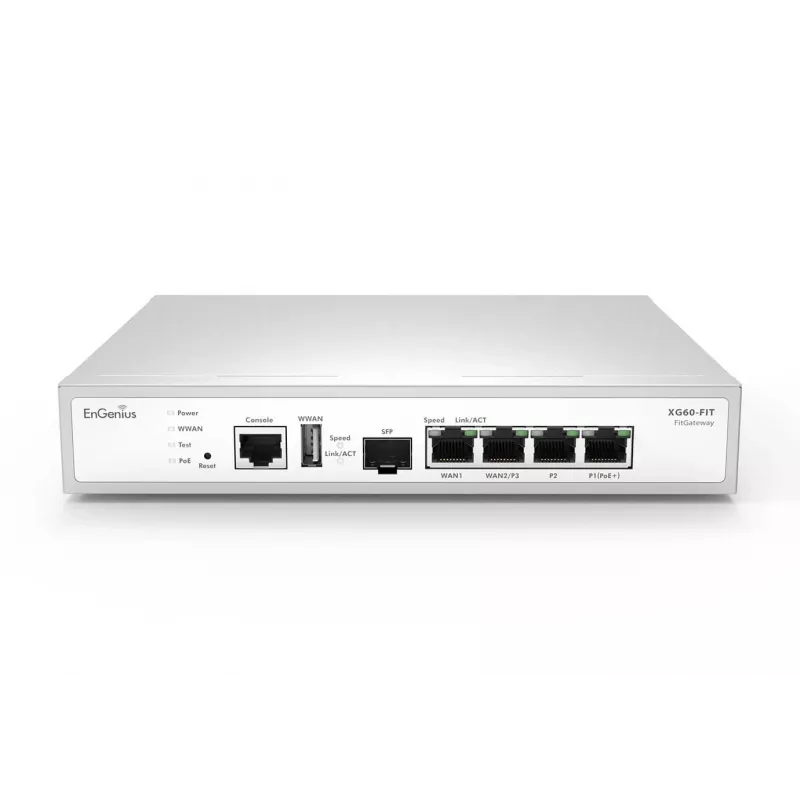

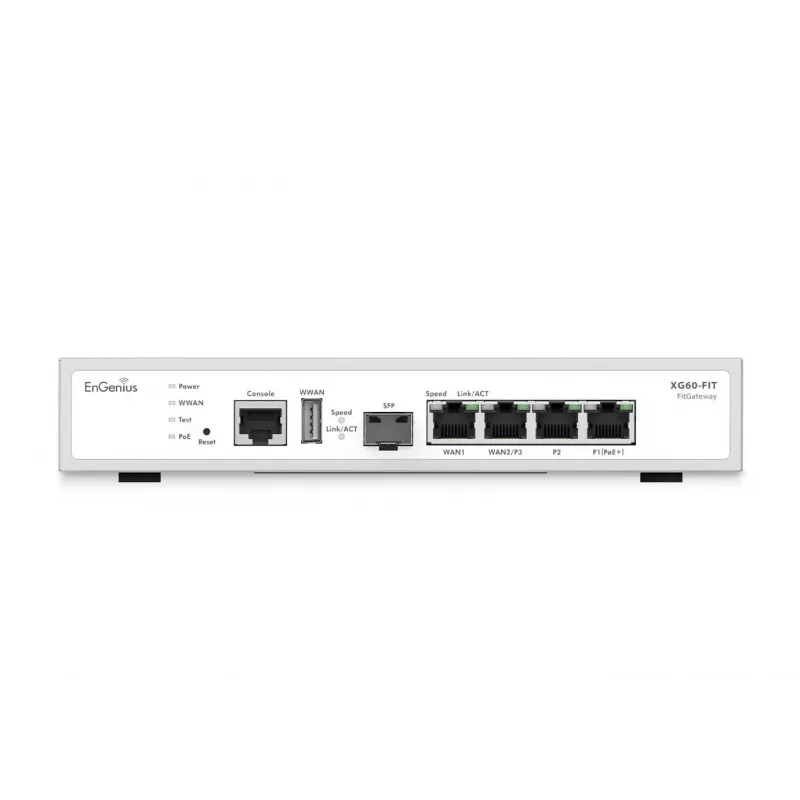

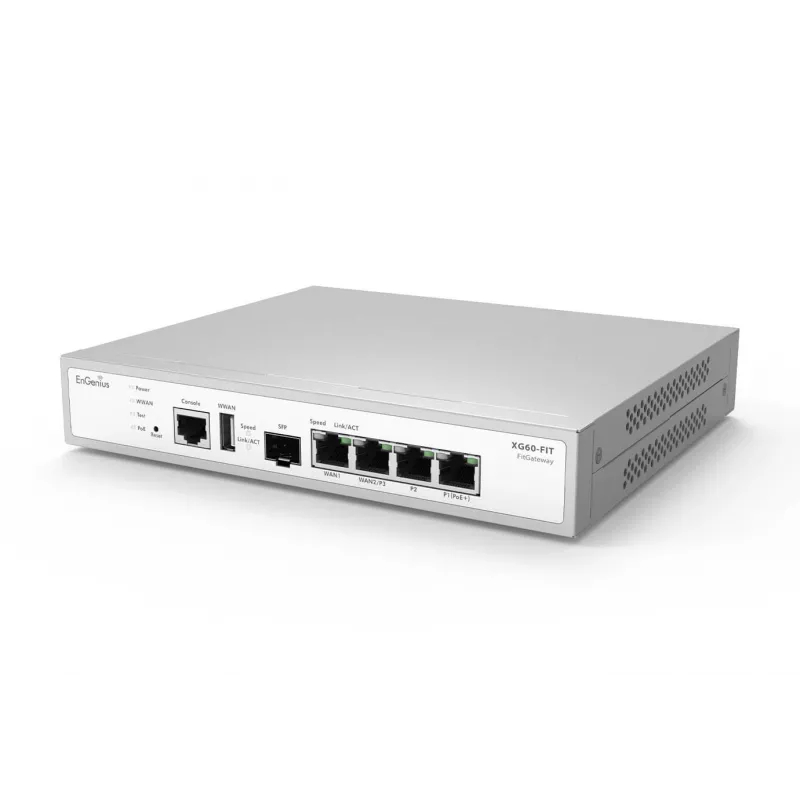

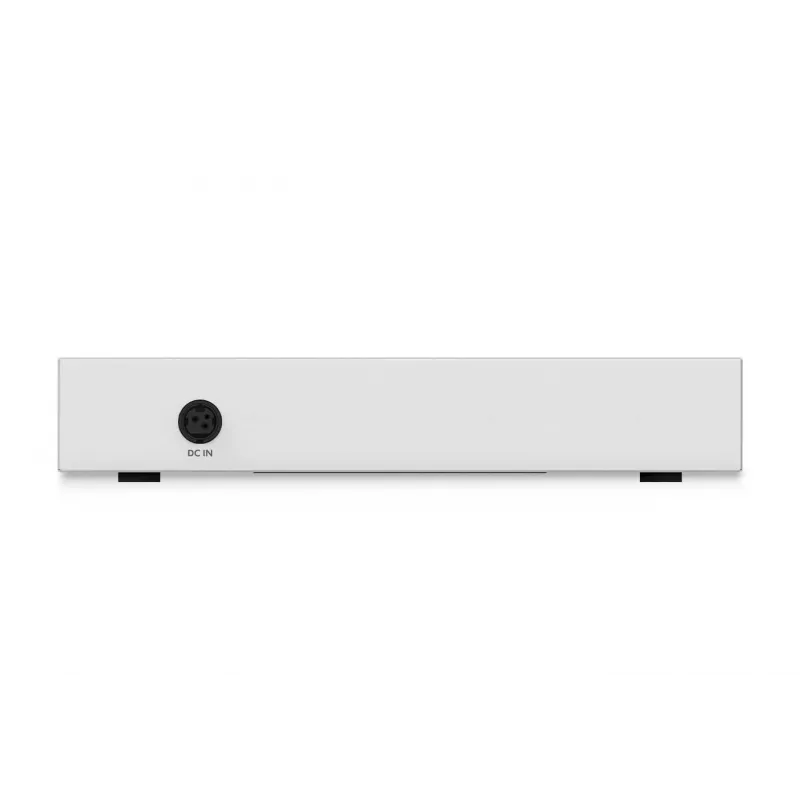

EnGenius FitXpress Managed Gateway 2 x GbE LAN & 2 x GbE WAN & 1 SFP-poort

EnGenius FitXpress Gateway XG60-FIT (FitGateway6 4G 1SFP) is a compact gateway designed for small and medium-sized businesses. It delivers up to 3 Gbit/s firewall throughput and 0.9 Gbit/s VPN throughput, supports four Gigabit Ethernet ports (one PoE+ capable) plus one SFP port, and can be managed centrally via the FitXpress cloud platform. The device includes 4096 MB internal memory and is intended for deployments of up to 50 users, offering load balancing, dual-WAN and site-to-site VPN functionality to improve network performance and security.

Advantages

The gateway provides high firewall and VPN throughput suitable for business use, unified remote management with FitXpress, and flexible WAN options including dual-WAN and load balancing. Its combination of Gigabit Ethernet ports, PoE+ capability on one port and an SFP uplink supports varied deployment scenarios, while support for IEEE 802.3af/at ensures compatibility with standard PoE devices.

Suitable for

• Small and medium-sized offices requiring secure internet gateway and VPN
• Remote or branch sites needing site-to-site VPN connections
• Environments that require PoE support for connected devices
• Setups that benefit from centralized FitXpress cloud management

Key specifications

• Model: XG60-FIT (FitGateway6 4G 1SFP)
• Firewall throughput: up to 3 Gbit/s
• VPN throughput: up to 0.9 Gbit/s
• Ports: 4 × Gigabit Ethernet (1 PoE+), 1 × SFP
• Memory: 4096 MB internal
• Processor clock: 2.1 MHz
• Supported users: up to 50
• Ethernet LAN data rates: 10/100/1000 Mbit/s
• Networking standards: IEEE 802.3af, IEEE 802.3at
• MPN: XG60-FIT, EAN: 4713361936494

How to use

Install the FitGateway6 in a suitable rack or on a stable surface and connect the ISP links to the WAN ports (configure dual-WAN or load balancing if using two uplinks). Attach local network devices to the Gigabit LAN ports and connect any fiber uplink to the SFP port. Power the device and access the FitXpress management portal to perform initial configuration, set firewall and VPN policies, and register the device for remote management.

Recommendations

For optimal performance, place the gateway in a ventilated area, keep firmware updated via FitXpress, and configure VPN and firewall rules according to your security policy. When using PoE devices, verify power budgets and compatibility with IEEE 802.3af/at standards.
