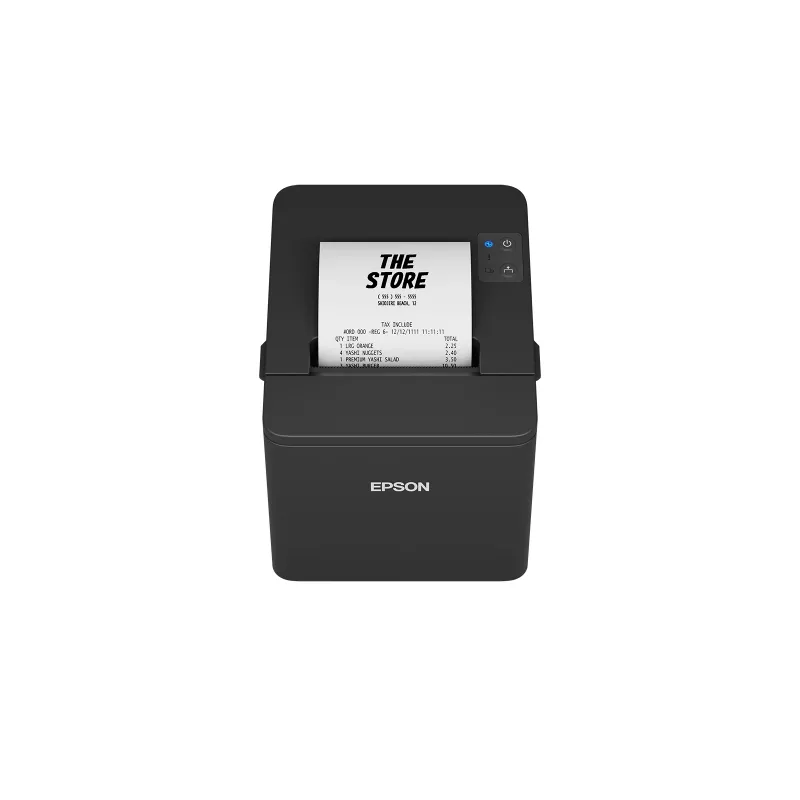

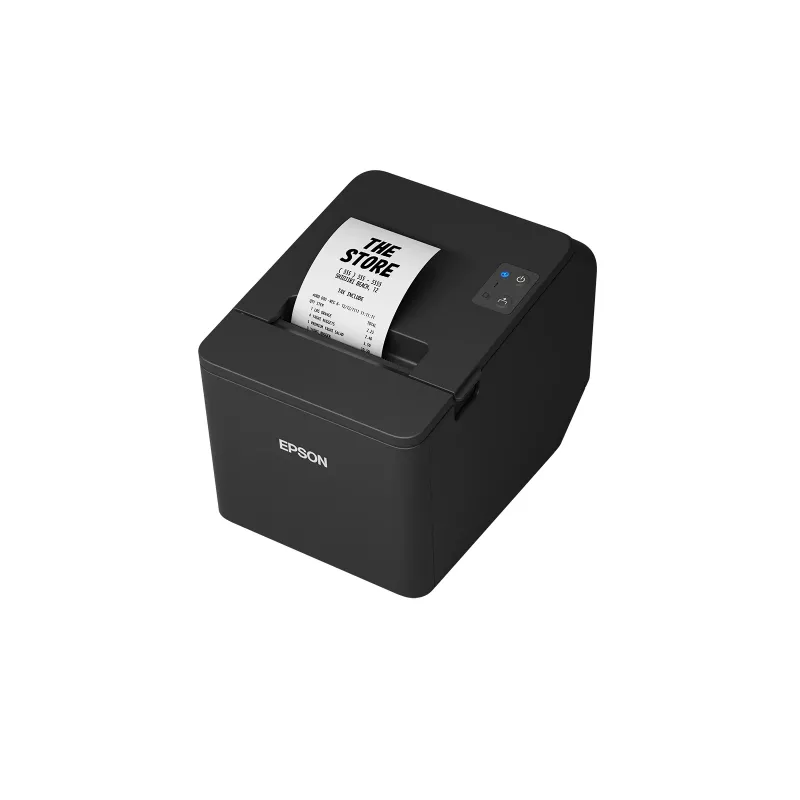

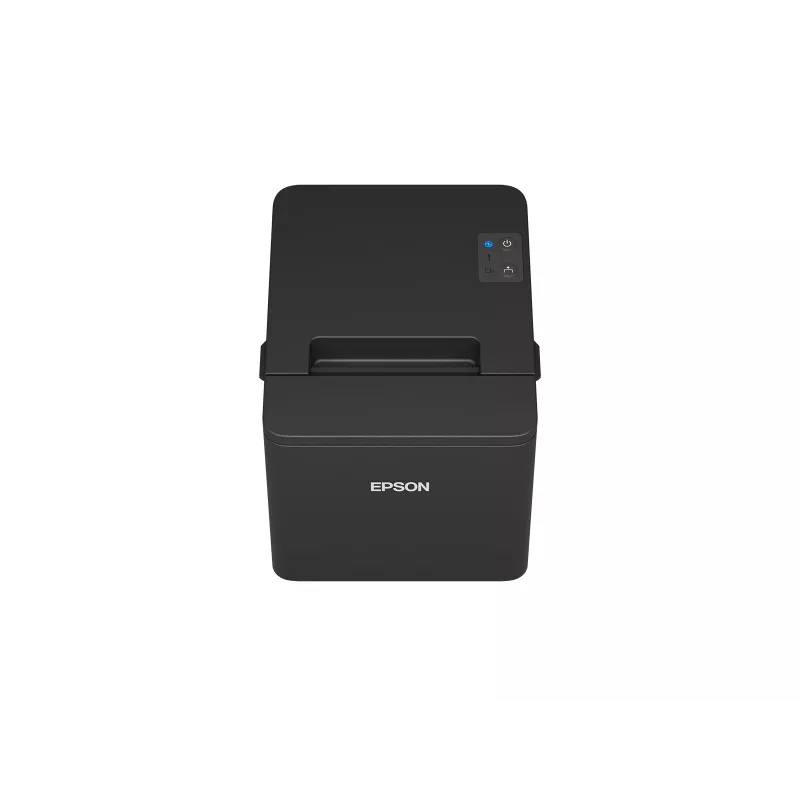

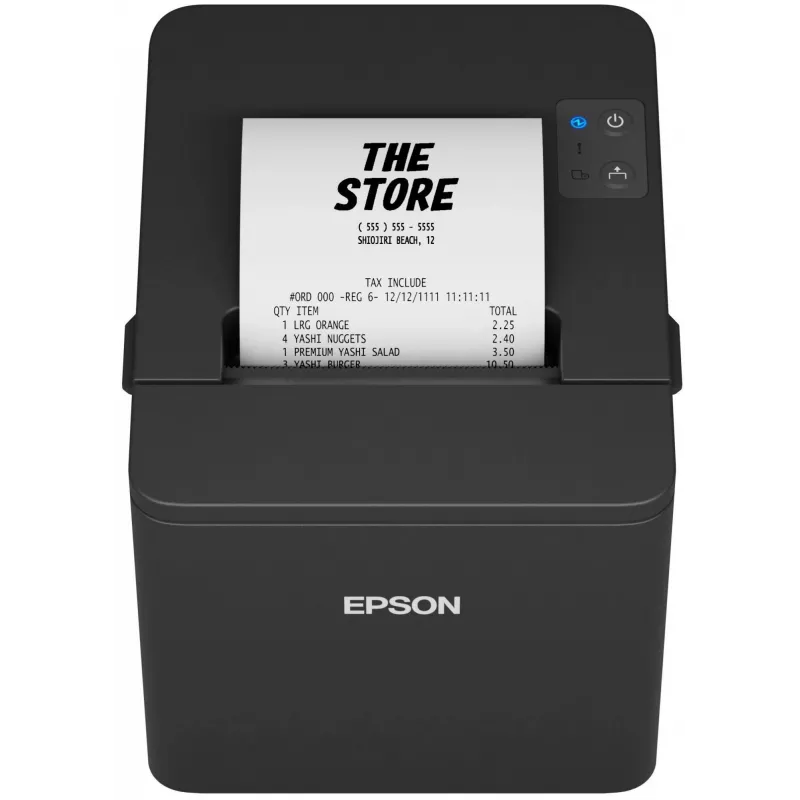

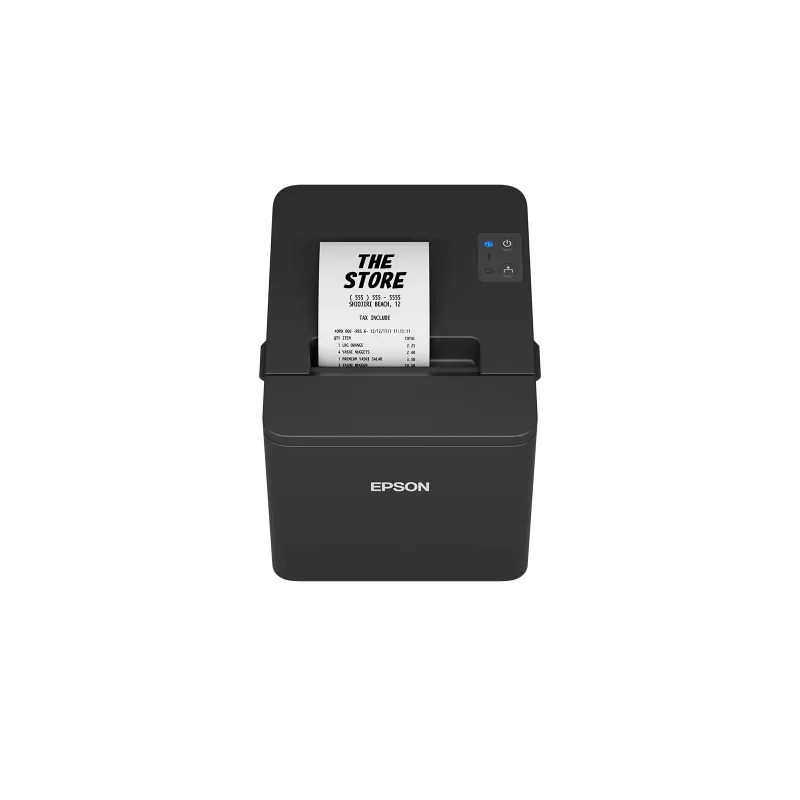

Epson TM-T20IV 203 x 203 DPI bedrade thermische bonprinter

The Epson TM-T20IV is a compact, wired thermal POS printer designed to balance speed, reliability and affordability for retail and hospitality environments. It delivers 203 x 203 DPI thermal receipts, supports 80 mm paper rolls with a maximum roll diameter of 83 mm, and offers built-in connectivity options including USB Type-A and RS-232 serial with models that also include Ethernet LAN for flexible integration into PC-POS and mPOS systems. The printer provides print speeds up to 250 mm/sec, a durable design with an MTBF of 360,000 hours, and comes with a 2-year limited warranty with optional extended service plans up to five years.

Advantages

The TM-T20IV combines fast printing performance and durability in a compact black housing, supporting common barcode types and multiple connectivity options (USB + serial or USB + serial + Ethernet). It achieves paper savings of up to 30% through efficient formatting, features an intuitive status LED for easy monitoring, and is suited to continuous POS use thanks to a long MTBF and available extended warranty coverage.

Suitable for

• Retail checkout counters
• Small and medium-sized restaurants and cafes
• Mobile POS setups that connect to fixed POS systems
• Ticketing and kiosks with wired network requirements

Key specifications

• Print technology: Thermal
• Resolution: 203 x 203 DPI
• Maximum print speed: 250 mm/sec
• Paper width: 80 mm
• Maximum roll diameter: 83 mm
• Connectivity: USB Type-A, RS-232 serial; models with Ethernet LAN available
• Product colour: Black
• Weight: 1.7 kg
• MTBF: 360,000 hours
• Manufacturer part number (MPN): C31CL47102

How to use

Install the TM-T20IV on a stable surface near the POS terminal and connect it using the appropriate cable (USB and serial; connect Ethernet if the model supports LAN). Load 80 mm thermal paper rolls with the thermal side facing the print head and ensure the roll diameter does not exceed 83 mm. After powering on, install the provided or latest Epson drivers on the connected POS system, configure paper size and interface settings in the POS software, and run a test print to confirm correct operation. Monitor the status LED for error or paper notifications and replace the paper roll as needed.

Recommendations

Use high-quality 80 mm thermal paper designed for receipt printing to ensure print longevity and reduce paper jams. Place the printer in a dry, dust-free location and avoid direct sunlight to preserve the print head. For high-volume environments enable paper-saving modes in the POS software when available, and consider an extended service plan for continuous coverage beyond the standard 2-year warranty.
